OMRON E2B-M18KS08-M1-C1 | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, NPN NO, M12 Connector

Name: OMRON E2B-M18KS08-M1-C1 | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, NPN NO, M12 Connector
Brand: OMRON
SKU: E2B-M18KS08-M1-C1
Availability: InStock

Part Number : E2B-M18KS08-M1-C1

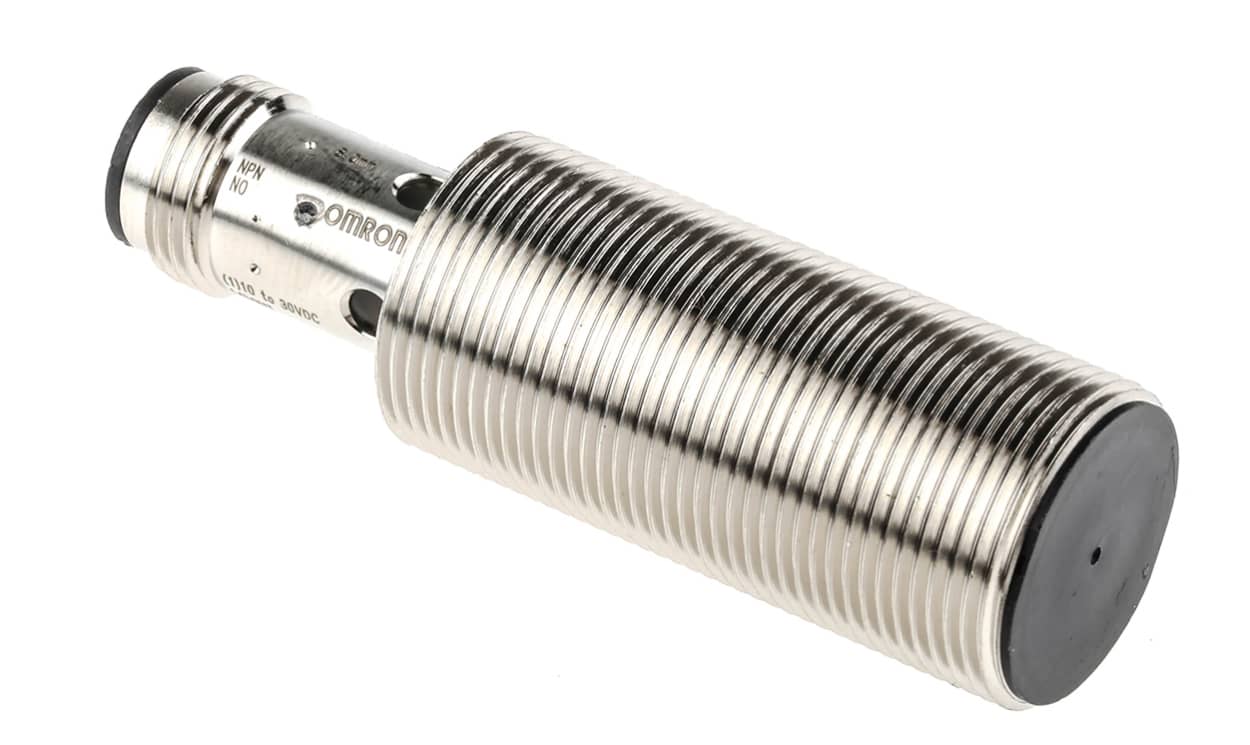

Supplied with an M12 plug-in connector, the OMRON E2B-M18KS08-M1-C1 is an inductive threaded-barrel proximity sensor that detects targets up to 8 mm away. It has an M18 threaded body and an NPN normally open (NO) output.

Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: quasi-flush
Switching frequency: 500 Hz
Housing length: 59 mm
Housing material: nickel-plated brass
Protection rating: IP67

Availability: low stock

Detailed Description
Specifications
Downloads

E2B Brass Standard Length

The E2B range of brass standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.

Features and benefits

IP67 rated for protection in wet environments

360 ° visible LED for operation control

Pre-wired and connector variations available

Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)

Standard temperature range –25°C to 70°C

Omron E2B Series Proximity Sensor, 8mm Detection Range, Threaded Barrel Style - E2B-M18KS08-M1-C1

This proximity sensor is an inductive device designed for automation applications. With a threaded barrel body style and a detection range of 8mm, this sensor operates effectively within an industrial environment. It features a robust brass housing with a nickel plating, providing durability and resistance against harsh conditions, while maintaining an IP67 rating for protection against dust and water.

Features & Benefits

• Functions with a supply voltage of 12 to 24V DC for versatility
• Offers a digital switching output type of NPN for precise control
• Provides reverse polarity and short circuit overload protection for enhanced safety
• Configured as a quasi-flush mount for seamless integration in machinery
• Superior shielding ensures reduced electrical interference in noisy environments
• Capable of operating in extreme temperatures ranging from -25 °C to +70 °C

Applications

• Used with automated machinery in manufacturing processes
• Ideal for detecting metal objects in conveyor systems
• Suitable for position sensing in assembly lines
• Utilised in packaging equipment to ensure product placement
• Employed in safety systems where object detection is critical

How does the operating temperature range affect performance?

It allows the sensor to function reliably in both cold and hot environments, making it suitable for diverse industrial applications without compromising accuracy.

What benefits does the shielded design provide in industrial settings?

The shielding reduces the risk of false readings caused by electromagnetic interference, ensuring consistent performance in challenging conditions.

Can this sensor be integrated into existing machinery?

Yes, its quasi-flush mount design allows for straightforward installation into various setups, making it easily adaptable for upgrades or replacements.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	M12
Supply Voltage	12 → 24 V dc
Length	59mm
IP Rating	IP67
Mounting Type	Quasi-Flush
Housing Material	Brass, Nickel Plated
Maximum DC Voltage	30V
Diameter	0.9 mm
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	500Hz
Reverse Polarity Protection	Yes
Switching Frequency	500 Hz
Series	E2B

OMRON E2B-M18KS08-M1-C1 | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, NPN NO, M12 Connector

DOWNLOAD CATALOG

E2B-M18KS08-M1-C1 Brochure - Inductive Proximity Sensors A700000013143142

E2B-M18KS08-M1-C1 Instruction Sheet - E2B Series A700000013143228
