OMRON E2B-M18KS08-WP-B1 5M | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NO, Cable

Name: OMRON E2B-M18KS08-WP-B1 5M | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NO, Cable
Brand: OMRON
SKU: E2B-M18KS08-WP-B1 5M
Availability: InStock

Part Number : E2B-M18KS08-WP-B1 5M

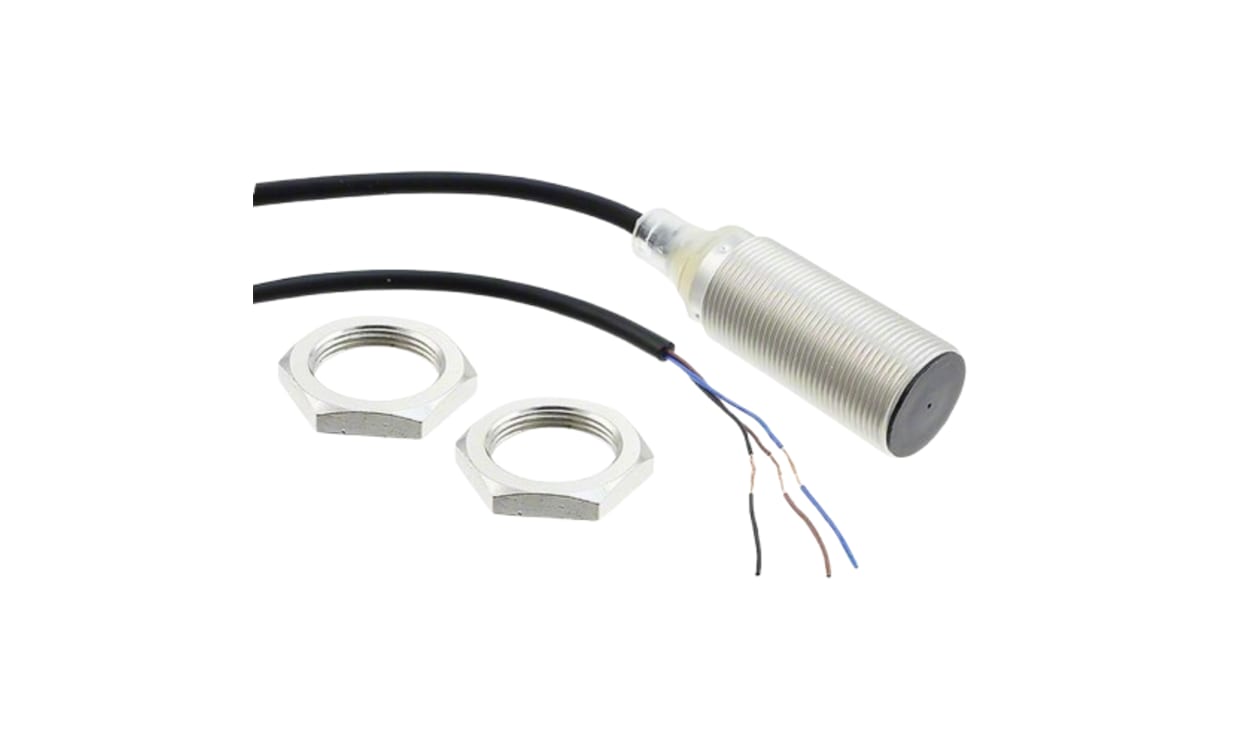

The OMRON E2B-M18KS08-WP-B1 5M is an inductive threaded-barrel proximity sensor with an M18 thread and an 8 mm sensing distance. It has a PNP normally open (NO) output and connects via a pre-wired cable.

Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: quasi-flush, shielded
Switching frequency: 500 Hz
Switching current: 200 mA
Housing length: 36 mm
Housing material: brass

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2B Series Proximity Sensor, 18mm Thread size, 8mm Detection Range - E2B-M18KS08-WP-B1 5M

This proximity sensor is an inductive sensor designed for automation and industrial applications. With a robust brass housing and a detection range of 8mm, it ensures precise sensing in various environments. Its quasi-flush mounting design facilitates easy installation, while the IP67 rating guarantees protection against dust and water ingress, making it suitable for harsh conditions.

Features & Benefits

• Operates on a supply voltage of 12 to 24 V DC for flexibility
• PNP output provides reliable signalling in automation systems
• Short circuit and reverse polarity protection enhance safety
• 5m cable length accommodates diverse installation needs
• Shielded design minimises interference and optimises performance

Applications

• Used in automated machinery for part detection
• Utilised in packaging and assembly line
• Ideal for position sensing in robotics and conveyor systems
• Applied in controlling workflows in industrial settings
• Suited for integration into various electronic control systems

What is the operational temperature range of this device?

The sensor can function effectively between -25°C and +70°C, which accommodates a wide range of environmental conditions.

How does the sensor maintain accuracy in detecting objects?

With a maximum switching frequency of 500Hz, it delivers precise detection of metallic objects within its sensing range of 8mm, ensuring efficient performance in various applications.

What protection features are included with this proximity sensor?

It includes reverse polarity and short circuit overload protection, which safeguards the sensor from potential damage caused by incorrect wiring or excessive current.

Is the sensor suitable for humid environments?

Yes, the IP67 rating assures that it remains protected against dust and can withstand moisture, making it ideal for wet industrial applications.

How can I install this proximity sensor?

The quasi-flush mounting design allows for straightforward installation, making it easy to integrate into existing equipment and systems.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Digital Switching Output Type	PNP
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
Length	36mm
IP Rating	IP67
Mounting Type	Quasi-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Diameter	M18
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	500Hz
Shielding	Shielded
Switching Current	200 mA

OMRON E2B-M18KS08-WP-B1 5M | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NO, Cable

DOWNLOAD CATALOG

E2B-M18KS08-WP-B1 5M Brochure - Inductive Proximity Sensors A700000014065511

E2B-M18KS08-WP-B1 5M Instruction Sheet - E2B Series A700000014066141
