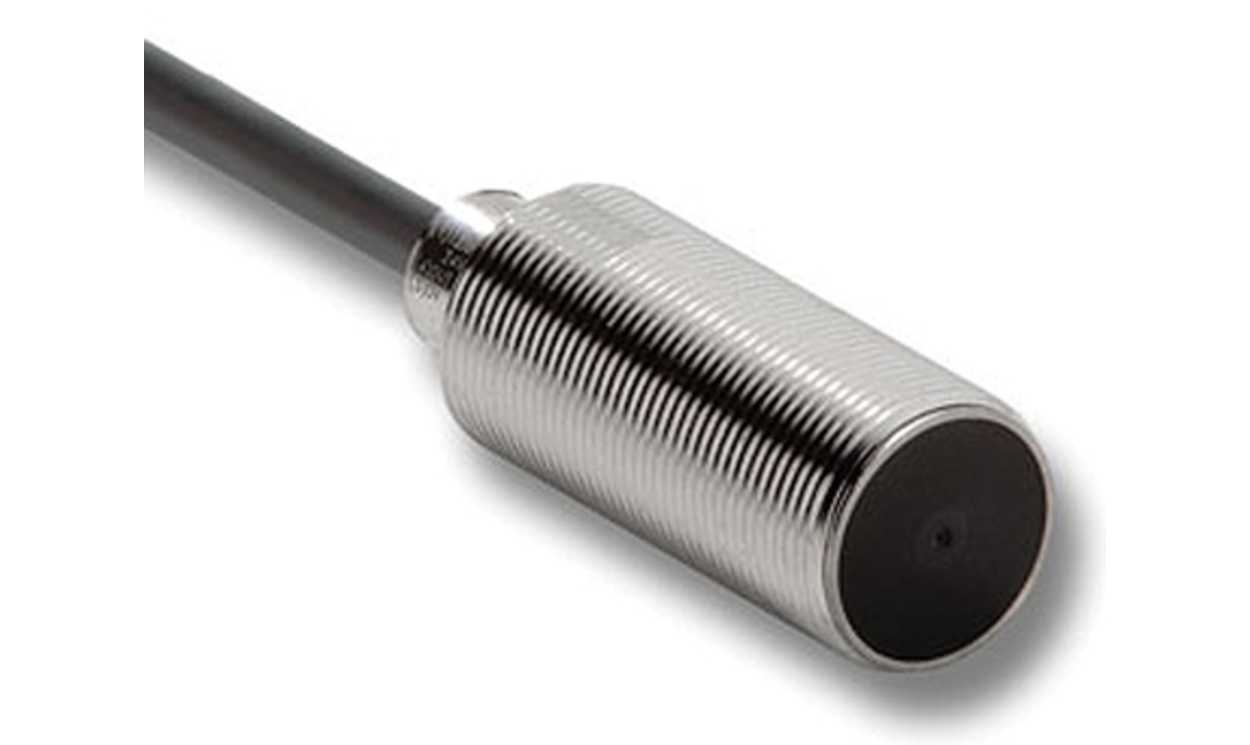

OMRON E2B-M18LS08-WP-B1 2M | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NO, 2 m Cable

Name: OMRON E2B-M18LS08-WP-B1 2M | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NO, 2 m Cable
Brand: OMRON
SKU: E2B-M18LS08-WP-B1 2M
Availability: InStock

Part Number : E2B-M18LS08-WP-B1 2M

With a sensing distance of 8 mm, the OMRON E2B-M18LS08-WP-B1 2M is an inductive threaded-barrel proximity sensor in an M18 housing. This version has a PNP normally open (NO) output and a pre-wired 2 m cable. It is listed as part of the E2B LITE range.

Type: DC, 3-wire
Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: flush, shielded
Switching frequency: 500 Hz
Switching current: 200 mA
Housing length: 58 mm (long body)

Availability: low stock

Detailed Description
Specifications
Features
Downloads

Omron E2B Series Proximity Sensor, Inductive Sensor Technology, 8mm Detection Range - E2B-M18LS08-WP-B1 2M

This proximity sensor is an essential component for automation and control systems. The sensor features a compact M18 threaded barrel design and operates on inductive technology to detect metallic objects within an 8mm range. With a pre-cabled configuration and an IP67 rating, it is engineered for reliable performance in industrial environments, capable of withstanding harsh conditions.

Features & Benefits

• Operates within a wide supply voltage of 12 to 24V DC
• Equipped with reverse polarity and short circuit protection
• Housing made from durable brass ensures longevity
• Supports PNP output, ideal for a range of applications
• Robust IP67 rating protects against dust and moisture
• Effective switching frequency of up to 500Hz

Applications

• Ideal for systems where precise metal detection is required
• Commonly used in assembly lines for object presence verification
• Suitable for in wet industrial environments
• Utilised in packaging machinery for operational safety checks
• Effective in robotics for proximity detection and control

What are the advantages of using this sensor's PNP output?

The PNP output allows for a sourcing type output, making it compatible with various control systems. This type of output can drive loads easily, simplifying wiring and connectivity within automation setups.

How does the IP67 rating benefit its operational reliability?

The IP67 rating signifies that the product is dust-tight and can withstand temporary immersion in water. This ensures it operates effectively in demanding environments, reducing the risk of failure due to moisture or particulate ingress.

What is the significance of the 8mm detection range?

The 8mm detection range enables precise measurement for close-proximity applications. This capability is critical in settings where accuracy in detecting metallic objects is essential, ensuring efficient operation of automated systems.

How does the reverse polarity protection work?

Reverse polarity protection prevents damage to the sensor if the supply voltage is incorrectly connected. This feature allows for easier installation and significantly enhances the sensor's reliability in various applications.

What types of applications benefit from its flush mounting capability?

Flush mounting is advantageous in applications requiring a low-profile installation, such as in tight spaces or machinery where protruding sensors might be susceptible to damage. This allows for improved integration in systems with space constraints.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Digital Switching Output Type	PNP
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
Length	58mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Frequency	500 Hz
Series	E2B
Switching Current	200 mA
Standards Met	CE, IEC 60529

Proximity sensor, LITE, inductive, nickel-brass, long body, M18, shielded, 8 mm, DC, 3-wire, PNP-NO, 2 m cable

OMRON E2B-M18LS08-WP-B1 2M | Inductive Threaded Barrel Proximity Sensor | M18, 8 mm, PNP NO, 2 m Cable

DOWNLOAD CATALOG

E2B-M18LS08-WP-B1 2M Brochure A700000009885692

E2B-M18LS08-WP-B1 2M Model E2B Instruction Sheet A700000009885720
