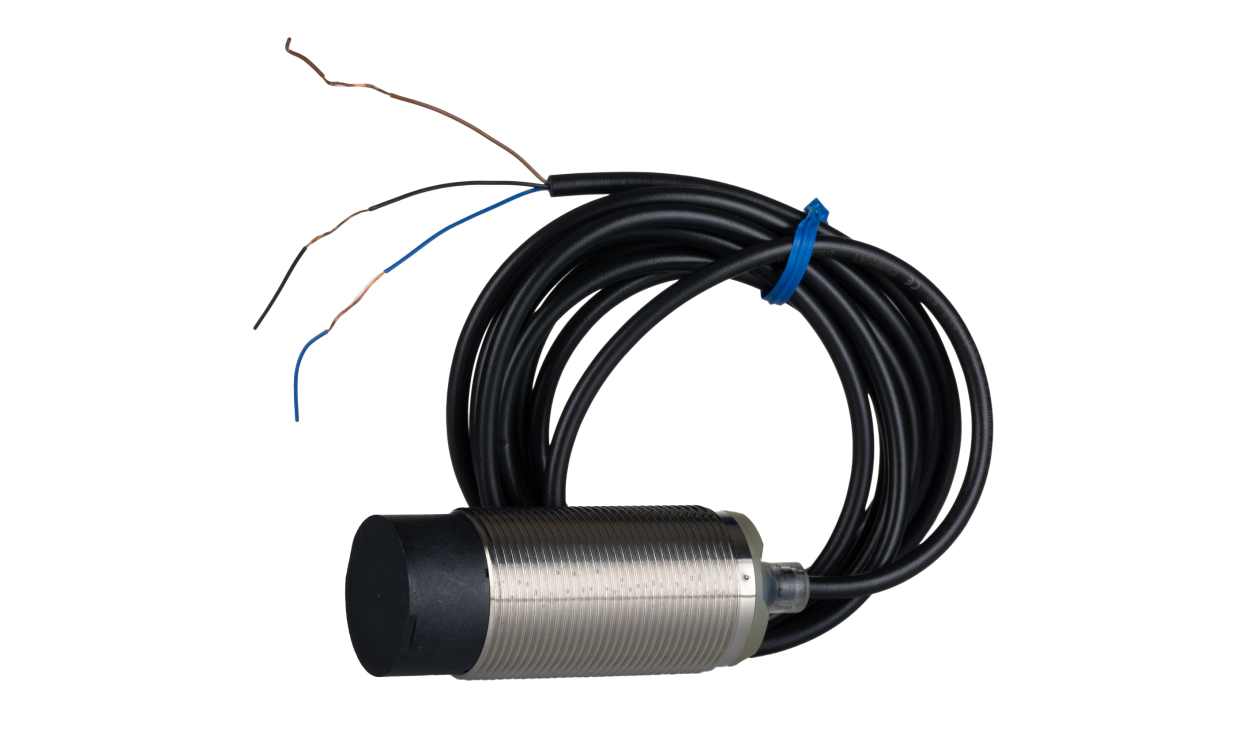

Name: Omron E2B-M30LN30-WP-B1 2M, Inductive Threaded Barrel Proximity Sensor, M30, 30 mm Detection, PNP NO, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M30LN30-WP-B1 2M
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E2B-M30LN30-WP-B1 2M, Inductive Threaded Barrel Proximity Sensor, M30, 30 mm Detection, PNP NO, 12 → 24 V dc

Part Number : E2B-M30LN30-WP-B1 2M

Availability: Sold out

Detailed Description
Specifications

Omron E2B Series Proximity Sensor, PNP Output, 30mm Detection Range - E2B-M30LN30-WP-B1 2M

This proximity sensor detects metal objects within a 30mm range, making it essential for automation across various industries. Its durable brass housing and IP67 rating ensure protection against dust and water ingress, enabling reliable operation in challenging environments and adding value to industrial applications.

Features & Benefits

• Operates within a temperature range of -25 to +70°C
• Facilitates easy installation with a pre-wired 2m cable
• Provides PNP output for integration with existing systems
• Ensures performance stability with short circuit protection
• The cylindrical design allows for installation in confined spaces
• Unshielded design suitable for non-flush mount applications

Applications

• Utilised in packaging machinery for process automation
• Applied in conveyor systems for object detection
• Incorporated in assembly lines for quality control
• Used in robotics for precise positioning
• Employed in metalworking machines for monitoring purposes

How does the sensor perform in harsh environments?

It operates effectively between -25°C and +70°C and is protected against water and dust with an IP67 rating.

Can it be mounted in any orientation?

Yes, its design accommodates flexible mounting in various positions without compromising performance.

What type of output does it provide?

The sensor features a PNP output compatible with numerous control systems.

Is it suitable for use with non-ferrous metals?

Detection range may diminish when identifying non-ferrous metals, as the sensor is optimised for ferrous objects.

Are there any specific installation requirements?

Ensure proper wiring as per the provided guidelines and verify the load connection to prevent damage during operation.

Brand	Omron
Thread Size	M30
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	30 mm
Output Function	NO
Digital Switching Output Type	PNP
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
Length	63mm
IP Rating	IP67
Mounting Type	Non-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Switching Frequency	100 Hz
Reverse Polarity Protection	Yes
Maximum Switching Frequency	100Hz
