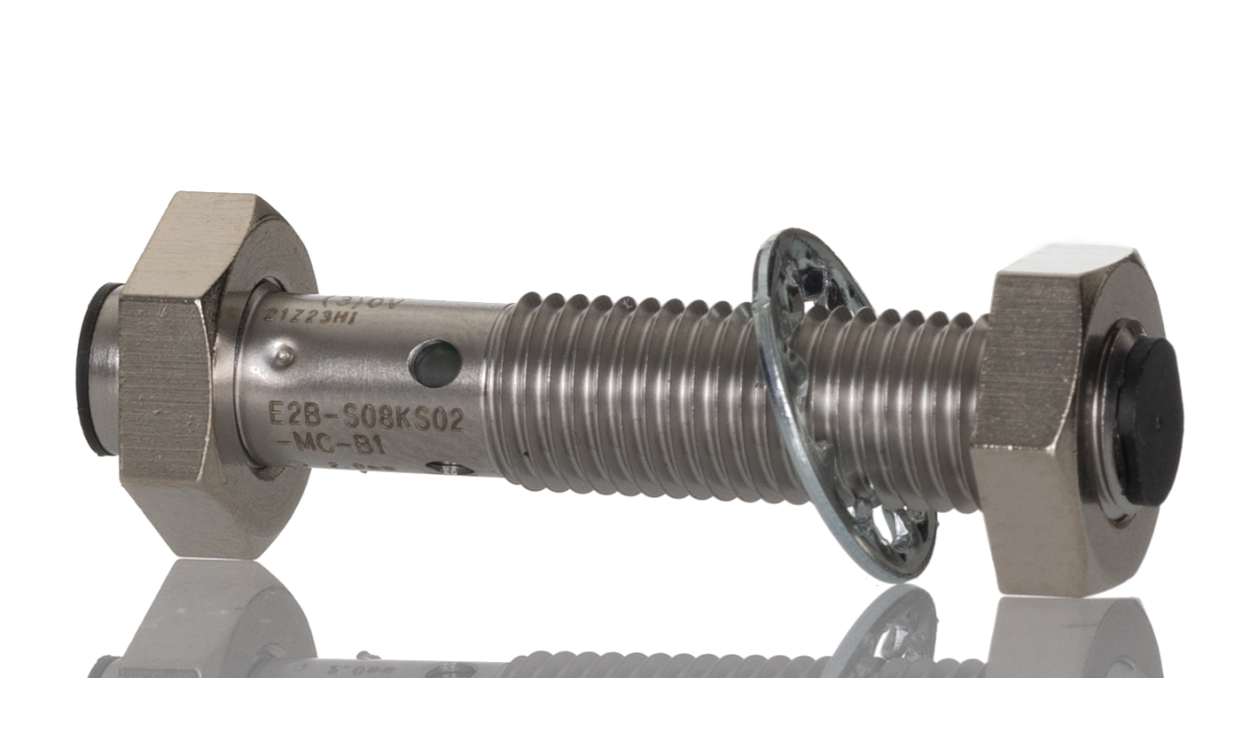

OMRON E2B-S08KS02-MC-B1 | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, PNP NO, M8 Connector

Name: OMRON E2B-S08KS02-MC-B1 | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, PNP NO, M8 Connector
Brand: OMRON
SKU: E2B-S08KS02-MC-B1
Availability: InStock

Part Number : E2B-S08KS02-MC-B1

This inductive threaded-barrel proximity sensor from OMRON, part number E2B-S08KS02-MC-B1, provides a PNP normally open (NO) output over a 2 mm detection range. It comes with an M8 body and an M8 3-pin plug-in connector. It is listed as a LITE model.

Type: DC, 3-wire
Supply voltage: 10 to 30 V DC
Mounting: flush, shielded
Switching frequency: 1.5 kHz
Switching current: 200 mA
Housing length: 44 mm (short body)

Availability: low stock

Detailed Description
Specifications
Features
Downloads

E2B Stainless Steel Standard Length

The E2B range of stainless steel standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.

IP67 rated for protection in wet environments
360 ° visible LED for operation Control
Pre-wired and connector variations available
Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)

OMRON Proximity Sensor, Flush Mounting, 200mA Switching Current - E2B Series - E2B-S08KS02-MC-B1

Don't let small objects slip under the radar. With this proximity sensor from OMRON, you can detect tiny parts throughout the manufacturing process. Its inductive design generates an electromagnetic field that picks up on ferrous metal objects at a 2mm distance. A 360° round visible LED gives you full control over operations. You can mount the sensor in the direction of your choice, with easy visibility even in dark locations. Thanks to a standard M8 three-pin terminal at one end, the sensor plugs in quickly.

Features & Benefits

• Easy-to-read code for rapid identification saves you time on the job
• Robust stainless steel body resists wear and corrosion in humid conditions
• Suitable for use in wet environments thanks to water-resistant IP67-rated protection
• Broad operating temperature range between -25°C and +70°C assures you reliable service in harsh industrial settings
• Short-circuit overload protection and surge suppressor stop energy spikes in their tracks

Applications

• Automation systems
• Electronics manufacturing
• R&D labs

What supply voltage does this proximity sensor need?

The unit uses a supply voltage between 12 and 24V DC for broad compatibility with common power sources.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	2 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M8
Supply Voltage	10 → 30 V dc
Length	44mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	200 mA
Maximum Switching Frequency	1.5kHz
Shielding	Shielded
Maximum Operating Temperature	+70°C
Switching Frequency	1.5 kHz

Proximity sensor, LITE, inductive, stainless steel, short body, M8, shielded, 2 mm, DC, 3-wire, PNP-NO, M8 plug-in (3 pin)

OMRON E2B-S08KS02-MC-B1 | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, PNP NO, M8 Connector

DOWNLOAD CATALOG

E2B-S08KS02-MC-B1 E2B Series Instruction Sheet A700000010005905

E2B-S08KS02-MC-B1 Inductive Proximity Sensors Brochure A700000010005933
