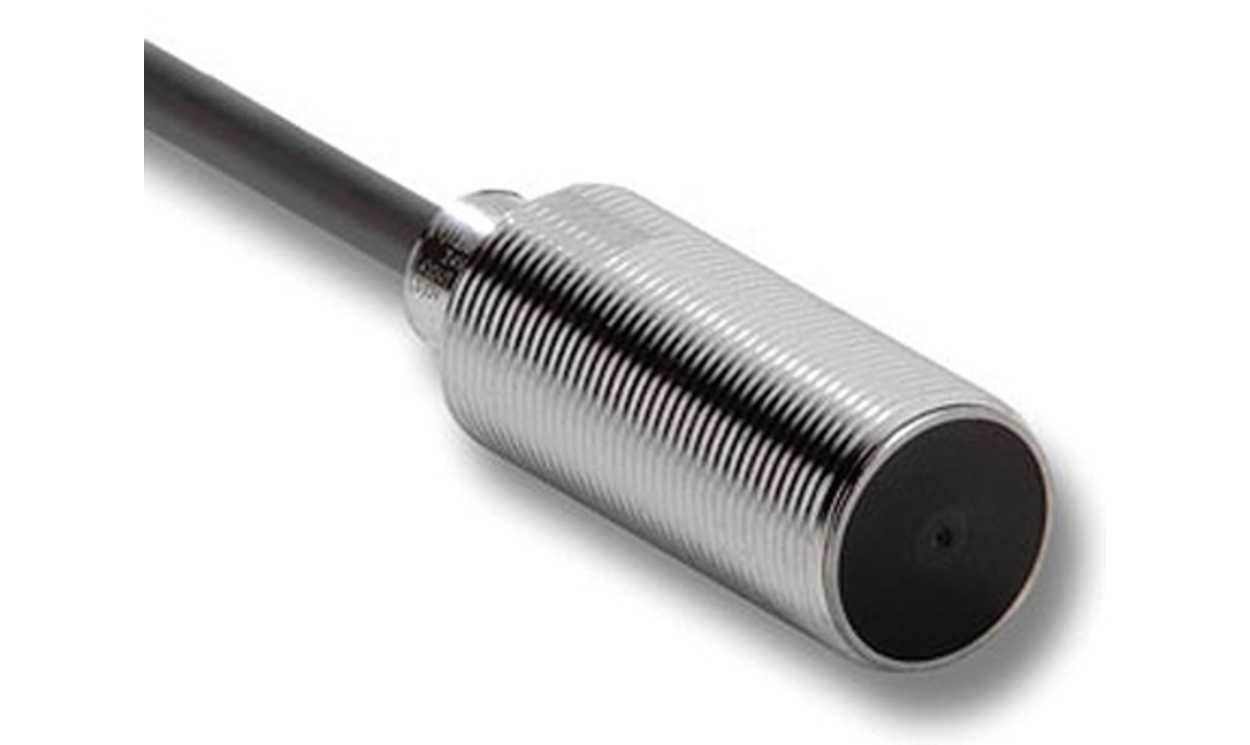

OMRON E2B-S08KS02-WP-C1 2M | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, NPN NO, 2 m Cable

Name: OMRON E2B-S08KS02-WP-C1 2M | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, NPN NO, 2 m Cable
Brand: OMRON
SKU: E2B-S08KS02-WP-C1 2M
Availability: InStock

Part Number : E2B-S08KS02-WP-C1 2M

With a sensing distance of 2 mm, the OMRON E2B-S08KS02-WP-C1 2M is an inductive threaded-barrel proximity sensor in an M8 housing. This version has an NPN normally open (NO) output and a pre-wired 2 m cable. It is listed as a LITE model.

Type: DC, 3-wire
Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: flush, shielded
Switching frequency: 1.5 kHz
Switching current: 200 mA
Housing length: 27 mm (short body)

Availability: low stock

Detailed Description
Specifications
Features
Downloads

E2B Stainless Steel Standard Length

The E2B range of stainless steel standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.

IP67 rated for protection in wet environments
360 ° visible LED for operation Control
Pre-wired and connector variations available
Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	2 mm
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
Length	27mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Maximum Switching Frequency	1.5kHz
Shielding	Shielded
Switching Current	200 mA

Proximity sensor, LITE, inductive, stainless steel, short body, M8, shielded, 2 mm, DC, 3-wire, NPN-NO, 2 m cable
