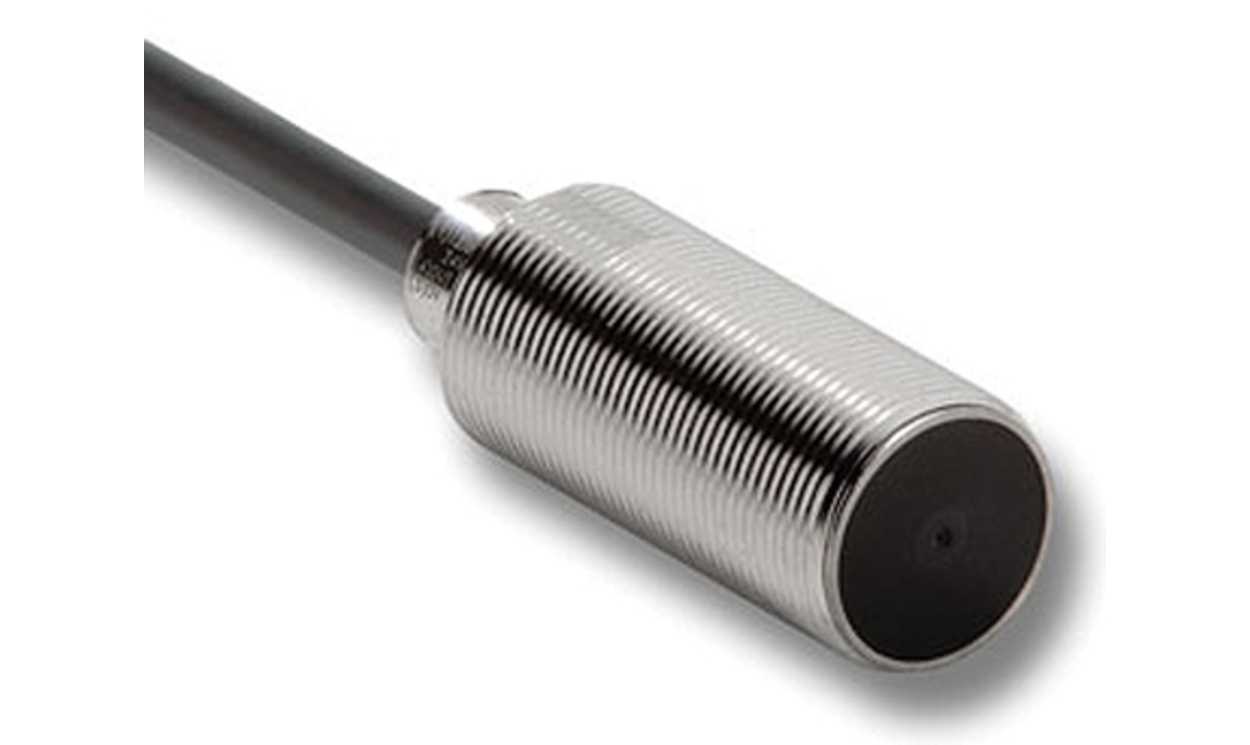

OMRON E2B-S08KS02-WP-C2 2M | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, NPN NC, 2 m Cable

Name: OMRON E2B-S08KS02-WP-C2 2M | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, NPN NC, 2 m Cable
Brand: OMRON
SKU: E2B-S08KS02-WP-C2 2M
Availability: InStock

Part Number : E2B-S08KS02-WP-C2 2M

OMRON E2B-S08KS02-WP-C2 2M: M8, 2 mm range, NPN-NC inductive threaded-barrel proximity sensor. Wiring is by pre-wired 2 m cable, with a 12 to 24 V DC supply. Further details: short-circuit/overload and reverse polarity protection.

Mounting: flush
Switching frequency: 1.5 kHz
Housing length: 27 mm
Housing material: stainless steel
Protection rating: IP67
Minimum operating temperature: -25 °C

Availability: low stock

Detailed Description
Specifications

E2B Stainless Steel Standard Length

The E2B range of stainless steel standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.

IP67 rated for protection in wet environments
360 ° visible LED for operation Control
Pre-wired and connector variations available
Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Detection Range	2 mm
Body Style	Threaded Barrel
Digital Switching Output Type	NPN
Output Function	NC
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
Length	27mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Frequency	1.5 kHz
Reverse Polarity Protection	Yes
Maximum Switching Frequency	1.5kHz
Short Circuit Overload Protection	Yes
