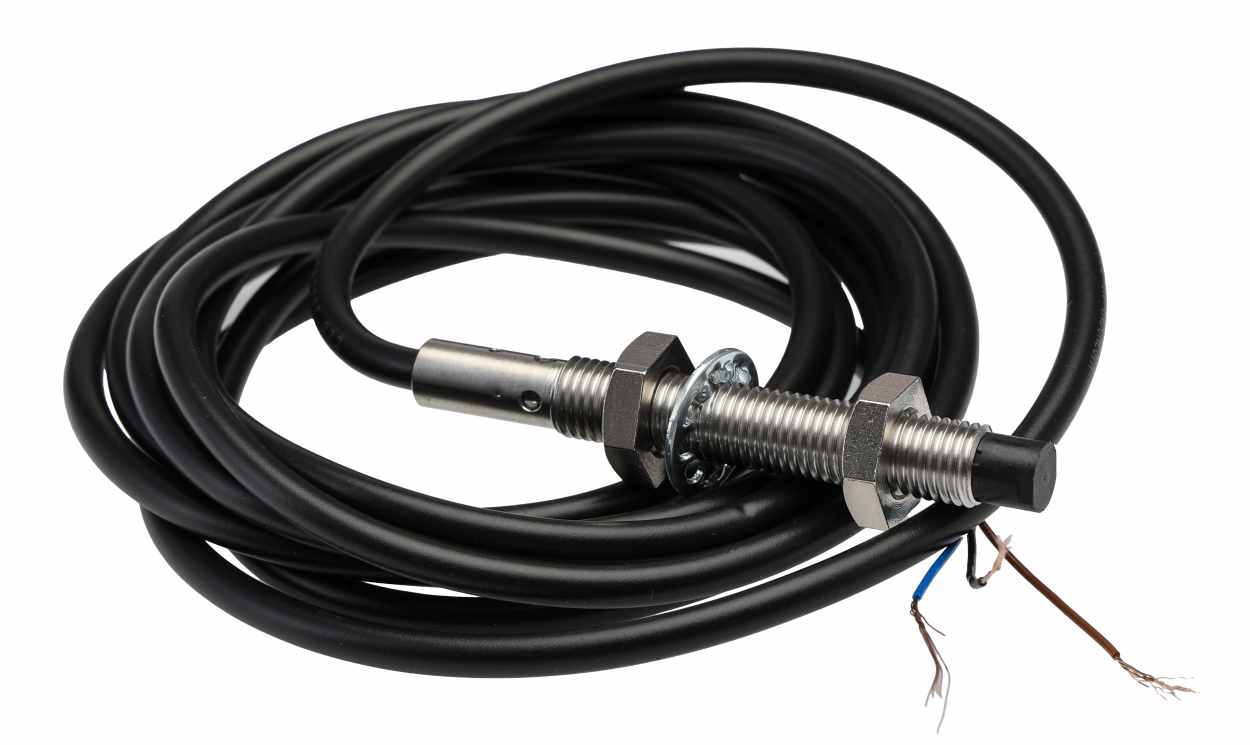

OMRON E2B-S08LN04-WP-B1 2M | Inductive Threaded Barrel Proximity Sensor | M8, 4 mm, PNP NO, 2 m Cable

Name: OMRON E2B-S08LN04-WP-B1 2M | Inductive Threaded Barrel Proximity Sensor | M8, 4 mm, PNP NO, 2 m Cable
Brand: OMRON
SKU: E2B-S08LN04-WP-B1 2M
Availability: InStock

Part Number : E2B-S08LN04-WP-B1 2M

Supplied with a pre-wired 2 m cable, the OMRON E2B-S08LN04-WP-B1 2M is an inductive threaded-barrel proximity sensor that detects targets up to 4 mm away. It has an M8 threaded body and a PNP normally open (NO) output. It is listed as part of the E2B LITE range.

Type: DC, 3-wire
Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: non-flush, unshielded
Housing length: 64 mm (long body)
Housing material: stainless steel
Protection rating: IP67

Availability: low stock

Detailed Description
Specifications
Features
Downloads

E2B Stainless Steel Long Body

The E2B range of stainless steel long bodied cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.

IP67 rated for protection in wet environments
360 ° visible LED for operation Control
Pre-wired and connector variations available
Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)

Omron E2B Series Proximity Sensor, 4mm Detection Range, M8 Thread size - E2B-S08LN04-WP-B1 2M

This proximity sensor is designed for various automation applications within electrical and mechanical industries. With sturdy dimensions, it features a length of 64mm and a diameter of 0.85mm. The sensor employs inductive technology, enabling reliable detection at a range of up to 4mm. Thanks to its IP67 rating, it offers protection against dust and water, ensuring durability in harsh environments. The device is equipped with a 2m pre-cabled connection for straightforward installation and use.

Features & Benefits

• Inductive technology ensures high sensitivity for accurate detection
• PNP output provides compatibility with various control systems
• Stainless steel housing enhances resistance to corrosion and damage
• Operating temperature range from -25°C to +70°C supports diverse conditions
• Reverse polarity and short circuit overload protection enhance safety
• Unshielded design allows for effective use in clean environments

Applications

• Used in automation for precise object detection
• Ideal for controlling machinery and equipment in manufacturing
• Suitable for non-flush mounting in compact spaces
• Applied in assembly lines where space is limited
• Utilised in packaging systems for reliable performance

How does the sensor handle adverse environmental conditions?

The IP67 rating guarantees protection against dust ingress and water immersion, making it suitable for challenging environments.

What is the benefit of using a PNP output?

A PNP output is advantageous as it facilitates connection to various PLCs and control systems, allowing for flexible integration into existing setups.

Can this sensor operate in low temperatures?

Yes, it functions effectively in temperatures as low as -25°C, making it reliable in colder applications.

What is the significance of the non-flush installation?

Non-flush mounting allows for effective detection of objects without the need for deep installation, offering flexibility in various applications.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	64mm
Mounting Type	Non-Flush
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Diameter	0.9 mm
Minimum Operating Temperature	-25°C
Reverse Polarity Protection	Yes
Short Circuit Overload Protection	Yes
Series	E2B

Proximity sensor, LITE, inductive, stainless steel, long body, M8, unshielded, 4 mm, DC, 3-wire, PNP-NO, 2 m cable
