Omron E2B-S08LS02-MC-B1, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP NO, 10 → 30 V dc

Name: Omron E2B-S08LS02-MC-B1, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP NO, 10 → 30 V dc
Brand: OMRON
SKU: E2B-S08LS02-MC-B1
Availability: OutOfStock

Part Number : E2B-S08LS02-MC-B1

Proximity sensor, LITE, inductive, stainless steel, long body, M8, shielded, 2 mm, DC, 3-wire, PNP-NO, M8 plug-in (3 pin)

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

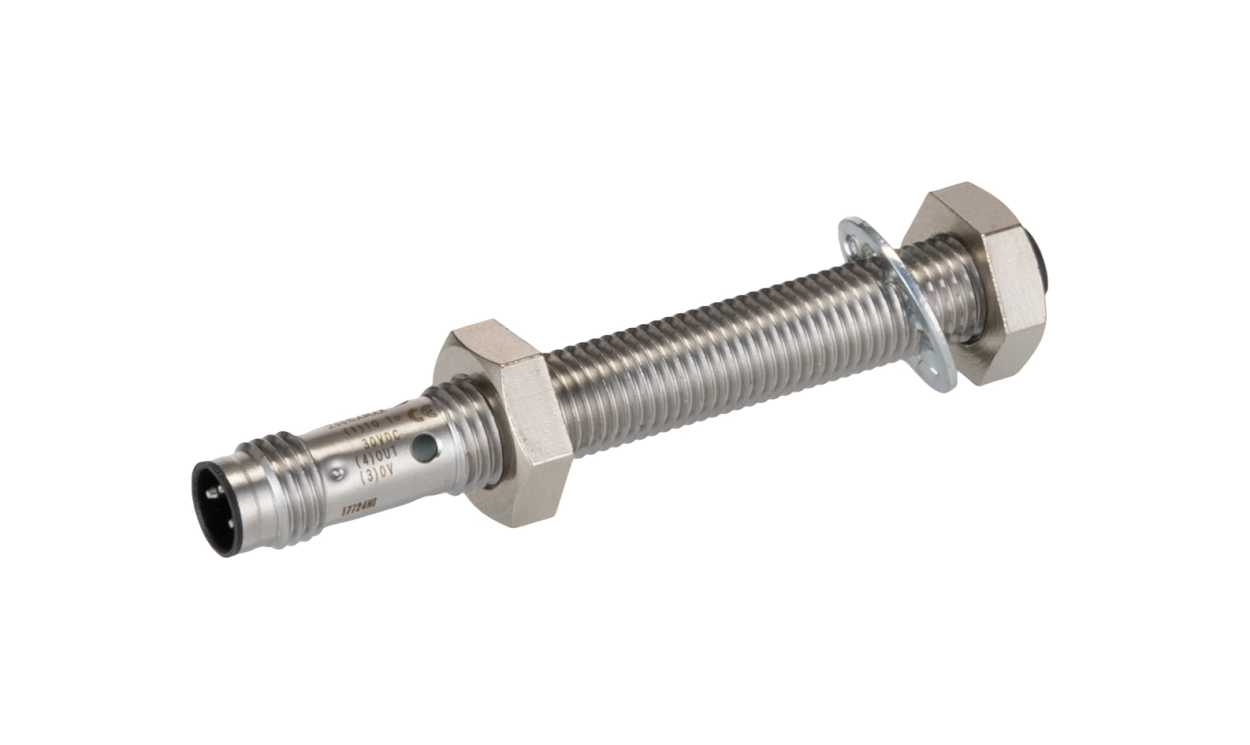

Omron E2B Series Proximity Sensor, 2mm Detection Range, IP67 - E2B-S08LS02-MC-B1

This proximity sensor serves an important role in automation, designed for effective detection in industrial settings. The E2B series boasts a compact M8 threaded barrel with a detection range of 2mm, featuring a robust stainless steel housing capable of withstanding harsh conditions. It has an IP67 rating for dust and water resistance, providing durability in challenging environments.

Features & Benefits

• Compact M8 design fits in limited spaces
• High-frequency capability supports 1kHz switching
• Stainless steel body ensures longevity and corrosion resistance
• Shielded design reduces interference in noisy environments
• IP67 rating protects against dust and water ingress
• Digital switching output (PNP) allows flexible connectivity

Applications

• Suitable for assembly line automation
• Ideal for use in packaging machinery
• Employed in robotics for accurate object detection
• Applicable in material handling systems
• Utilised for monitoring conveyor belts

Can it operate in extreme temperatures?

Yes, it functions between -25°C and +70°C.

Will it work reliably in wet conditions?

Yes, it has an IP67 rating for water resistance.

Is it easy to install in challenging environments?

Yes, the compact design facilitates installation in tight spaces.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	2 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M8
Supply Voltage	10 → 30 V dc
Length	66mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Shielding	Shielded
Switching Frequency	1 kHz
Series	E2B
Maximum Operating Temperature	+70°C
Switching Current	200 mA

Proximity sensor, LITE, inductive, stainless steel, long body, M8, shielded, 2 mm, DC, 3-wire, PNP-NO, M8 plug-in (3 pin)

Omron E2B-S08LS02-MC-B1, Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, PNP NO, 10 → 30 V dc

DOWNLOAD CATALOG

E2B-S08LS02-MC-B1 Instruction Sheet - E2B Series A700000012598735
