OMRON E2B-S08LS02-WP-B2 2M | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, PNP NC, 2 m Cable

Name: OMRON E2B-S08LS02-WP-B2 2M | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, PNP NC, 2 m Cable
Brand: OMRON
SKU: E2B-S08LS02-WP-B2 2M
Availability: InStock

Part Number : E2B-S08LS02-WP-B2 2M

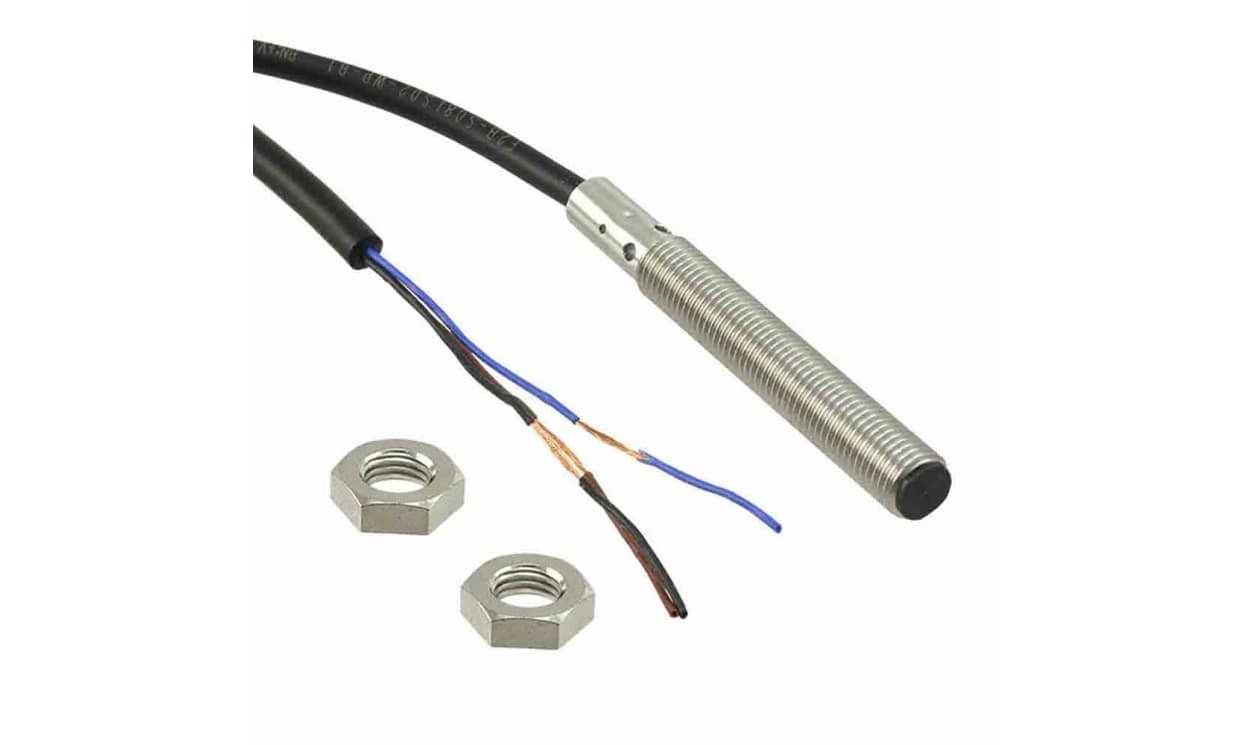

The OMRON E2B-S08LS02-WP-B2 2M is an inductive threaded-barrel proximity sensor with an M8 thread and a 2 mm sensing distance. It has a PNP normally closed (NC) output and connects via a pre-wired 2 m cable.

Supply voltage: 10 to 30 V DC
Mounting: flush
Switching frequency: 1 kHz
Switching current: 200 mA
Housing length: 64 mm
Protection rating: IP67

Availability: low stock

Detailed Description
Specifications
Downloads

This Omron proximity sensor, from the series E2B, with PNP configuration and the cable length of 2m is water and oil resistant. It provides clear visibility from 360 degree angle.

It uses IP67 degree of protection.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	2 mm
Digital Switching Output Type	PNP
Output Function	NC
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	64mm
Mounting Type	Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Series	E2B
Switching Frequency	1 kHz
Switching Current	200 mA
Maximum Switching Frequency	1kHz

OMRON E2B-S08LS02-WP-B2 2M | Inductive Threaded Barrel Proximity Sensor | M8, 2 mm, PNP NC, 2 m Cable
