OMRON E2E-X12B1TL18 2M | Threaded Inductive Proximity Sensor | M18, 12 mm Sensing, PNP NO

Name: OMRON E2E-X12B1TL18 2M | Threaded Inductive Proximity Sensor | M18, 12 mm Sensing, PNP NO
Brand: OMRON
SKU: E2E-X12B1TL18 2M
Availability: InStock

Part Number : E2E-X12B1TL18 2M

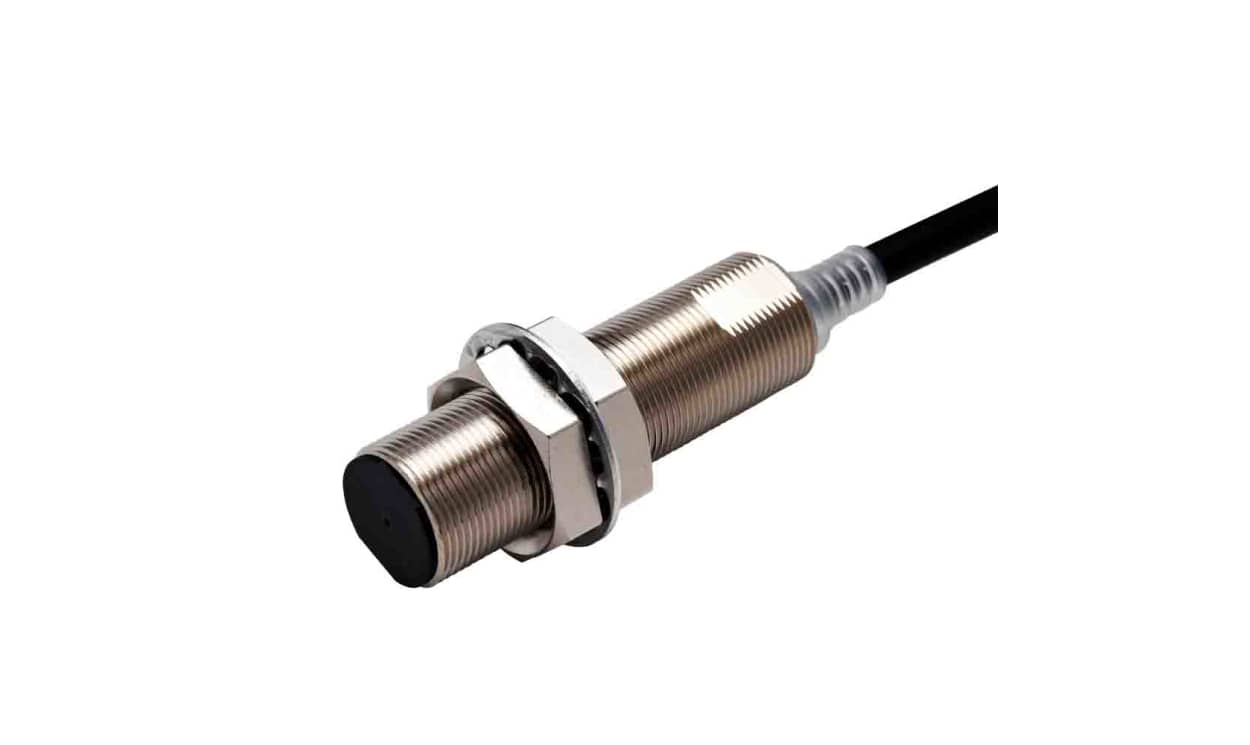

The OMRON E2E-X12B1TL18 2M is an M18 threaded inductive proximity sensor with a 12 mm sensing distance and a PNP normally open output, supplied with 2 m pre-wired cable. Listed data for E2E-X12B1TL18 2M include IP67, IP67G, IP69K protection and a 10 to 30 V DC supply.

12 mm sensing distance, M18 thread
Output: PNP NO
10 to 30 V DC supply; connection: 2 m pre-wired cable
IP67, IP67G, IP69K rated, minimum operating temperature -25 °C
Quasi-flush mounting (shielded), switching frequency 500 Hz
Brass housing, length 77.3 mm

Availability: low stock

Detailed Description
Specifications
Downloads

Long-distance Detection Prevents Unexpected Facility Stoppages
The world's longest sensing distance
With high-brightness LED, the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the "e-jig" (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance
Comes in a wide variation to make sensor selection easy

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	12 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	77.3mm
Mounting Type	Quasi-Flush
Width	18mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Shielding	Shielded
Depth	18mm
Maximum Switching Frequency	500Hz
