OMRON E2E-X14B1T18 2M | Threaded Inductive Proximity Sensor | M18, 14 mm Sensing, PNP NO

Name: OMRON E2E-X14B1T18 2M | Threaded Inductive Proximity Sensor | M18, 14 mm Sensing, PNP NO
Brand: OMRON
SKU: E2E-X14B1T18 2M
Availability: InStock

Part Number : E2E-X14B1T18 2M

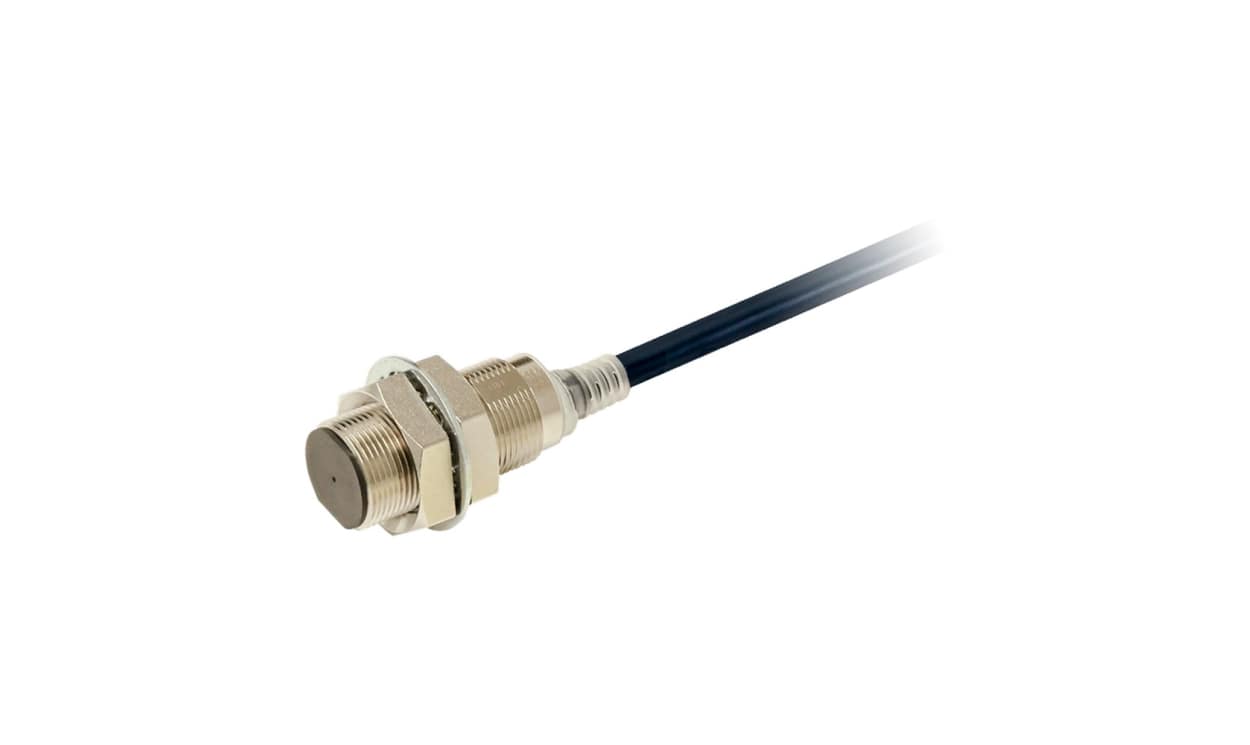

Supplied with 2 m pre-wired cable, the OMRON E2E-X14B1T18 2M inductive proximity sensor detects targets at up to 14 mm from its M18 threaded body and switches a PNP normally open output. The E2E-X14B1T18 2M runs on 10 to 30 V DC and is rated IP67, IP67G, IP69K.

M18 thread size, 14 mm detection range
Output: PNP NO
10 to 30 V DC supply; connection: 2 m pre-wired cable
IP67, IP67G, IP69K rated, minimum operating temperature -25 °C
Quasi-flush mounting (shielded), switching frequency 350 Hz
Brass housing, length 55.3 mm

Availability: low stock

Detailed Description
Specifications
Downloads

Long-distance Detection Prevents Unexpected Facility Stoppages
The world's longest sensing distance
With high-brightness LED, the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the "e-jig" (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance
Comes in a wide variation to make sensor selection easy

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	14 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	55.3mm
Mounting Type	Quasi-Flush
Width	18mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	350Hz
Shielding	Shielded
Depth	18mm

OMRON E2E-X14B1T18 2M | Threaded Inductive Proximity Sensor | M18, 14 mm Sensing, PNP NO

DOWNLOAD CATALOG

E2E-X14B1T18 2M Datasheet 0900766b81724c44
