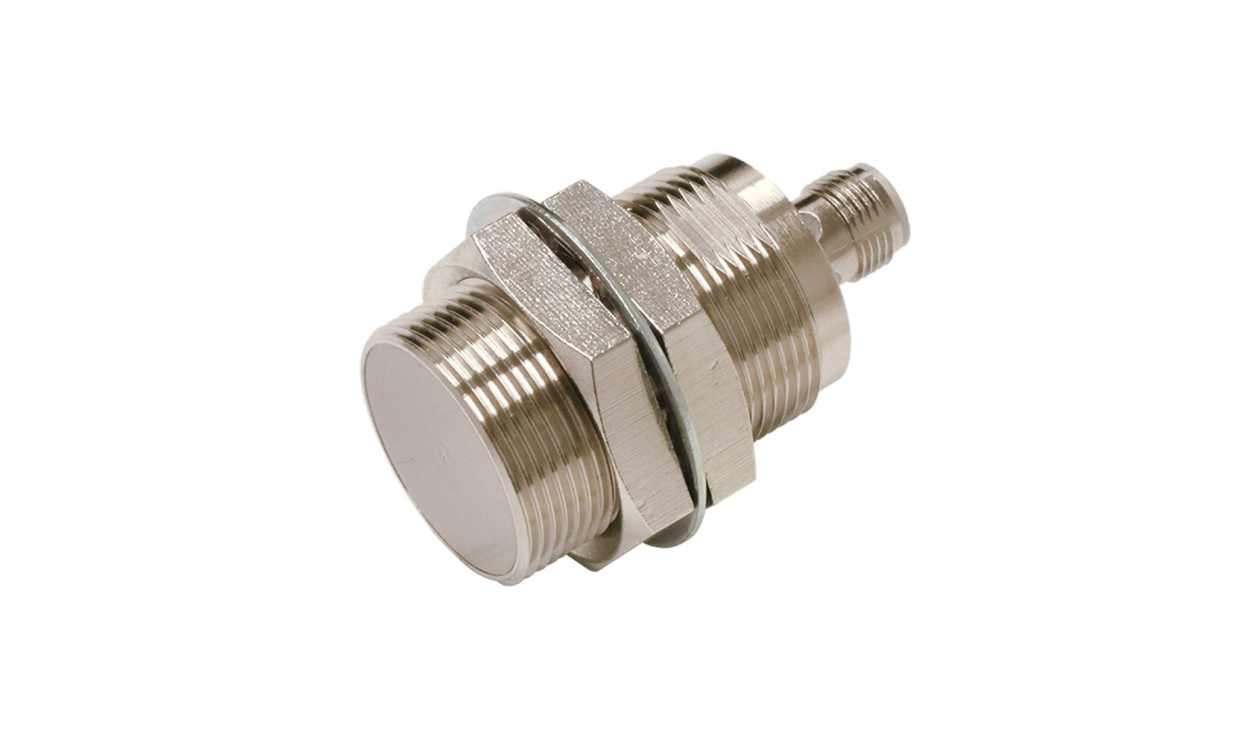

OMRON E2E-X15B1T30-M1 | Threaded Inductive Proximity Sensor | M30, 15 mm Sensing, PNP NO

Name: OMRON E2E-X15B1T30-M1 | Threaded Inductive Proximity Sensor | M30, 15 mm Sensing, PNP NO
Brand: OMRON
SKU: E2E-X15B1T30-M1
Availability: InStock

Part Number : E2E-X15B1T30-M1

With a PNP normally open output and a 15 mm sensing distance, the M30 OMRON E2E-X15B1T30-M1 threaded inductive proximity sensor connects by an M12 connector. This E2E-X15B1T30-M1 unit is powered from 10 to 30 V DC, rated IP67, IP67G, IP69K and specified for -25 to +70 °C.

M30 thread size, 15 mm detection range
Output: PNP NO, switching current 16 mA
10 to 30 V DC supply; connection: M12 connector
IP67, IP67G, IP69K rated, operating temperature -25 to +70 °C
Quasi-flush mounting, switching frequency 250 Hz, E2E-NEXT series
Brass housing, length 60.3 mm

Availability: low stock

Detailed Description
Specifications
Downloads

Long-distance Detection Prevents Unexpected Facility Stoppages
The world's longest sensing distance
With high-brightness LED, the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the "e-jig" (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance
Comes in a wide variation to make sensor selection easy

Brand	Omron
Thread Size	M30
Sensor Technology	Inductive
Detection Range	15 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	60.3mm
Mounting Type	Quasi-Flush
Width	30mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	16 mA
Series	E2E-NEXT
Switching Frequency	250 Hz
Maximum Operating Temperature	+70°C
