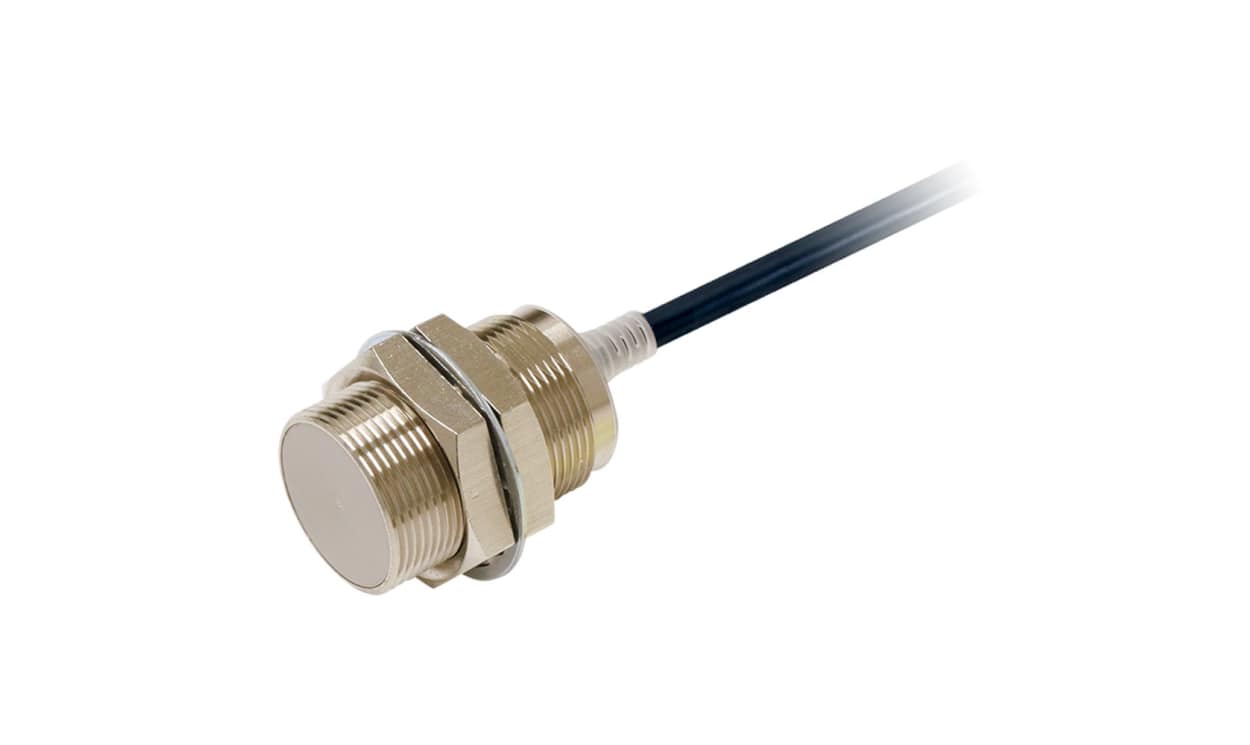

OMRON E2E-X15C130 2M | Threaded Inductive Proximity Sensor | M30, 15 mm Sensing, NPN NO
Part Number : E2E-X15C130 2M
OMRON E2E-X15C130 2M: 15 mm sensing distance, an NPN normally open output and 2 m pre-wired cable, built as an M30 threaded inductive proximity sensor. Listed data for E2E-X15C130 2M include IP69K protection, a 10 to 30 V DC supply and an operating range of -25 to +70 °C.
- 15 mm sensing distance, M30 thread
- Output: NPN NO, switching current 3 to 100 mA
- 10 to 30 V DC supply; connection: 2 m pre-wired cable
- IP69K rated, operating temperature -25 to +70 °C
- Quasi-flush mounting (shielded), switching frequency 200 Hz, E2E series
- Length 60.3 mm
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
The Omron DC 3 wire inductive proximity sensor having size M30. The sensor is with high brightness LED and indicator is visible anywhere from 360°. It is IP69K compliant for water resistance and wash resistance. It comes in a wide variation to make sensor selection easy. It has less false detection even when a stationary gets away from the sensor due to equipment vibration.
Early error detection
Quick recovery
Easy to install
Quick recovery
Easy to install
| Brand | Omron |
| Series | E2E |
| Sensor Technology | Inductive |
| Body Style | Threaded Barrel |
| Detection Range | 15 mm (0.591 in) |
| Output Function | NO |
| Connection Type | Pre-Cabled |
| Supply Voltage | 10 → 30 V dc |
| Length | 60.3 mm (2.37 in) |
| IP Rating | IP69K |
| Digital Switching Output Type | NPN |
| Mounting Type | Quasi-Flush |
| Shielding | Shielded |
| Thread Size | M30 |
| Switching Current | 3 → 100 mA |
| Switching Frequency | 200 Hz |
| Cable Length | 2 m (6.56 ft) |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +70 °C (158 °F) |
