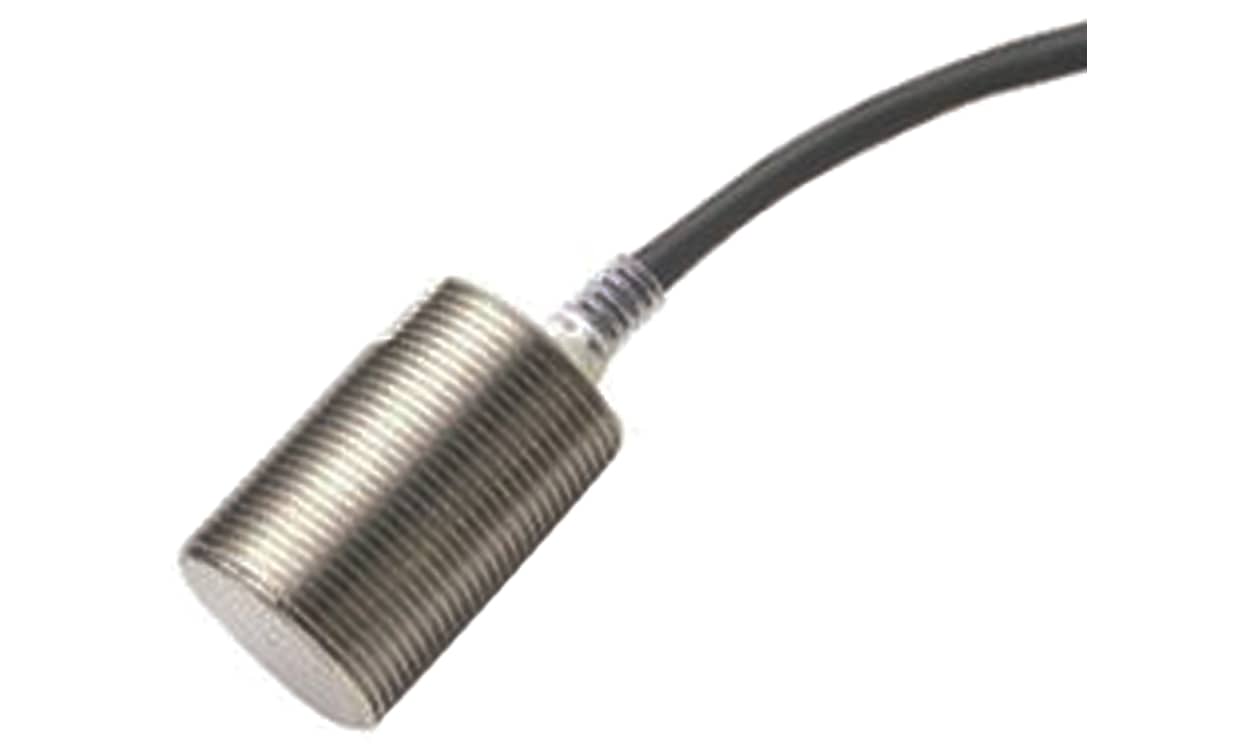

OMRON E2E-X1R5E1-M3 | Threaded Inductive Proximity Sensor | M8, 1.5 mm Sensing, NPN NO

Name: OMRON E2E-X1R5E1-M3 | Threaded Inductive Proximity Sensor | M8, 1.5 mm Sensing, NPN NO
Brand: OMRON
SKU: E2E-X1R5E1-M3
Availability: InStock

Part Number : E2E-X1R5E1-M3

OMRON E2E-X1R5E1-M3: 1.5 mm sensing distance, an NPN normally open output and an M8 connector, built as an M8 threaded inductive proximity sensor. Listed data for E2E-X1R5E1-M3 include IP67 protection and a 12 to 24 V DC supply.

1.5 mm sensing distance, M8 thread
Output: NPN NO
12 to 24 V DC supply; connection: M8 connector
IP67 rated, minimum operating temperature -40 °C
Flush mounting, switching frequency 2 kHz, E2EX series
Stainless steel housing, length 39 mm, reverse polarity and short-circuit/overload protection

Availability: low stock

Detailed Description
Specifications
Downloads

E2EX Shielded DC 3-wire Sensors

Omron E2EX series inductive proximity sensors for detecting ferrous metals.

PBT sensing face material
LED indication
3 wire DC
Shielded

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Detection Range	1.5 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	M8
Supply Voltage	12 → 24 V dc
Length	39mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	40V
Minimum Operating Temperature	-40°C
Reverse Polarity Protection	Yes
Switching Frequency	2 kHz
Series	E2EX
Short Circuit Overload Protection	Yes
Depth	15mm
