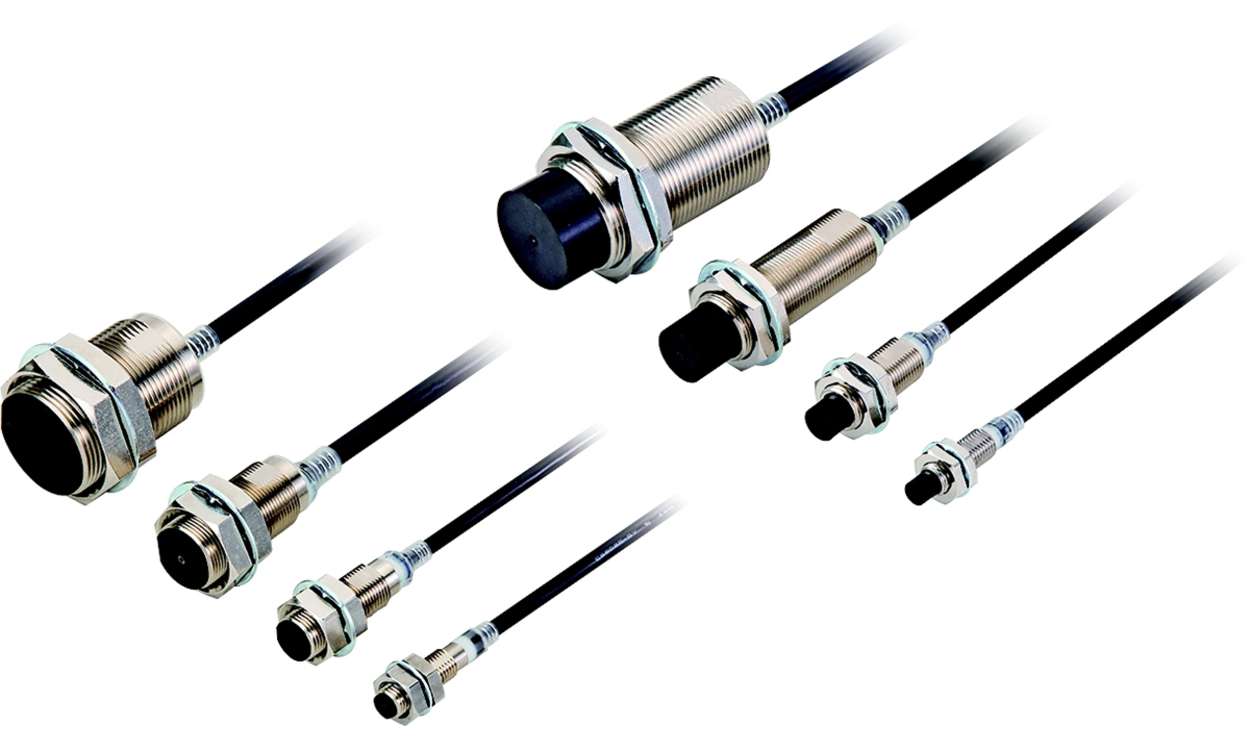

OMRON E2E-X20D130-T 2M | Threaded Inductive Proximity Sensor | M30, 20 mm Sensing, 2-Wire NO

Name: OMRON E2E-X20D130-T 2M | Threaded Inductive Proximity Sensor | M30, 20 mm Sensing, 2-Wire NO
Brand: OMRON
SKU: E2E-X20D130-T 2M
Availability: InStock

Part Number : E2E-X20D130-T 2M

OMRON E2E-X20D130-T 2M: 20 mm sensing distance, a 2-wire normally open output and 2 m pre-wired cable, built as an M30 threaded inductive proximity sensor. The E2E-X20D130-T 2M runs on 10 to 30 V DC, is rated IP67 and works from -25 to +70 °C.

20 mm sensing distance, M30 thread
Output: 2-Wire NO
10 to 30 V DC supply; connection: 2 m pre-wired cable
IP67 rated, operating temperature -25 to +70 °C
Flush mounting, switching frequency 200 Hz, E2E-NEXT series
Brass housing, length 60.3 mm

Availability: low stock

Detailed Description
Specifications
Downloads

Proximity sensors with longer sensing distance require increased sensitivity. However, with the increased sensitivity, temperature changes will have bigger influence in sensing distance. E2E NEXT Proximity Sensors use "Thermal Distance Control": long-distance and stable detection technology, newly developed by OMRON."Thermal Distance Control" with "PROX2" write temperature correction values externally when shipped and minimize the sensing distance changes due to temperature changes, which could not be done by the conventional analog IC.

With high-brightness LED the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the ″e-jig″ (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance

Brand	Omron
Thread Size	M30
Sensor Technology	Inductive
Detection Range	20 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	2-Wire
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
Length	60.3mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Brass
Width	42mm
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Series	E2E-NEXT
Maximum Switching Frequency	200Hz
Maximum Operating Temperature	+70°C
