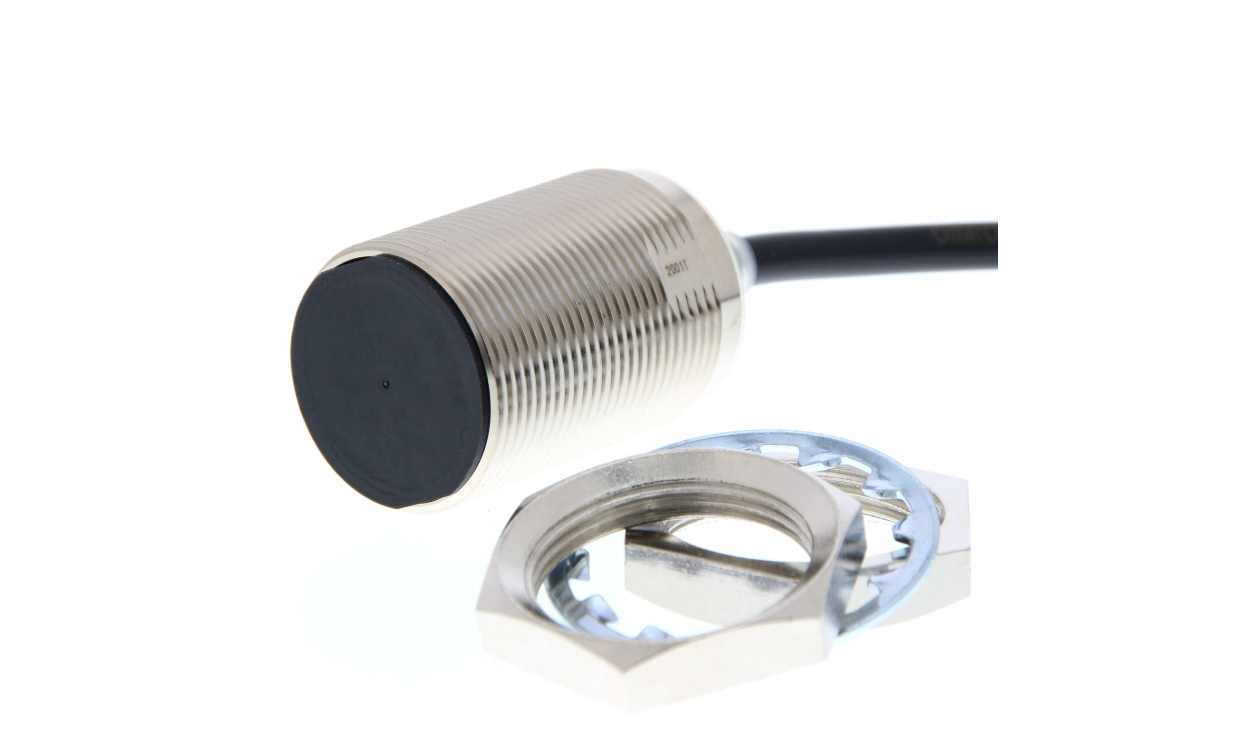

OMRON E2E-X20D230 2M | Threaded Inductive Proximity Sensor | M30, 20 mm Sensing, 2-Wire NC
Part Number : E2E-X20D230 2M
With a 2-wire normally closed output and a 20 mm sensing distance, the M30 OMRON E2E-X20D230 2M threaded inductive proximity sensor connects by 2 m pre-wired cable. The E2E-X20D230 2M runs on 10 to 30 V DC, is rated IP67, IP67G, IP69K and works from -25 to +70 °C.
- M30 thread size, 20 mm detection range
- Output: 2-Wire NC, switching current 3 to 100 mA
- 10 to 30 V DC supply; connection: 2 m pre-wired cable
- IP67, IP67G, IP69K rated, operating temperature -25 to +70 °C
- Quasi-flush mounting (quasi-shielded), switching frequency 200 Hz
- Length 60.3 mm
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
The Omron proximity sensor has an exceptional sensing range which reduces malfunctions and collisions. With high-brightness LED, the indicator is visible anywhere from 360°. Cables with enhanced oil resistance enabled have 2-year oil resistance.
UL certification (UL60947-5-2)
Protection Rating IP67G
Protection Rating IP67G
| Brand | Omron |
| Sensor Technology | Inductive |
| Body Style | Threaded Barrel |
| Detection Range | 20 mm (0.787 in) |
| Output Function | NC |
| Connection Type | Pre-Cabled |
| Supply Voltage | 10 → 30 V dc |
| Length | 60.3 mm (2.37 in) |
| IP Rating | IP67, IP67G, IP69K |
| Digital Switching Output Type | 2-Wire |
| Mounting Type | Quasi-Flush |
| Shielding | Quasi-Shielded |
| Thread Size | M30 |
| Switching Current | 3 → 100 mA |
| Switching Frequency | 200 Hz |
| Cable Length | 2 m (6.56 ft) |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Maximum Switching Frequency | 200Hz |
OMRON E2E-X20D230 2M | Threaded Inductive Proximity Sensor | M30, 20 mm Sensing, 2-Wire NC
