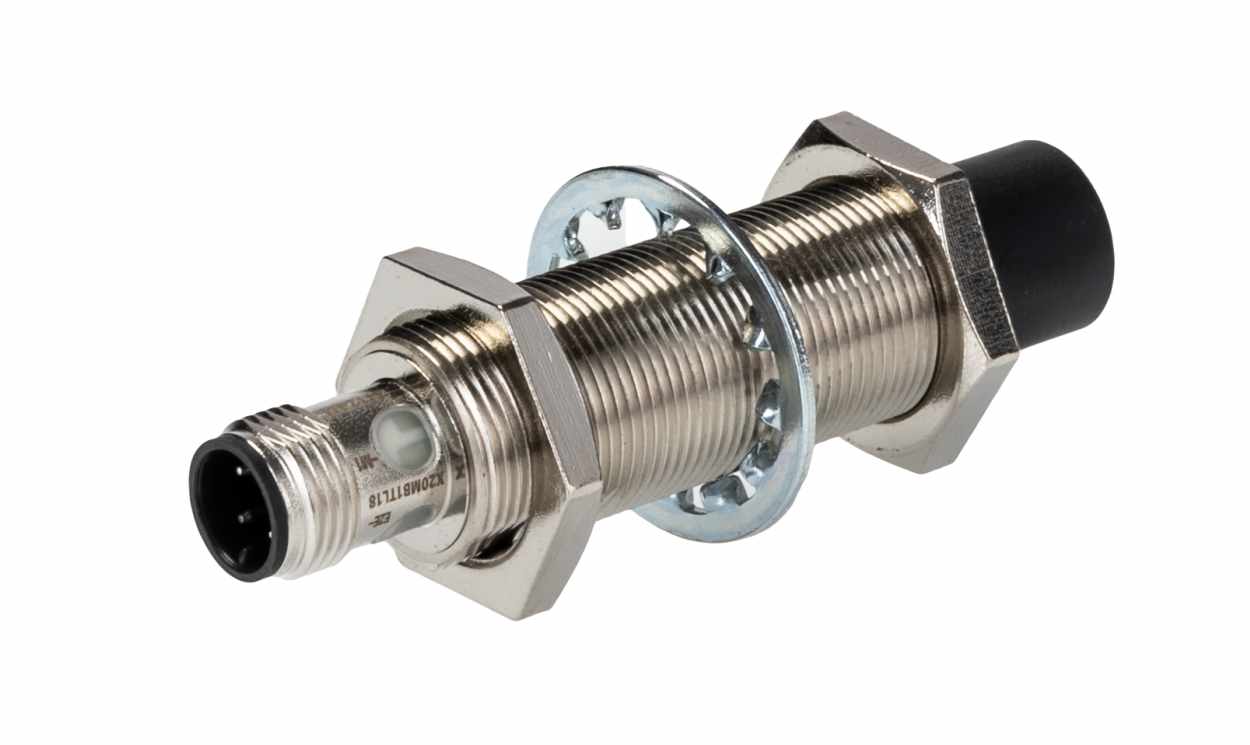

OMRON E2E-X20MB1TL18-M1 | Threaded Inductive Proximity Sensor | M18, 20 mm Sensing, PNP NO

Name: OMRON E2E-X20MB1TL18-M1 | Threaded Inductive Proximity Sensor | M18, 20 mm Sensing, PNP NO
Brand: OMRON
SKU: E2E-X20MB1TL18-M1
Availability: InStock

Part Number : E2E-X20MB1TL18-M1

Supplied with an M12 connector, the OMRON E2E-X20MB1TL18-M1 inductive proximity sensor detects targets at up to 20 mm from its M18 threaded body and switches a PNP normally open output. Listed data for E2E-X20MB1TL18-M1 include IP67, IP67G, IP69K protection and a 10 to 30 V DC supply.

M18 thread size, 20 mm detection range
Output: PNP NO, switching current 16 mA
10 to 30 V DC supply; connection: M12 connector
IP67, IP67G, IP69K rated, minimum operating temperature -25 °C
Non-flush mounting (unshielded), switching frequency 200 Hz, IO-Link communication
Brass housing, length 77.3 mm

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2E-NEXT Series Proximity Sensor, 20mm Detection Range, IP67/IP67G/IP69K - E2E-X20MB1TL18-M1

This inductive proximity sensor is engineered to provide high reliability in industrial environments. Its waterproof design and robust construction make it suitable for automation and challenging applications. With a detection range of 20mm, this non-flush mount sensor excels in precise object detection, ensuring efficient operations.

Features & Benefits

• Digital PNP output facilitates integration with control systems
• IP67, IP67G, and IP69K ratings confirm durability in harsh conditions
• Reverse polarity and short circuit overload protection included
• Switching frequency of 200Hz offers quick response times
• Brass construction enhances strength and longevity

Applications

• Utilised in automated assembly lines for accurate positioning
• Suitable for detecting metal objects in packaging machinery
• Employed in robotic for consistent feedback
• Used in conveyor systems to prevent jams and maintain safety

What is the minimum operating temperature?

The minimum operating temperature is -25°C, allowing functionality in cold environments.

Can this sensor be used with different types of connections?

Yes, it features a standard M12 connection, making it versatile for various installations.

How does the waterproof feature impact its use?

The IP67 rating ensures it can withstand exposure to water and dust, making it suitable for external applications.

Is it straightforward to install this sensor?

Yes, the threaded barrel design allows for easy installation in tight spaces without specialised tools.

What kind of protection does it offer against electrical issues?

It features reverse polarity and short circuit overload protection to safeguard against electrical faults.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	20 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	77.3mm
IP Rating	IP67, IP67G, IP69K
Mounting Type	Non-Flush
Width	18mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	16 mA
Maximum Switching Frequency	200Hz
Shielding	Unshielded
Communication Protocol	IO-LINK
