OMRON E2E-X2B1T8 2M | Inductive Proximity Sensor | M8, 2 mm Range, PNP NO

Name: OMRON E2E-X2B1T8 2M | Inductive Proximity Sensor | M8, 2 mm Range, PNP NO
Brand: OMRON
SKU: E2E-X2B1T8 2M
Availability: InStock

Part Number : E2E-X2B1T8 2M

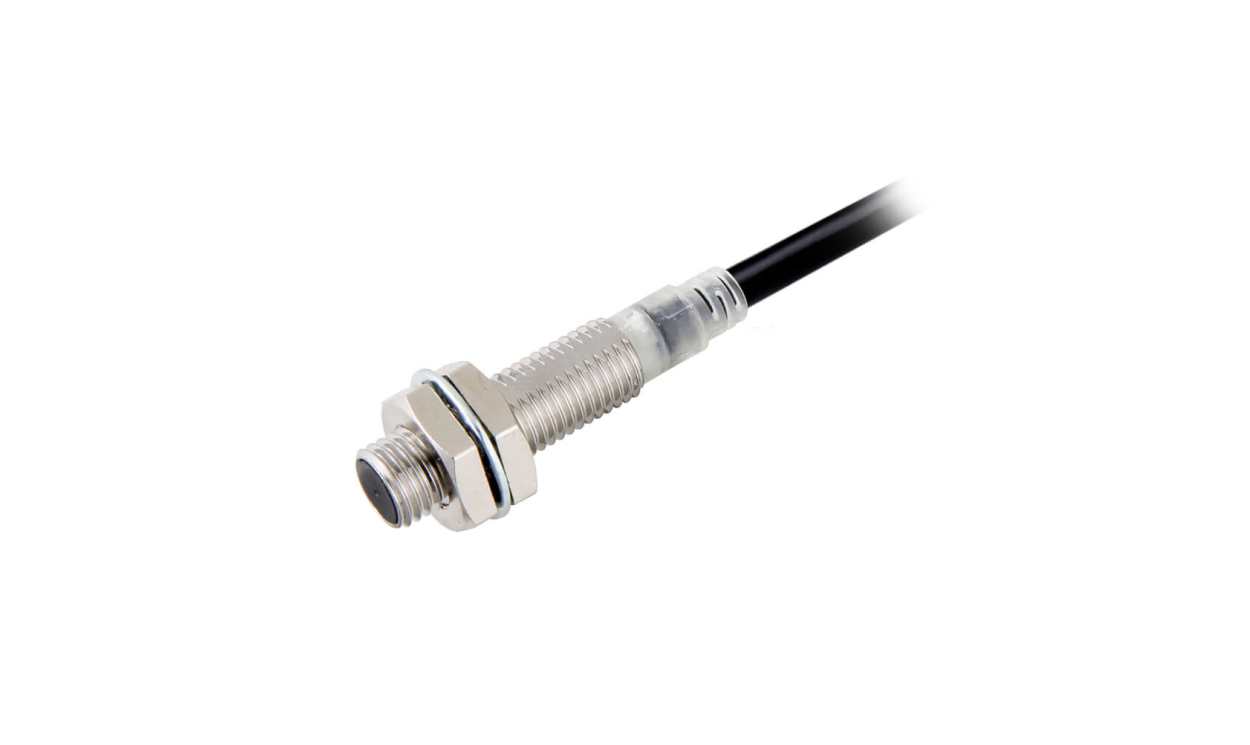

The OMRON E2E-X2B1T8 2M is an M8 threaded-barrel inductive proximity sensor with a 2 mm detection range, a PNP normally open (NO) output, a 2 m pre-wired cable and 10 to 30 V DC operation.

Detection range: 2 mm, flush mounting
Output: PNP NO
Supply voltage: 10 to 30 V DC
Connection: 2 m cable
IO-Link communication, short-circuit protection
Rated IP67, IP67G, IP69K

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2E-NEXT Series Proximity Sensor, 2mm Detection Range, IP67/IP67G/IP69K - E2E-X2B1T8 2M

This proximity sensor is designed for efficient detection in various industrial settings. Using inductive technology, it ensures accurate performance while being compatible with a wide range of systems. Its robust construction and features make it essential for automation and electrical applications.

Features & Benefits

• Provides a 2mm detection range for effective sensing
• Utilises PNP output for straightforward integration into control systems
• IP67 rating offers protection against dust and moisture
• Includes short circuit overload protection for safety
• Reverse polarity protection to prevent installation damage

Applications

• Employed in assembly line automation for object detection
• Integrated into robotic systems for position sensing
• Utilised in packaging machinery for counting and detection
• Applied in material handling equipment for presence tracking

How do I install this sensor?

Installation requires minimal tools

follow the provided guidelines for mounting and wiring.

Can this sensor work with my existing control system?

Yes, it is designed to be compatible with various systems that support PNP output.

What are the environmental conditions it can operate in?

It operates effectively in conditions ranging from -25 to +70°C, suitable for diverse settings.

Is it easy to replace if needed?

Yes, the pre-cabled design allows for straightforward replacement without complex reconfiguration.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	2 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	37.8mm
Mounting Type	Flush
Housing Material	Brass
Width	8mm
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Short Circuit Overload Protection	Yes
Communication Protocol	IO-LINK
Series	E2E-NEXT
