OMRON E2E-X2C1L8 2M | Inductive Proximity Sensor | M8, 2 mm Range, NPN NO

Name: OMRON E2E-X2C1L8 2M | Inductive Proximity Sensor | M8, 2 mm Range, NPN NO
Brand: OMRON
SKU: E2E-X2C1L8 2M
Availability: InStock

Part Number : E2E-X2C1L8 2M

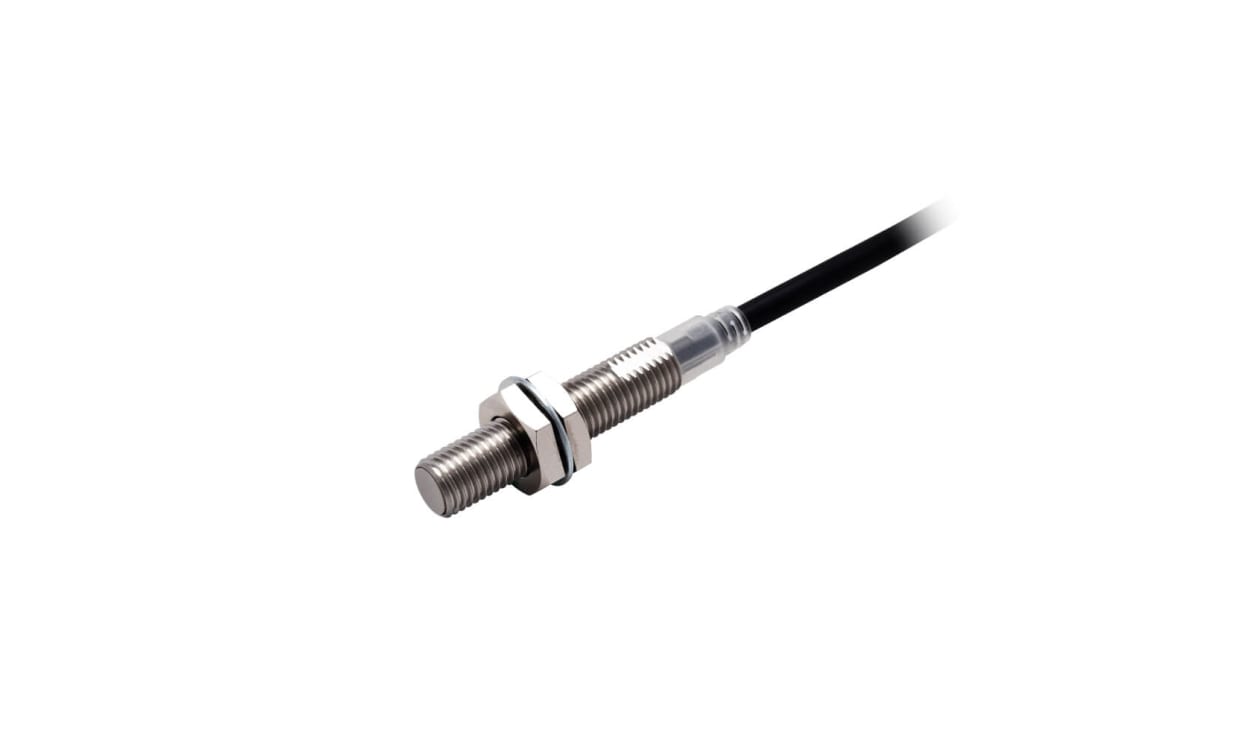

The M8 OMRON E2E-X2C1L8 2M inductive proximity sensor comes with a 2 m pre-wired cable, an NPN normally open (NO) output, 10 to 30 V DC operation and a 2 mm detection range.

Detection range: 2 mm, flush mounting (shielded)
Output: NPN NO
Supply voltage: 10 to 30 V DC
Connection: 2 m cable
Short-circuit protection
Rated IP67, IP67G, IP69K

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2E Series Proximity Sensor, 2mm Detection Range, 200mA Switching Current - E2E-X2C1L8 2M

This inductive proximity sensor is designed for robust industrial applications, offering a detection range of 2mm in a compact M8 threaded sensor body. Constructed from stainless steel, it ensures durability and reliability in harsh environments. With IP67 and IP69K ratings, this flush mount proximity switch effectively prevents water and dust ingress, making it suitable for challenging conditions.

Features & Benefits

• Long-lasting stainless steel housing enhances durability in multiple settings
• 2mm detection range sensor ideal for precise measurements
• NPN output sensor for compatible signal transmission in automation systems
• High frequency switching sensor minimises response times
• IP67 proximity switch protects against moisture and particulates
• Flush mount design increases flexibility in installation options

Applications

• Ideal for automation processes in manufacturing settings
• Utilised for position sensing in robotics and vending machines
• Effective in controlling movements in conveyor systems
• Employed for detecting the presence of metal objects in assembly lines

What environmental conditions can it withstand during usage?

It operates effectively within a temperature range of -25°C to +70°C, suitable for diverse industrial environments without compromising performance.

How does the sensor ensure reliable operation despite potential interference?

The device features shielded construction to mitigate noise and interference from nearby equipment, promoting consistent functionality.

What makes this sensor advantageous for automation tasks?

Its rapid switching capabilities, at up to 1.5 kHz, allow for quick response times, enhancing overall efficiency in automated processes.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Detection Range	2 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	77.3 mm
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Shielding	Shielded
Maximum Operating Temperature	+70°C
Short Circuit Overload Protection	Yes
Series	E2E
