OMRON E2E-X2R5D1-N 2M | Inductive Proximity Sensor | M12, 2.5 mm Range, 2-Wire NO

Name: OMRON E2E-X2R5D1-N 2M | Inductive Proximity Sensor | M12, 2.5 mm Range, 2-Wire NO
Brand: OMRON
SKU: E2E-X2R5D1-N 2M
Availability: InStock

Part Number : E2E-X2R5D1-N 2M

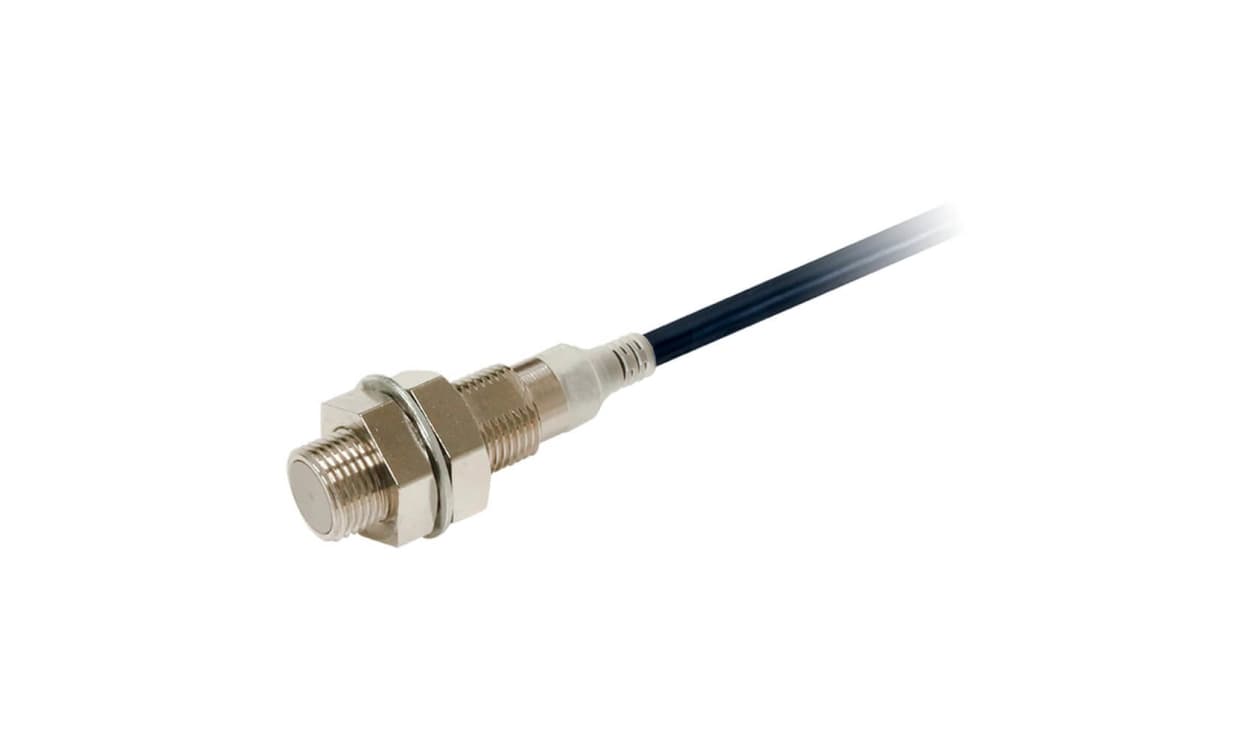

OMRON's E2E-X2R5D1-N 2M is an M12 inductive proximity sensor offering a 2-wire normally open (NO) output, a 2.5 mm detection range, a 2 m pre-wired cable and 10 to 30 V DC operation.

2.5 mm detection range with flush mounting (shielded)
10 to 30 V DC supply
Connection: 2 m cable
Switching frequency 250 Hz, switching current 3 to 100 mA
Protection: IP67, IP67G, IP69K
Output: 2-wire NO

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron proximity sensor has an exceptional sensing range which reduces malfunctions and collisions. With high-brightness LED, the indicator is visible anywhere from 360°. Cables with enhanced oil resistance enabled have 2-year oil resistance.

UL certification (UL60947-5-2)
Protection Rating IP67G

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	2.5 mm
Body Style	Threaded Barrel
Digital Switching Output Type	2-Wire
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
Length	47mm
IP Rating	IP67, IP67G, IP69K
Mounting Type	Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	3 → 100 mA
Maximum Switching Frequency	250Hz
Shielding	Shielded
Maximum Operating Temperature	+70°C
Switching Frequency	250 Hz
