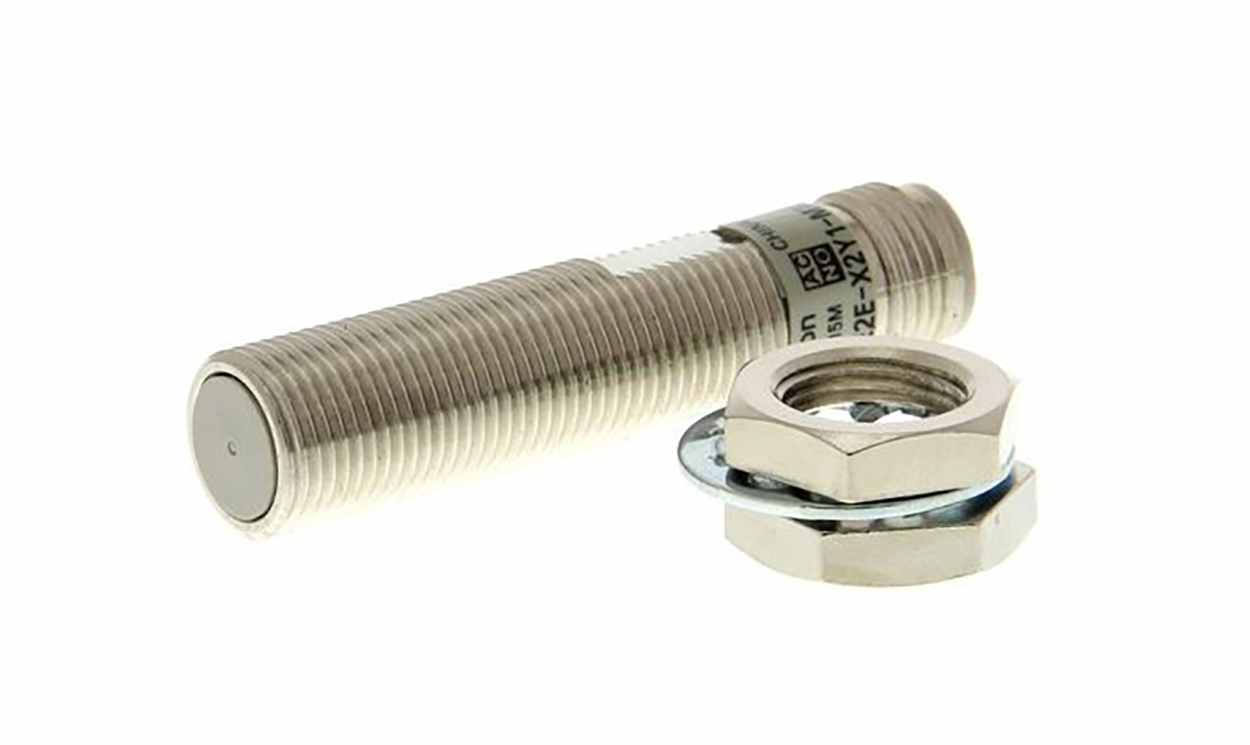

OMRON E2E-X2Y1-M1 | Inductive Proximity Sensor | M12, 2 mm Range, 2-Wire NO

Name: OMRON E2E-X2Y1-M1 | Inductive Proximity Sensor | M12, 2 mm Range, 2-Wire NO
Brand: OMRON
SKU: E2E-X2Y1-M1
Availability: InStock

Part Number : E2E-X2Y1-M1

The OMRON E2E-X2Y1-M1 is an M12 threaded-barrel inductive proximity sensor with a 2 mm detection range, a 2-wire normally open (NO) output, an M12 connector and 24 to 240 V AC operation.

2 mm detection range with flush mounting (shielded)
24 to 240 V AC supply
Connection: M12 connector
Switching frequency 25 Hz, switching current 200 mA
Protection: IP67
Output: 2-wire NO

Availability: low stock

Detailed Description
Specifications

E2EX Shielded AC 2-wire Sensors

The E2EX series of sensors are standard proximity sensors for detecting ferrous metals.

PBT sensing face material
LED indication
2 wire AC
Shielded

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	2 mm
Digital Switching Output Type	2-Wire
Output Function	NO
Connection Type	M12
Supply Voltage	24 → 240 V ac
Length	53mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-40°C
Switching Frequency	25 Hz
Switching Current	200 mA
Maximum Operating Temperature	+85°C
Maximum Switching Frequency	25Hz
Shielding	Shielded
