OMRON E2E-X30MC1L18-M1 | Inductive Proximity Sensor | M18, 30 mm Range, NPN NO

Name: OMRON E2E-X30MC1L18-M1 | Inductive Proximity Sensor | M18, 30 mm Range, NPN NO
Brand: OMRON
SKU: E2E-X30MC1L18-M1
Availability: InStock

Part Number : E2E-X30MC1L18-M1

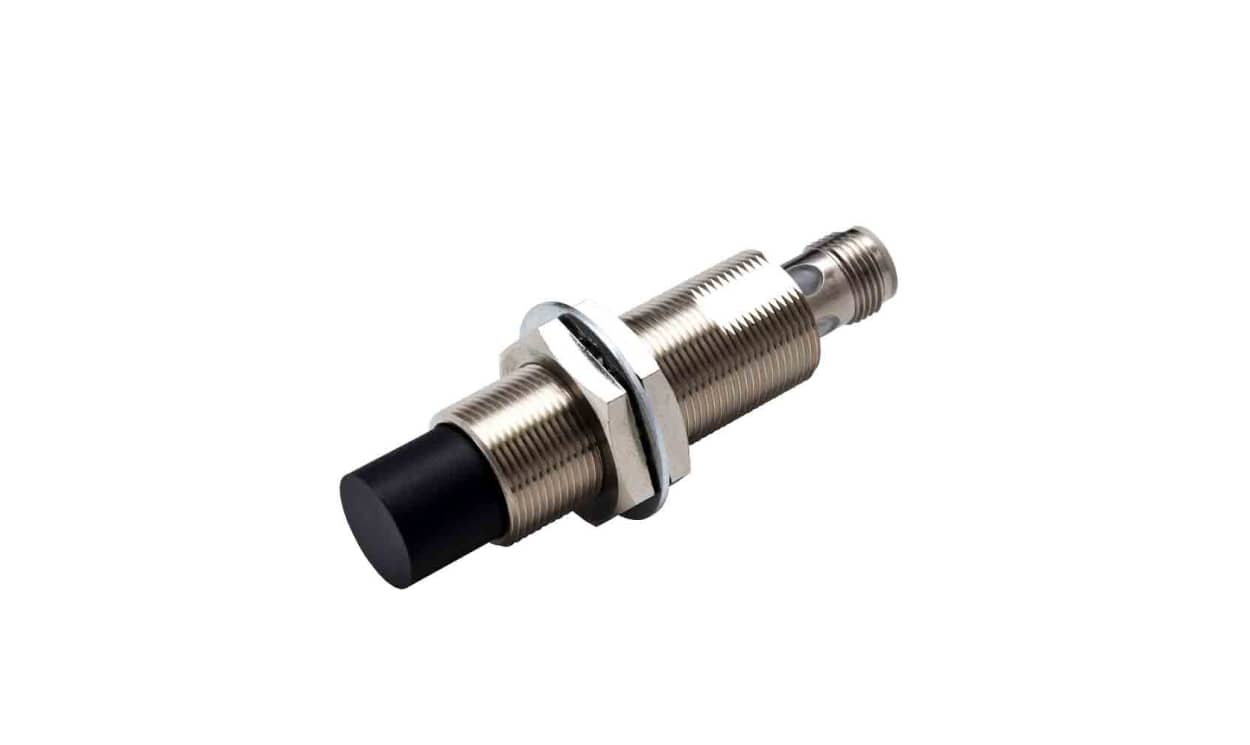

The OMRON E2E-X30MC1L18-M1 is an M18 threaded-barrel inductive proximity sensor with a 30 mm detection range, an NPN normally open (NO) output, an M12 connector and 10 to 30 V DC operation.

Sensing distance 30 mm; non-flush mounting (unshielded)
Connection: M12 connector, 2 m cable length
Switching frequency 200 Hz
Ingress protection: IP67, IP69K
Output: NPN NO
Operating voltage 10 to 30 V DC

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2E Series Proximity Sensor, Inductive Sensor Technology, 30mm Detection Range - E2E-X30MC1L18-M1

This inductive proximity sensor is designed for reliable sensing applications within the automation and electronics fields. The E2E series offers a compact design with an M18 threaded body, ideal for non-flush mounting. With an IP67 and IP69K rating, it ensures durability in challenging environments while maintaining a 30mm detection range and a cable length of 2 metres.

Features & Benefits

• Inductive sensor technology for precise object detection
• Nickel-plated brass body for enhanced durability
• NPN output function facilitating easy integration
• Wide supply voltage range of 10 to 30 VDC
• IP67 and IP69K ratings for water and dust resistance
• Temperature resistant from -25 °C to +70 °C for versatile applications

Applications

• Ideal for use in industrial automation systems
• Suitable for detecting metallic objects in conveyor systems
• Applicable in packaging and food processing environments
• Used for position sensing in assembly lines

What specifications contribute to the sensor's robustness in harsh environments?

The sensor features an IP67 and IP69K rating, making it resistant to dust and water, while the nickel-plated brass construction enhances its durability against corrosive substances.

How does the sensor perform in varying temperature conditions?

It operates effectively within a temperature range of -25 °C to +70 °C, making it suitable for diverse applications where temperature fluctuations occur.

What are the advantages of using an NPN output with this sensor?

The NPN output allows for easy connection to various control systems, enabling straightforward integration into existing automated processes.

Can the sensor detect non-metallic objects?

The E2E series is designed primarily for ferrous metals, so its effectiveness diminishes when detecting non-metallic materials.

How quick is the installation process for this proximity sensor?

The sensor includes a straightforward connection method with a 2m cable, ensuring a quick and easy setup in various applications.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	30 mm
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	M12
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP69K
Length	75mm
Mounting Type	Non-Flush
Housing Material	Nickel-plated brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Reverse Polarity Protection	Yes
Short Circuit Overload Protection	Yes
Maximum Switching Frequency	200Hz
Shielding	Unshielded

OMRON E2E-X30MC1L18-M1 | Inductive Proximity Sensor | M18, 30 mm Range, NPN NO

DOWNLOAD CATALOG

E2E-X30MC1L18-M1 Brochure - IO-Link Makes Communication Down to the Sensor Level Visible A700000013016628
