OMRON E2E-X3D18-T 2M | Inductive Proximity Sensor | M8, 3 mm Range, 2-Wire NO

Name: OMRON E2E-X3D18-T 2M | Inductive Proximity Sensor | M8, 3 mm Range, 2-Wire NO
Brand: OMRON
SKU: E2E-X3D18-T 2M
Availability: InStock

Part Number : E2E-X3D18-T 2M

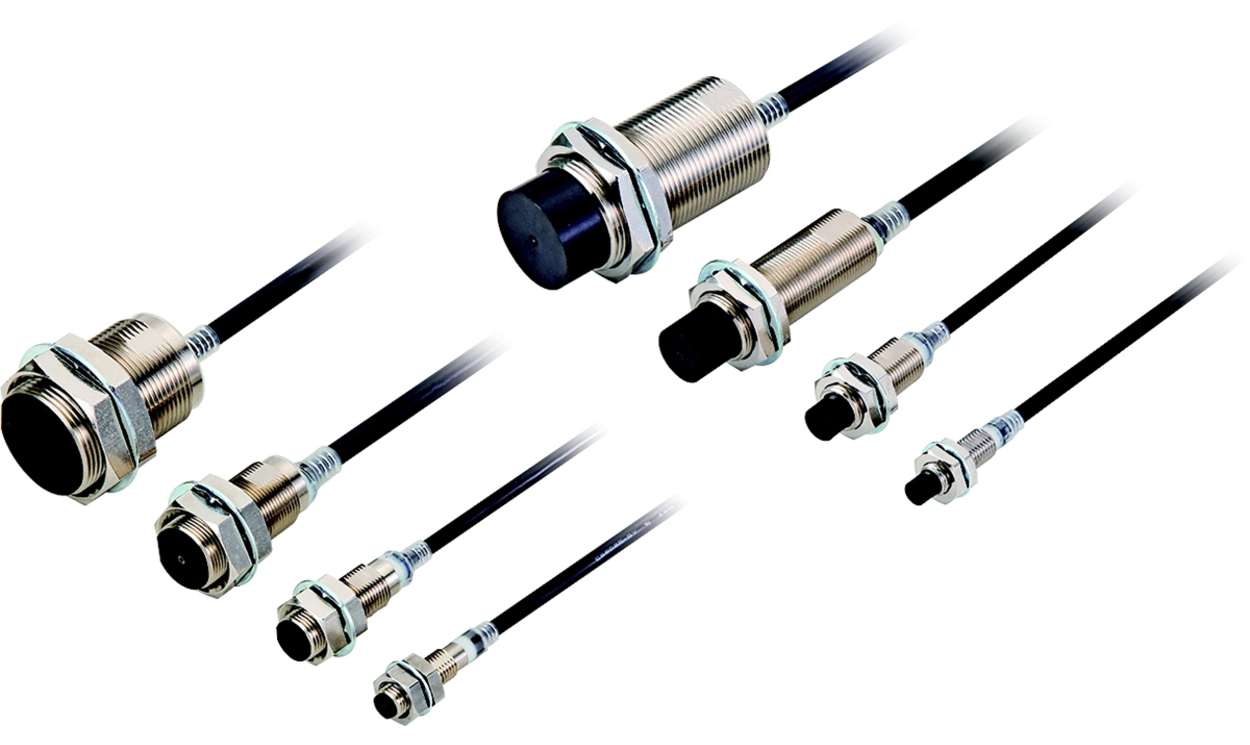

The OMRON E2E-X3D18-T 2M is an M8 threaded-barrel inductive proximity sensor with a 3 mm detection range, a 2-wire normally open (NO) output, a 2 m pre-wired cable and 10 to 30 V DC operation.

Sensing distance 3 mm; flush mounting
Connection: 2 m cable
Ingress protection: IP67
Brass housing, 37.8 mm long
Output: 2-wire NO
Operating voltage 10 to 30 V DC

Availability: low stock

Detailed Description
Specifications
Downloads

Proximity sensors with longer sensing distance require increased sensitivity. However, with the increased sensitivity, temperature changes will have bigger influence in sensing distance. E2E NEXT Proximity Sensors use "Thermal Distance Control": long-distance and stable detection technology, newly developed by OMRON."Thermal Distance Control" with "PROX2" write temperature correction values externally when shipped and minimize the sensing distance changes due to temperature changes, which could not be done by the conventional analog IC.

With high-brightness LED the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the ″e-jig″ (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Detection Range	3 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	2-Wire
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	37.8mm
Mounting Type	Flush
Width	15mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Standards Met	CE Certificate, CSA C22.2 No.14-13, UL 508, UL Certified
Series	E2E-NEXT
Depth	15mm
