OMRON E2E-X40MD1L30-TR 2M | Inductive Proximity Sensor | M30, 40 mm Range, 2-Wire NO

Name: OMRON E2E-X40MD1L30-TR 2M | Inductive Proximity Sensor | M30, 40 mm Range, 2-Wire NO
Brand: OMRON
SKU: E2E-X40MD1L30-TR 2M
Availability: InStock

Part Number : E2E-X40MD1L30-TR 2M

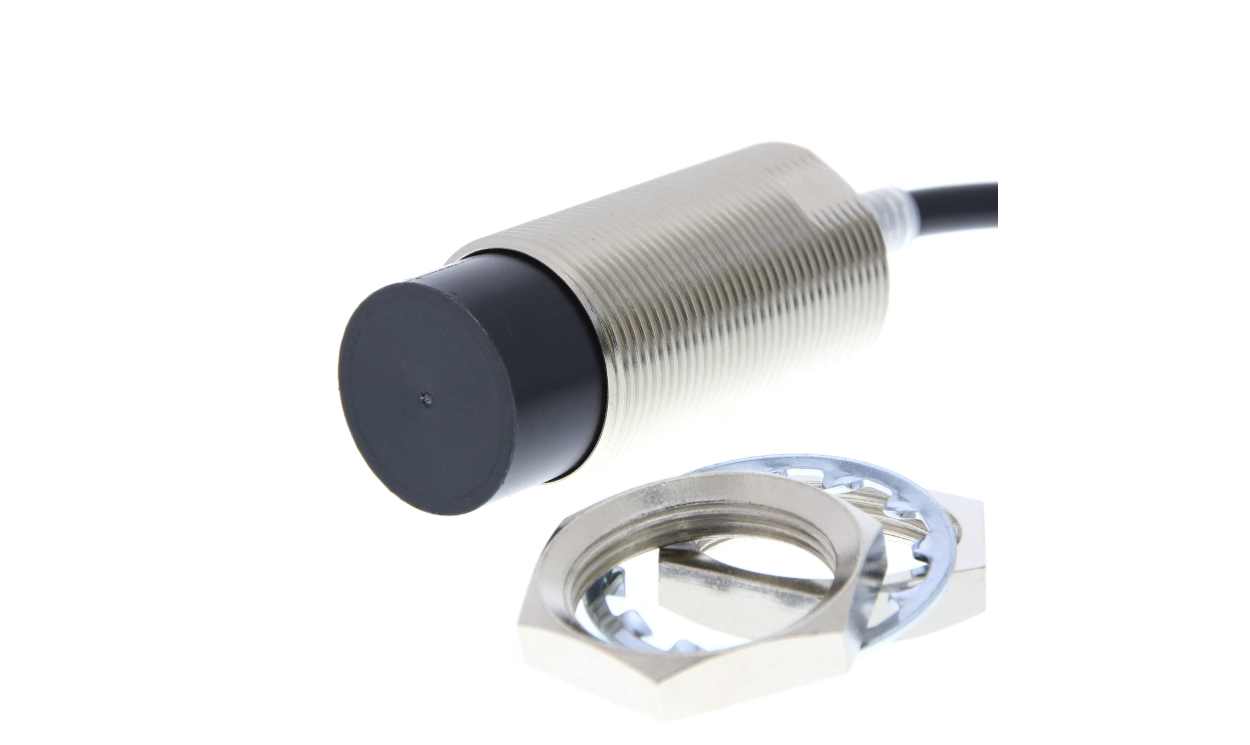

The M30 OMRON E2E-X40MD1L30-TR 2M inductive proximity sensor comes with a 2 m pre-wired cable, a 2-wire normally open (NO) output, 10 to 30 V DC operation and a 40 mm detection range.

Sensing distance 40 mm; non-flush mounting (unshielded)
Connection: 2 m cable
Switching frequency 50 Hz, switching current 100 mA
Ingress protection: IP67, IP67G, IP69K
Output: 2-wire NO
Operating voltage 10 to 30 V DC

Availability: low stock

Detailed Description
Specifications

The Omron proximity sensor has an exceptional sensing range which reduces malfunctions and collisions. With high-brightness LED, the indicator is visible anywhere from 360°. Cables with enhanced oil resistance enabled have 2-year oil resistance.

UL certification (UL60947-5-2)
Protection Rating IP67G

Brand	Omron
Thread Size	M30
Sensor Technology	Inductive
Detection Range	40 mm
Body Style	Threaded Barrel
Digital Switching Output Type	2-Wire
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
Length	82.3mm
IP Rating	IP67, IP67G, IP69K
Mounting Type	Non-Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Shielding	Unshielded
Switching Current	100 mA
Maximum Switching Frequency	50Hz
Maximum Operating Temperature	+70°C
Switching Frequency	50 Hz

OMRON E2E-X40MD1L30-TR 2M | Inductive Proximity Sensor | M30, 40 mm Range, 2-Wire NO
