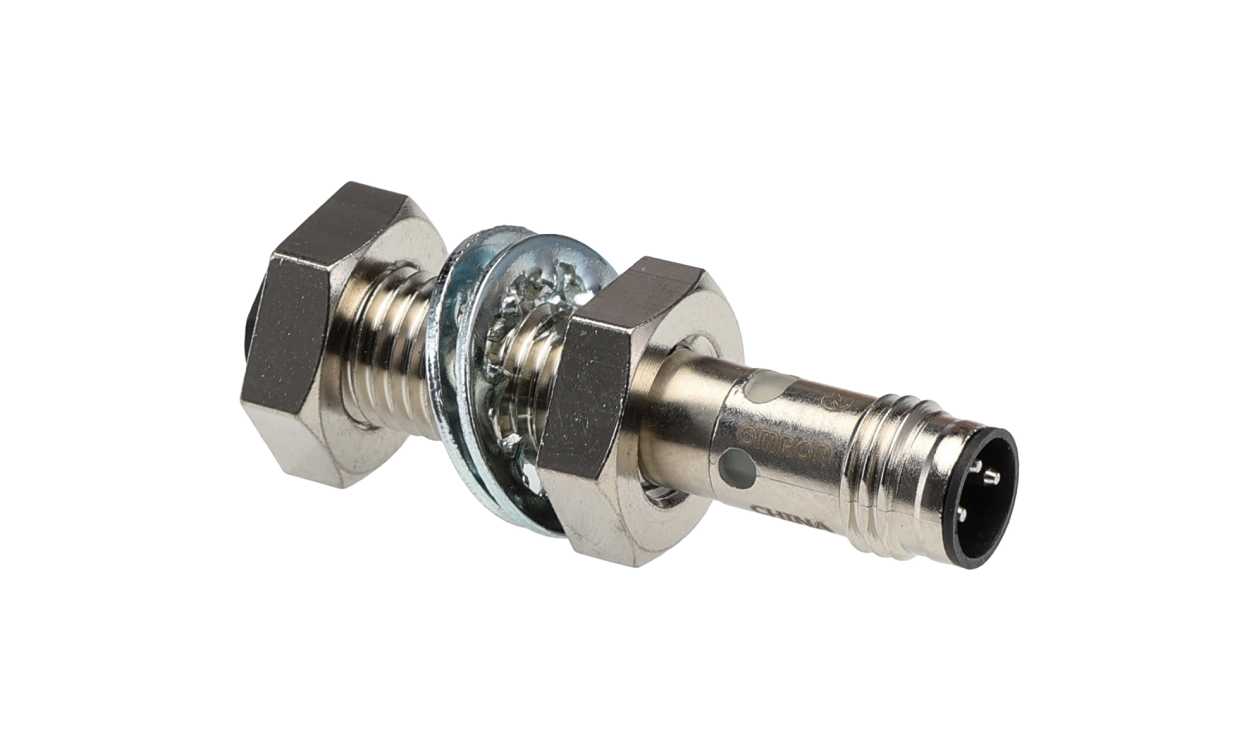

OMRON E2E-X4B1T8-M5 | Inductive Proximity Sensor | M8, 4 mm Range, PNP NO

Name: OMRON E2E-X4B1T8-M5 | Inductive Proximity Sensor | M8, 4 mm Range, PNP NO
Brand: OMRON
SKU: E2E-X4B1T8-M5
Availability: InStock

Part Number : E2E-X4B1T8-M5

The M8 OMRON E2E-X4B1T8-M5 inductive proximity sensor comes with an M8 connector, a PNP normally open (NO) output, 10 to 30 V DC operation and a 4 mm detection range. Its nickel-plated brass body is 39 mm long and rated for -25 °C to +70 °C.

Detection range: 4 mm, quasi-flush mounting
Output: PNP NO
Supply voltage: 10 to 30 V DC
Connection: M8 connector
Short-circuit protection
Rated IP67, IP69K

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2E-NEXT Series Proximity Sensor, 4mm Detection Range, PNP Output - E2E-X4B1T8-M5

This inductive proximity sensor features a threaded barrel design suitable for various industrial applications. With a compact length of 39mm and an 8mm diameter, it offers a 4mm detection range, making it ideal for precise sensing tasks. The device operates effectively within a voltage range of 10 to 30V DC, ensuring versatility across different environments.

Features & Benefits

• IO-Link enabled sensor simplifies data acquisition and integration
• Robust IP67/IP69K rating ensures protection against harsh conditions
• Quasi-flush mount sensor design allows easy installation in tight spaces
• Reverse polarity and short-circuit overload protection enhance reliability
• Shielded proximity sensor minimises interference for accurate readings
• PNP output proximity sensor supports straightforward connection to control systems

Applications

• Ideal for automated assembly lines and robotic
• Suitable for detecting the presence of metal components in machining
• Commonly used in welding processes for reliable part detection
• Effective for monitoring positions in conveyor systems

What communication capabilities does this sensor provide for industrial applications?

The sensor uses the IO-Link V1.1 protocol, allowing for real-time data transfer and integration into smart factory systems. This enables predictive maintenance and efficient data analysis to improve operational performance.

How does the IP67/IP69K rating benefit its use in industrial environments?

The IP67/IP69K rating protects against dust ingress and low-pressure water jets, making it suitable for use in almost any industrial setting, including those exposed to moisture and debris.

What are the key advantages of the PNP output configuration in this sensor?

PNP output provides a simple connection to various automation systems, allowing for easy integration while enabling efficient power management within the connected network.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M8
Supply Voltage	10 → 30 V dc
IP Rating	IP67/IP69K
Length	39mm
Mounting Type	Quasi-Flush
Housing Material	Brass, Nickel Plated
Width	8mm
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Depth	13mm
Short Circuit Overload Protection	Yes
Series	E2E-NEXT

OMRON E2E-X4B1T8-M5 | Inductive Proximity Sensor | M8, 4 mm Range, PNP NO

DOWNLOAD CATALOG

E2E-X4B1T8-M5 Datasheet - E2E-X4B1T8-M5 A700000013143538
