OMRON E2E-X4B1TL8 2M | Inductive Proximity Sensor | M8, 4 mm Range, PNP NO

Name: OMRON E2E-X4B1TL8 2M | Inductive Proximity Sensor | M8, 4 mm Range, PNP NO
Brand: OMRON
SKU: E2E-X4B1TL8 2M
Availability: InStock

Part Number : E2E-X4B1TL8 2M

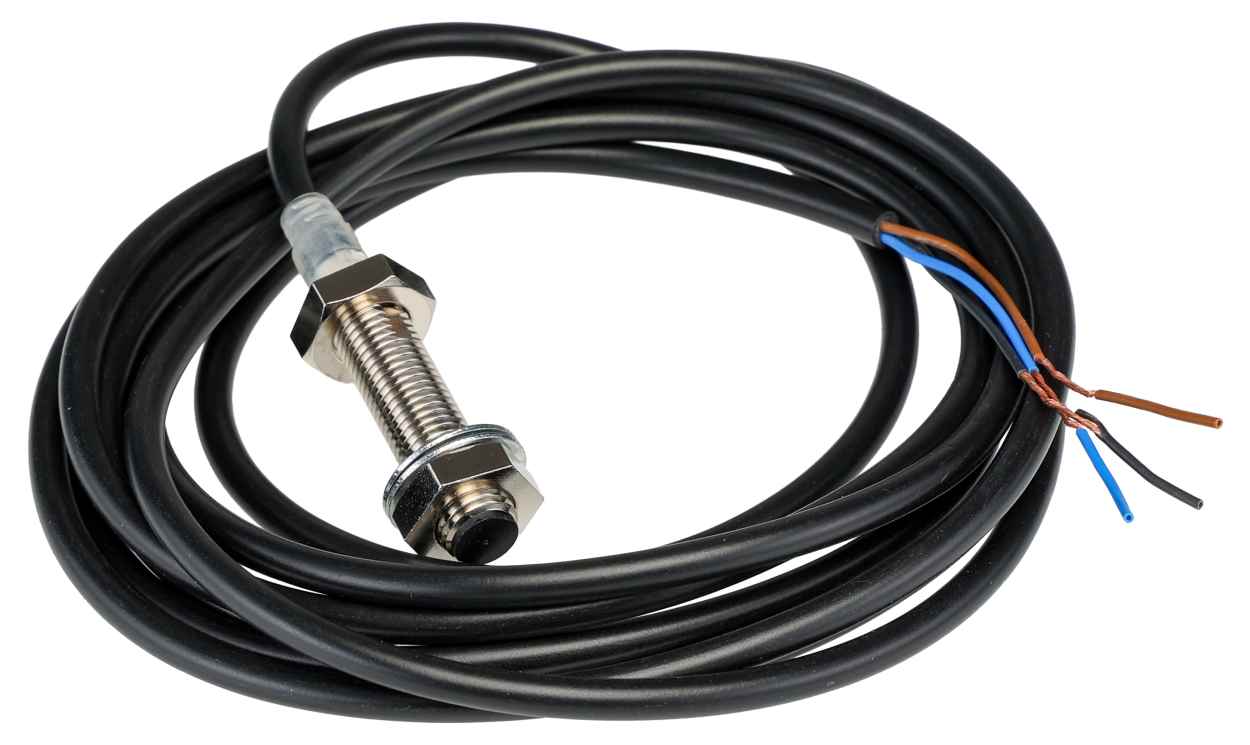

The M8 OMRON E2E-X4B1TL8 2M inductive proximity sensor comes with a 2 m pre-wired cable, a PNP normally open (NO) output, 10 to 30 V DC operation and a 4 mm detection range.

Sensing distance 4 mm; quasi-flush mounting (shielded)
Connection: 2 m cable
Switching frequency 700 Hz
Ingress protection: IP67, IP67G, IP69K
Output: PNP NO
Operating voltage 10 to 30 V DC

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2E-NEXT Series Proximity Sensor, 4mm Detection Range, M8 Thread size - E2E-X4B1TL8 2M

This proximity sensor features inductive sensing technology and is designed for precise detection in various automation applications. The sensor, with dimensions of 47.8mm in length and 8mm in width, boasts a 4mm detection range. With an M8 threaded profile, this sensor is ideal for quasi-flush mounting and comes with a 2m pre-cabled connection for easy installation. The robust brass housing ensures durability in harsh environments, while its IP67 rating guarantees protection against dust and water ingress.

Features & Benefits

• Provides a reliable 4mm detection range for accurate sensing
• Operates on a supply voltage of 10 to 30 V DC
• Offers PNP output for seamless integration into control systems
• Reverse polarity and short-circuit overload protections enhance reliability

Applications

• Used in automated assembly lines for component detection
• Utilised in packaging machinery for product positioning
• Ideal for machine tools to ensure precise operation
• Used in material handling systems for obstacle detection
• Suitable for robotic , enhancing operational efficiency

How does the switching frequency impact the sensor's performance?

The high switching frequency of 700Hz allows for rapid response times, making it suitable for dynamic applications where quick detection and signalling are critical.

What environmental conditions can this sensor withstand?

With an IP67 rating, it can operate effectively in wet or dusty environments, providing dependable performance without the risk of damage.

Can this sensor facilitate predictive maintenance?

Yes, the integrated IO-Link feature enables real-time monitoring and diagnostics, allowing for predictive maintenance and reducing unplanned downtime.

How is the installation process simplified with this sensor?

The pre-cabled design eliminates the need for complex wiring, enabling quick and efficient installation in various applications.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Digital Switching Output Type	PNP
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
Length	47.8mm
IP Rating	IP67, IP67G, IP69K
Mounting Type	Quasi-Flush
Width	8mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Shielding	Shielded
Maximum Switching Frequency	700Hz
Maximum Operating Temperature	+70°C

OMRON E2E-X4B1TL8 2M | Inductive Proximity Sensor | M8, 4 mm Range, PNP NO

DOWNLOAD CATALOG

E2E-X4B1TL8 2M Brochure - IO-Link Series A700000014360272
