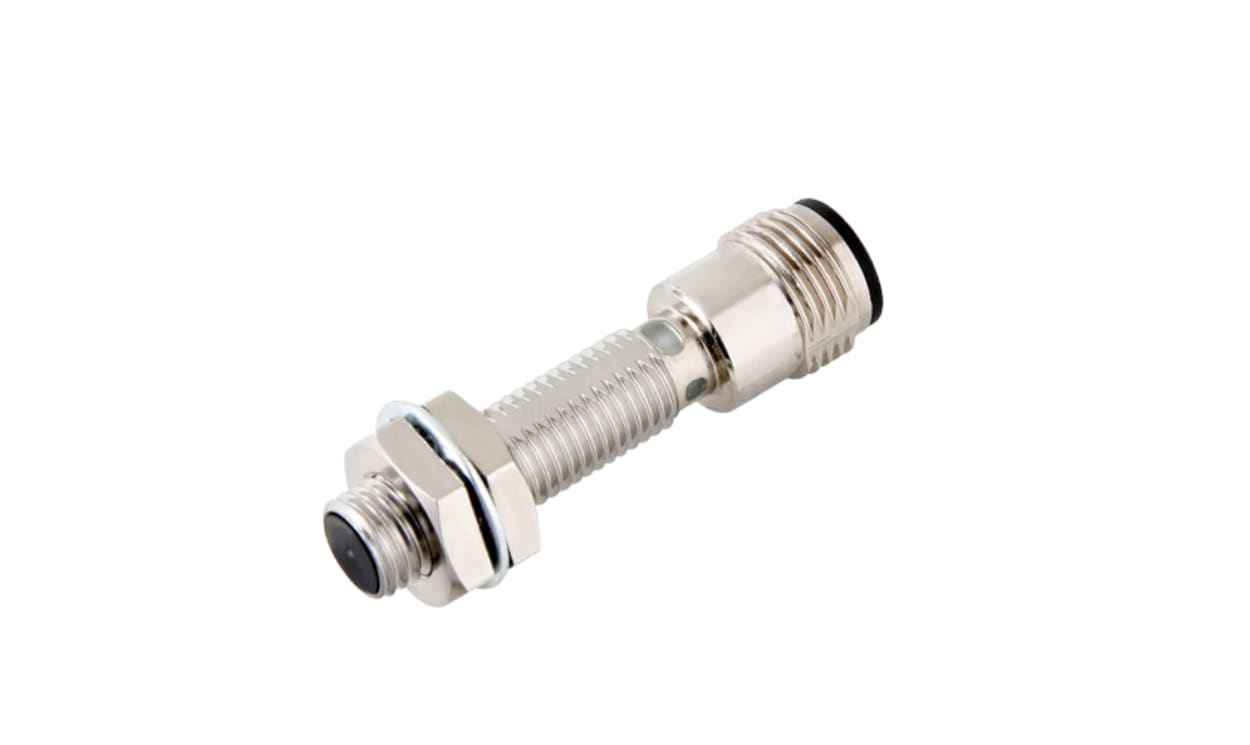

Omron E2E-X4C18-M1, Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, NPN NO, 10 → 30 V dc

Name: Omron E2E-X4C18-M1, Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, NPN NO, 10 → 30 V dc
Brand: OMRON
SKU: E2E-X4C18-M1
Availability: OutOfStock

Part Number : E2E-X4C18-M1

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E2E-NEXT Series Proximity Sensor, 4mm Detection Range, M8 Thread size - E2E-X4C18-M1

This proximity sensor is a highly advanced inductive device designed for precise detection applications. With a compact M8 threaded format, it features an impressive 4mm detection range and is ideally suited for various industrial uses. The robust brass housing ensures durability, while the IP67 and IP69K ratings confer excellent protection against dust and water ingress.

Features & Benefits

• High-temperature tolerance, operational from -25°C to +70°C
• Quasi-flush mounting design facilitates easy installation
• Exceptional shielding to minimise electromagnetic interference
• Integrated reverse polarity and short circuit overload protection

Applications

• Utilised in automation frameworks for reliable position sensing
• Effective on assembly lines for detecting object proximity
• Suitable for harsh environments requiring robust sensors
• Applicable in machine tooling for accurate measurement
• Ideal for conveying systems to monitor product movement

What type of output does this sensor provide and how is it beneficial?

The sensor features an NPN output, which allows it to seamlessly interface with various control systems. This provides flexibility for integration across multiple applications and ensures quick response times in operational settings.

How does the IP rating influence the sensor's placement in industrial environments?

With an IP67 and IP69K rating, it can operate efficiently in environments exposed to water and dust, making it suitable for heavy-duty applications where such conditions may be present, thereby extending its lifespan.

Can the sensor's settings be modified remotely?

Yes, the inclusion of IO-Link technology supports remote adjustments and monitoring, enabling users to configure settings, retrieve data, and perform diagnostics without physical access, streamlining maintenance efforts.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Digital Switching Output Type	NPN
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	43mm
Mounting Type	Flush
Width	8mm
Housing Material	Brass
Maximum DC Voltage	30V
Diameter	M8
Minimum Operating Temperature	-25°C
Switching Frequency	700 Hz
Series	E2E-NEXT
Reverse Polarity Protection	Yes

Omron E2E-X4C18-M1, Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, NPN NO, 10 → 30 V dc
