OMRON E2E-X6B1T12 2M | Inductive Proximity Sensor | M12, 6 mm Range, PNP NO

Name: OMRON E2E-X6B1T12 2M | Inductive Proximity Sensor | M12, 6 mm Range, PNP NO
Brand: OMRON
SKU: E2E-X6B1T12 2M
Availability: InStock

Part Number : E2E-X6B1T12 2M

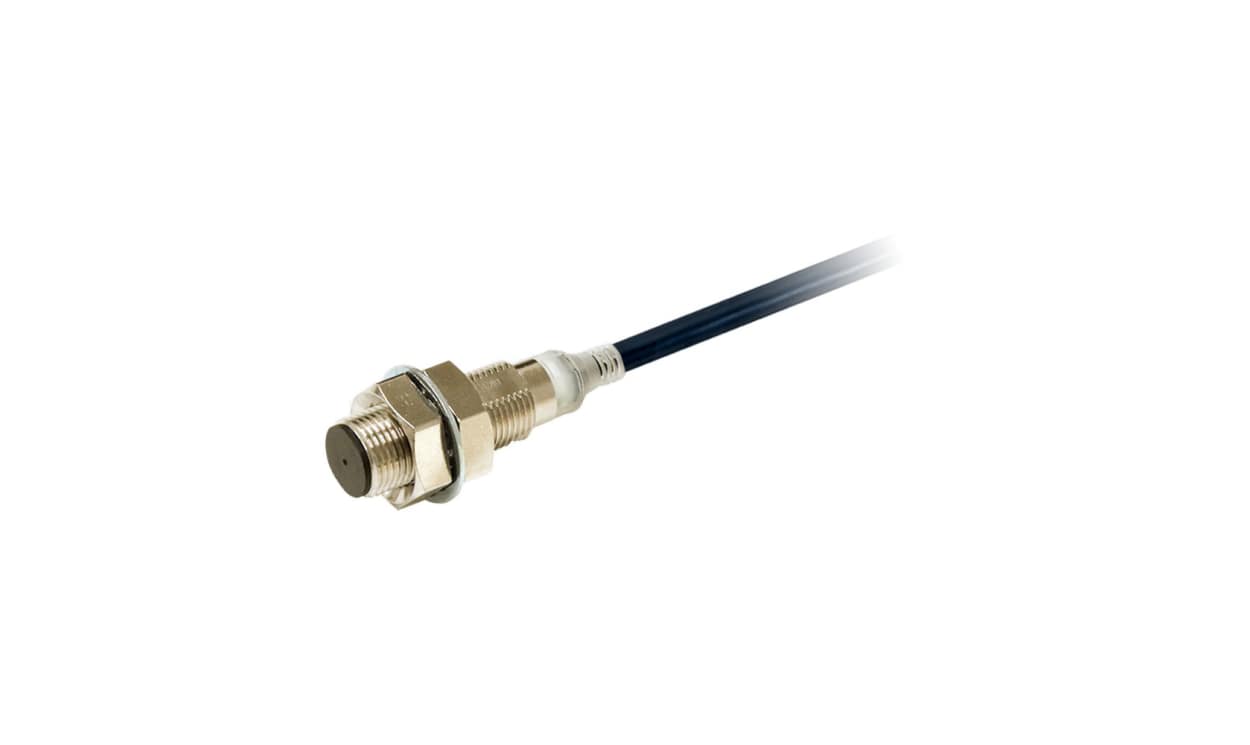

OMRON's E2E-X6B1T12 2M is an M12 inductive proximity sensor offering a PNP normally open (NO) output, a 6 mm detection range, a 2 m pre-wired cable and 10 to 30 V DC operation.

6 mm detection range with quasi-flush mounting
10 to 30 V DC supply
Connection: 2 m cable
Switching frequency 800 Hz, switching current 16 mA
Protection: IP67, IP67G, IP69K
Output: PNP NO

Availability: low stock

Detailed Description
Specifications
Downloads

Long-distance Detection Prevents Unexpected Facility Stoppages
The world's longest sensing distance
With high-brightness LED, the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the "e-jig" (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance
Comes in a wide variation to make sensor selection easy

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	6 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	47.1mm
Mounting Type	Quasi-Flush
Width	12mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	16 mA
Communication Protocol	IO-LINK
Maximum Switching Frequency	800Hz
