OMRON E2E-X6MD18 5M | M8 Inductive Proximity Sensor | 6 mm Range, 2-Wire NO, 5 m Cable

Name: OMRON E2E-X6MD18 5M | M8 Inductive Proximity Sensor | 6 mm Range, 2-Wire NO, 5 m Cable
Brand: OMRON
SKU: E2E-X6MD18 5M
Availability: InStock

Part Number : E2E-X6MD18 5M

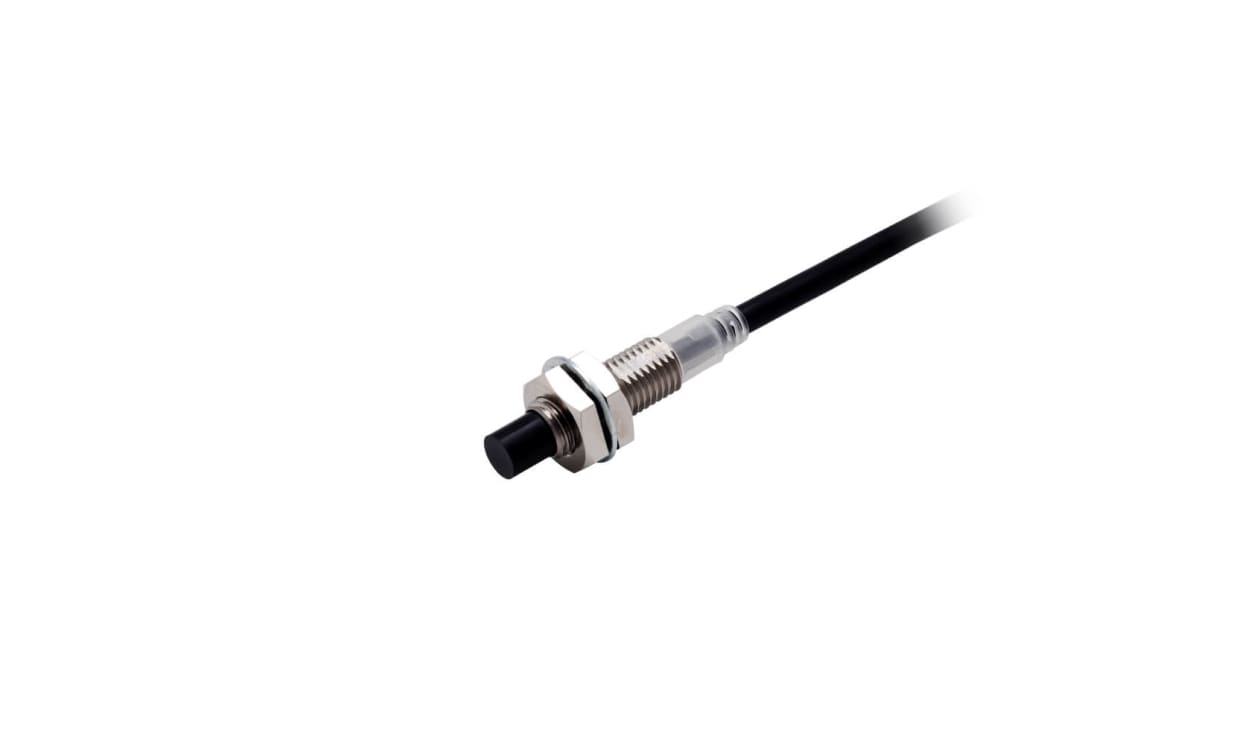

The OMRON E2E-X6MD18 5M is an M8 inductive proximity sensor with a 6 mm sensing distance, a 2-wire normally open (NO) output and a 5 m pre-wired cable. The E2E-X6MD18 5M operates from 10 to 30 V DC and measures 37.8 mm in length, with IP67, IP67G, IP69K protection.

Non-flush mounting, unshielded
Switching frequency up to 250 Hz
Switching current: 3 to 100 mA
Operating temperature -25 to +70 °C

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron proximity sensor is a inductive, DC 2-wire model has stainless steel body material and 6 mm sensing distance, non-shielded type.

Electrical connection - 5 m PVC cable
Normally open (NO) contact configuration
M8 size

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	6 mm
Digital Switching Output Type	2-Wire
Output Function	NO
Cable Length	5m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	37.8mm
Mounting Type	Non-Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	3 → 100 mA
Maximum Operating Temperature	+70°C
Switching Frequency	250 Hz
Shielding	Unshielded
Maximum Switching Frequency	250Hz

OMRON E2E-X6MD18 5M | M8 Inductive Proximity Sensor | 6 mm Range, 2-Wire NO, 5 m Cable
