Omron E2E-X7D1-N 2M, Inductive Threaded Barrel Proximity Sensor, M18, 7 mm Detection, 2-Wire NO, 10 → 30 V dc - generaltechuae

Client Protection

Dedicated Support

Client Protection

Dedicated Support

OMRON E2E-X7D1-N 2M | M18 Inductive Proximity Sensor | 7 mm Range, 2-Wire NO, 2 m Cable

Name: OMRON E2E-X7D1-N 2M | M18 Inductive Proximity Sensor | 7 mm Range, 2-Wire NO, 2 m Cable
Brand: OMRON
SKU: E2E-X7D1-N 2M
Availability: InStock

Part Number : E2E-X7D1-N 2M

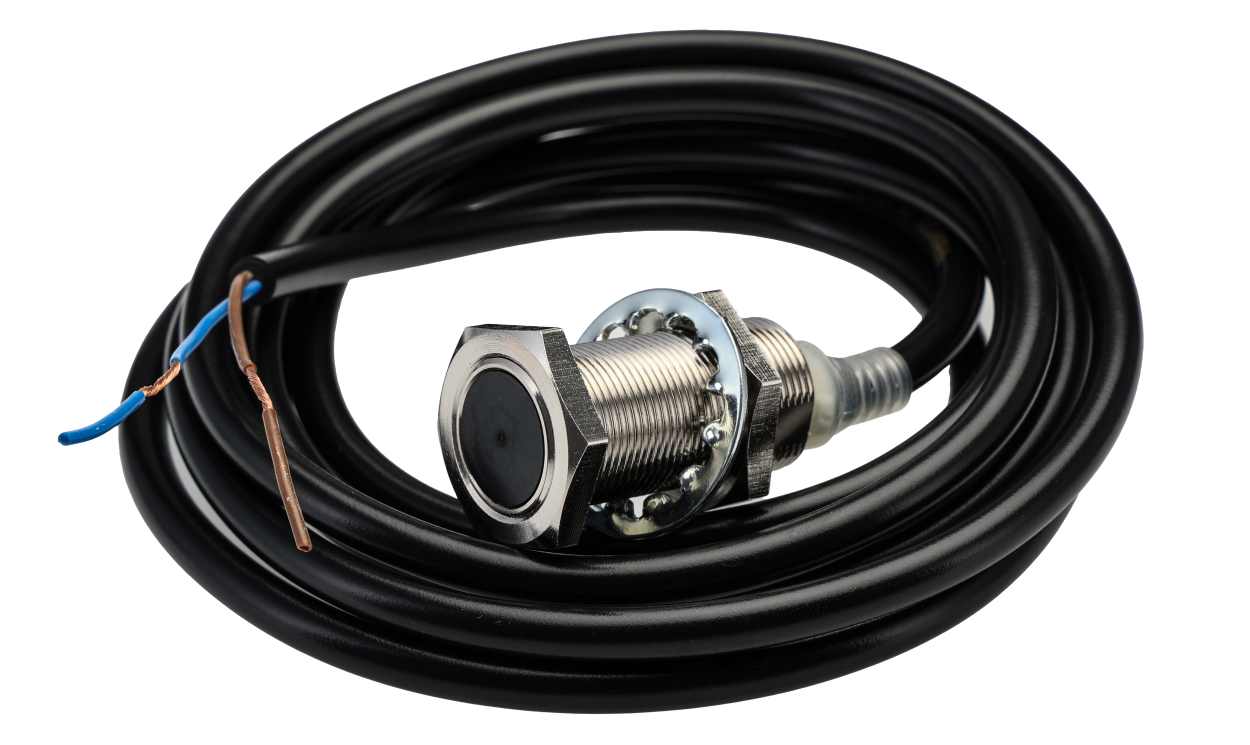

Offering 7 mm detection from an M18 threaded barrel, the OMRON E2E-X7D1-N 2M switches a 2-wire normally open (NO) output and connects via a 2 m pre-wired cable. Rated IP67, the E2E-X7D1-N 2M runs on 10 to 30 V DC and measures 55 mm in length.

Mounting type: flush
Works from -25 to +70 °C
Nickel-plated brass housing
Approvals: CE
Series: E2E

Availability: low stock

Detailed Description
Specifications
Downloads

Omron Series E2E Proximity Sensor, 7mm Detection Range, Nickel Plated Brass Housing - E2E-X7D1-N 2M

This inductive proximity sensor is designed for reliable performance in industrial settings. The M18 threaded barrel sensor features a 7mm detection range, suitable for a variety of automation applications. With a supply voltage range of 10 to 30 V DC, it supports flexible installation and operational requirements while ensuring protection with an IP67 rating against dust and water.

Features & Benefits

• Designed with a nickel-plated brass body for durability
• 2-wire configuration simplifies installation and integration
• Suitable for flush mounting to conserve space in installations
• Compatible with automotive assembly lines due to oil resistance

Applications

• Utilised in automotive assembly for reliable component detection
• Ideal for use in manufacturing and packaging automation
• Used in conveyor systems for object sensing
• Used effectively in robotics for proximity detection
• Suitable for detecting metal objects in harsh industrial environments

What are the temperature operating limits for this sensor?

The sensor operates effectively within a temperature range of -25°C to +70°C, making it suitable for various industrial environments.

How does the IP67 rating benefit my application?

An IP67 rating protects the sensor from dust and immersion in water, ensuring durability and reliability in harsh working conditions.

Can this sensor withstand exposure to automotive lubricants?

Yes, it has been tested for oil resistance against common lubricants used in the automotive industry, ensuring reliable operation in such environments.

What is the significance of the detection range for my automation needs?

A detection range of 7mm allows for accurate proximity sensing, essential for operations where precise detection of metal objects is required.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	7 mm
Digital Switching Output Type	2-Wire
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 30 V dc
Length	55mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Nickel Plated Brass
Maximum DC Voltage	30V
Diameter	29 mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Standards Met	CE
Series	E2E

OMRON E2E-X7D1-N 2M | M18 Inductive Proximity Sensor | 7 mm Range, 2-Wire NO, 2 m Cable

DOWNLOAD CATALOG

E2E-X7D1-N 2M Brochure - IO-Link Makes Communication Down to the Sensor Level Visible A700000013470313

OMRON E2E-X7D1-N 2M | M18 Inductive Proximity Sensor | 7 mm Range, 2-Wire NO, 2 m Cable
