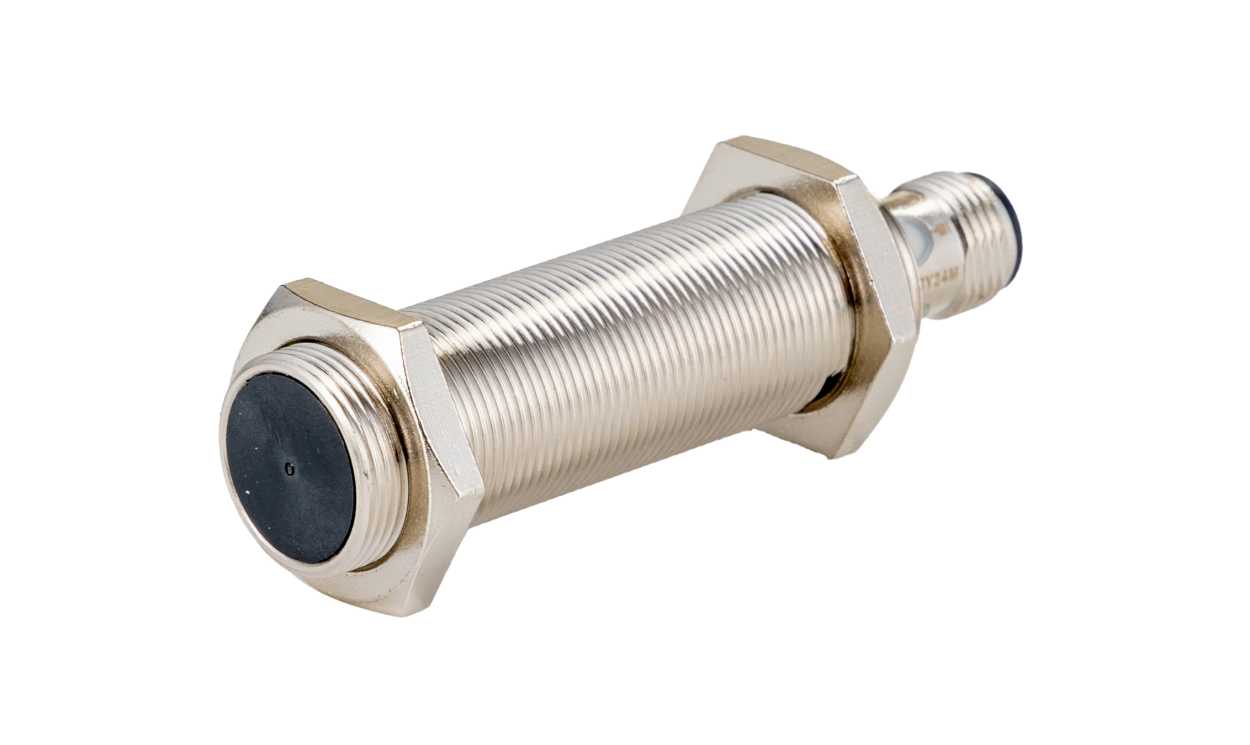

OMRON E2E-X8B2L18-M1 | M18 Inductive Proximity Sensor | 8 mm Range, PNP NC, M12 Connector

Name: OMRON E2E-X8B2L18-M1 | M18 Inductive Proximity Sensor | 8 mm Range, PNP NC, M12 Connector
Brand: OMRON
SKU: E2E-X8B2L18-M1
Availability: InStock

Part Number : E2E-X8B2L18-M1

The OMRON E2E-X8B2L18-M1 is an M18 inductive proximity sensor with an 8 mm sensing distance, a PNP normally closed (NC) output and an M12 connector. The E2E-X8B2L18-M1 operates from 10 to 30 V DC and measures 75 mm in length, with IP67, IP69K protection.

Quasi-flush mounting, quasi-shielded
Switching frequency up to 500 Hz
Switching current: 200 mA
Operating temperature -25 to +70 °C
Housing material: brass
Short-circuit and overload protection

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E2E Series Proximity Sensor, 8mm Detection Range, IP67/IP69K - E2E-X8B2L18-M1

This proximity sensor is designed for accurate detection in various industrial environments. Its inductive technology ensures dependable operation, making it appropriate for automation tasks that require non-contact sensing. This product is vital for improving operational efficiency in electronics and mechanical applications.

Features & Benefits

• Quasi-shielded design alleviates interference from metal objects
• PNP digital switching output facilitates integration with automated systems
• Compact threaded barrel style allows for various installation options
• IP67 and IP69K ratings make it suitable for harsh conditions
• Features reverse polarity and short circuit protection for increased durability

Applications

• Used in automated assembly lines for object detection
• Applicable in packaging machines to monitor product flow
• Ideal for detecting position in conveyor systems
• Utilised in robotics for proximity sensing in navigation

How does the sensor perform in extreme temperatures?

It operates effectively within a temperature range of -25 to +70°C, making it suitable for diverse environments.

What is the maximum switching frequency?

The device can attain a maximum switching frequency of 500Hz.

Can it be used in wet environments?

Yes, its IP67 and IP69K ratings ensure waterproof performance.

What type of output does it provide?

It features a PNP digital switching output for straightforward connectivity.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Digital Switching Output Type	PNP
Output Function	NC
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	75mm
IP Rating	IP67, IP69K
Mounting Type	Quasi-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	200 mA
Short Circuit Overload Protection	Yes
Maximum Operating Temperature	+70°C
Shielding	Quasi-Shielded
Maximum Switching Frequency	500Hz
