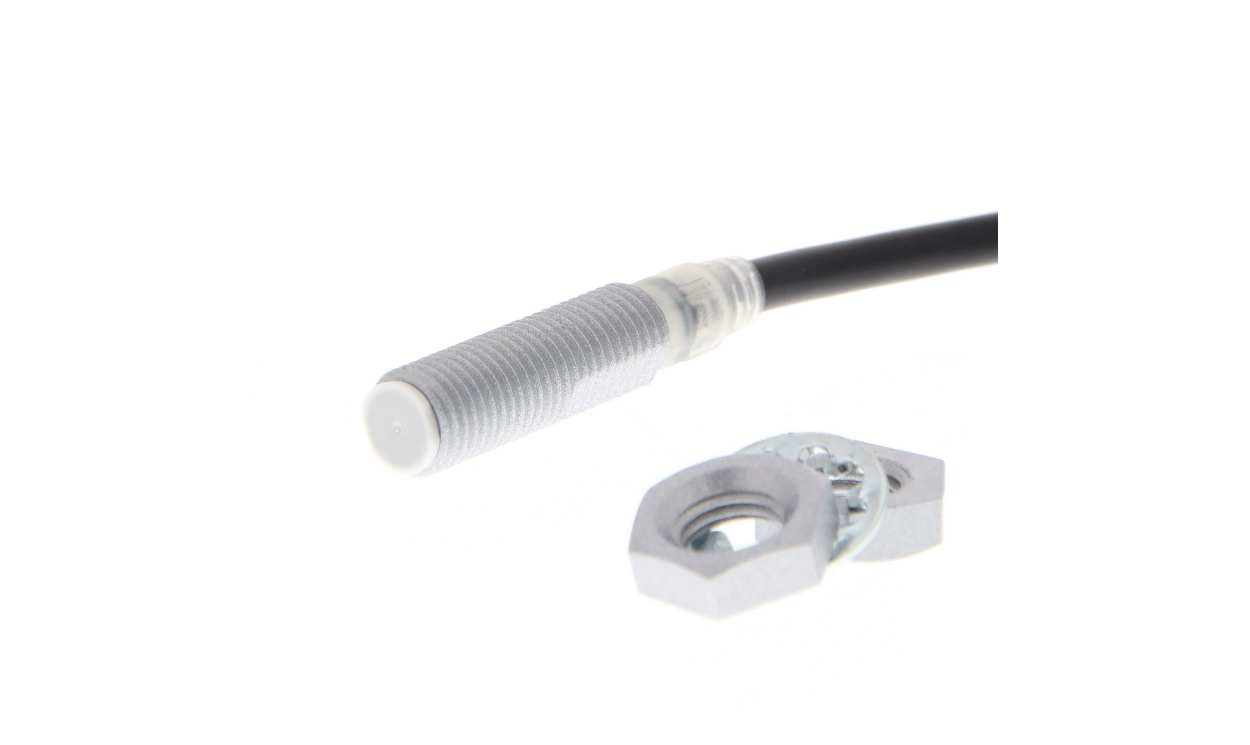

OMRON E2EQ-X3D28 2M | M8 Inductive Proximity Sensor | 3 mm Range, 2-Wire NC, 2 m Cable

Name: OMRON E2EQ-X3D28 2M | M8 Inductive Proximity Sensor | 3 mm Range, 2-Wire NC, 2 m Cable
Brand: OMRON
SKU: E2EQ-X3D28 2M
Availability: InStock

Part Number : E2EQ-X3D28 2M

Offering 3 mm detection from an M8 threaded barrel, the OMRON E2EQ-X3D28 2M switches a 2-wire normally closed (NC) output and connects via a 2 m pre-wired cable. Power the E2EQ-X3D28 2M from 10 to 30 V DC; ingress protection is IP67 and the body is 38 mm long.

Mounting: flush (shielded)
Load (switching) current 3 to 100 mA
Works from -25 to +70 °C
Maximum switching frequency: 250 Hz

Availability: low stock

Detailed Description
Specifications

The Omron proximity sensor has an exceptional sensing range which reduces malfunctions and collisions. With high-brightness LED, the indicator is visible anywhere from 360°. Cables with enhanced oil resistance enabled have 2-year oil resistance.

UL certification (UL60947-5-2)
Protection Rating IP67G

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Detection Range	3 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	2-Wire
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	38mm
Mounting Type	Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	3 → 100 mA
Maximum Switching Frequency	250Hz
Shielding	Shielded
Maximum Operating Temperature	+70°C
Switching Frequency	250 Hz
