OMRON E2EW-X10B1T18-M1 | M18 Inductive Proximity Sensor | 10 mm Range, PNP NO, M12 Connector

Name: OMRON E2EW-X10B1T18-M1 | M18 Inductive Proximity Sensor | 10 mm Range, PNP NO, M12 Connector
Brand: OMRON
SKU: E2EW-X10B1T18-M1
Availability: InStock

Part Number : E2EW-X10B1T18-M1

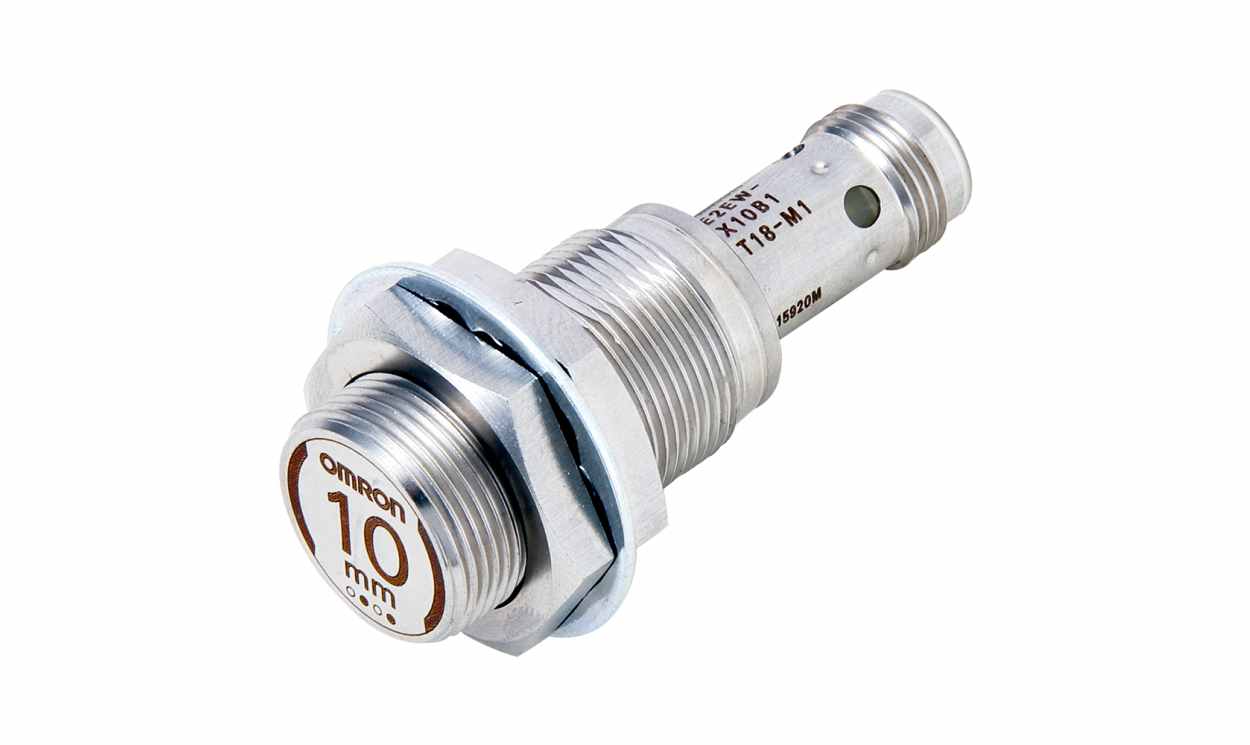

With an M12 connector and a PNP normally open (NO) output, the OMRON E2EW-X10B1T18-M1 is an inductive sensor that detects targets at up to 10 mm from an M18 threaded barrel. Power the E2EW-X10B1T18-M1 from 10 to 30 V DC; ingress protection is IP67 and the body is 41 mm long.

Flush mounting, shielded
Switching current: 200 mA
Operating temperature 0 to +85 °C
OMRON E2EW series

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron E2EW series shielded proximity sensor offer equivalent sensing distances for both iron and aluminium. Laser printing sensing distance on its active face to prevent replacement errors. It has 10 mm sensing distance and robust full stainless steel housing with metal sensing face.

Flush mounted
NO operation mode
UL and CSA certification
IP67 degree of protection (IP)

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	10 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	41mm
IP Rating	IP67
Mounting Type	Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	0°C
Switching Frequency	2 Hz
Maximum Operating Temperature	+85°C
Switching Current	200 mA
Shielding	Shielded
Series	E2EW
Maximum Switching Frequency	2Hz
