OMRON E2EW-X10C118 2M | M18 Inductive Proximity Sensor | 10 mm Range, NPN NO, 2 m Cable

Name: OMRON E2EW-X10C118 2M | M18 Inductive Proximity Sensor | 10 mm Range, NPN NO, 2 m Cable
Brand: OMRON
SKU: E2EW-X10C118 2M
Availability: InStock

Part Number : E2EW-X10C118 2M

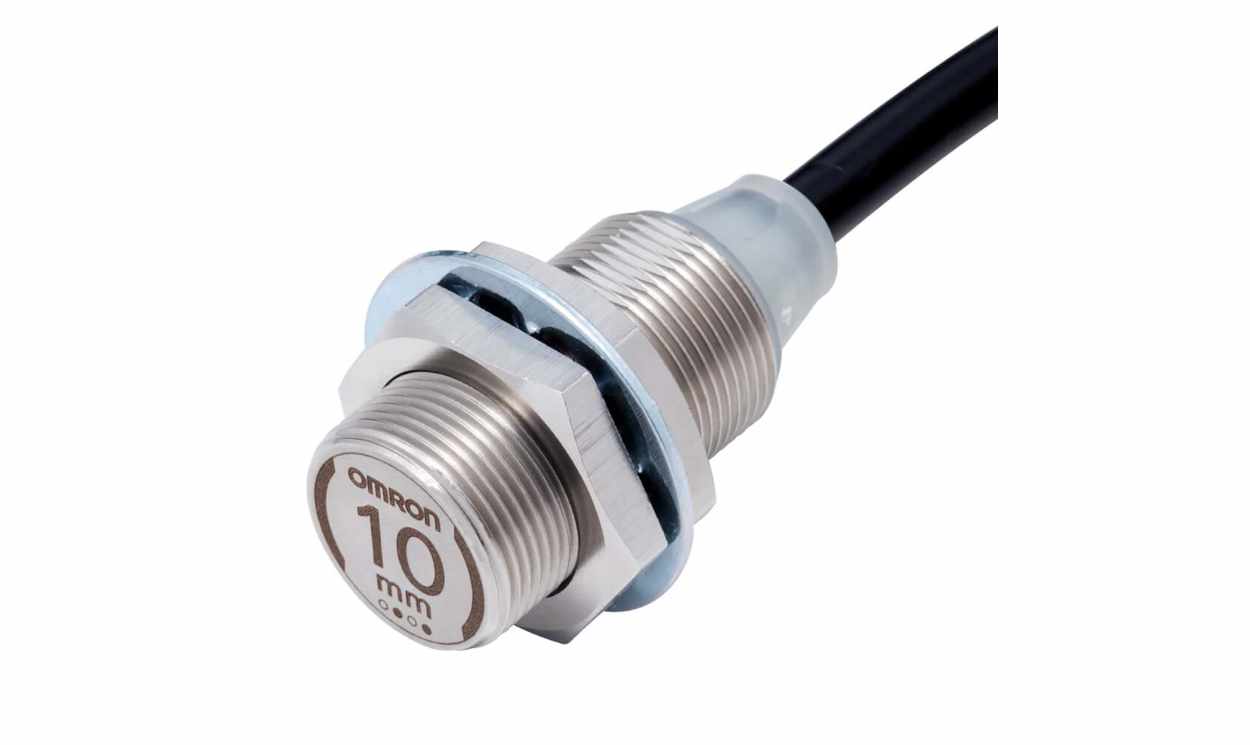

This flush-mounting M18 inductive proximity sensor, OMRON E2EW-X10C118 2M, has a 10 mm sensing range and provides an NPN normally open (NO) output through a 2 m pre-wired cable. The E2EW-X10C118 2M operates from 10 to 30 V DC and measures 30 mm in length, with IP67 protection.

Mounting: flush (shielded)
Load (switching) current 200 mA
Works from 0 to +85 °C

Availability: low stock

Detailed Description
Specifications

The Omron Electronics E2EW series welding proximity sensors has DC 3 wire model and M30 thread size. The sensor has the full metal body and offers equivalent sensing distances for both iron and aluminium.

Withstands in harsh environments
Clear status visualization
Stable detection

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	10 mm
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	30mm
Mounting Type	Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	0°C
Maximum Switching Frequency	2Hz
Switching Current	200 mA
Switching Frequency	2 Hz
Maximum Operating Temperature	+85°C
Shielding	Shielded
