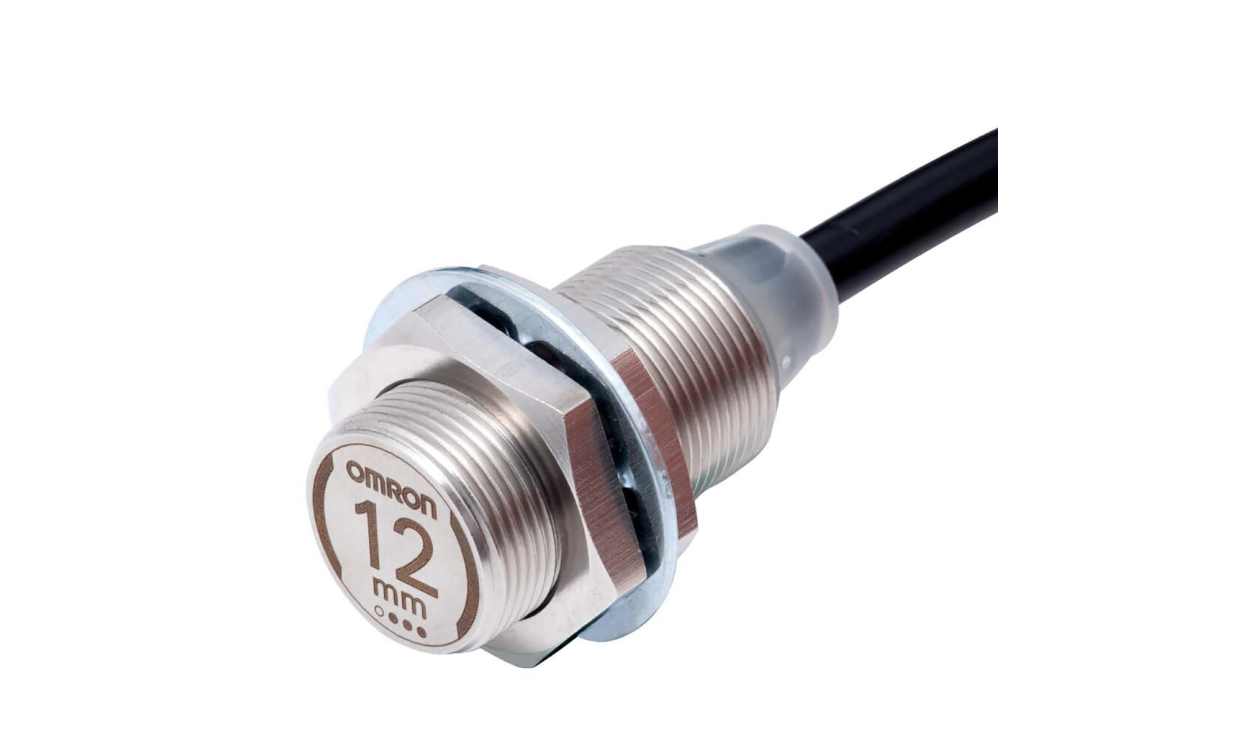

OMRON E2EW-X12C118 2M | M18 Inductive Proximity Sensor | 12 mm Range, NPN NO, 2 m Cable

Name: OMRON E2EW-X12C118 2M | M18 Inductive Proximity Sensor | 12 mm Range, NPN NO, 2 m Cable
Brand: OMRON
SKU: E2EW-X12C118 2M
Availability: InStock

Part Number : E2EW-X12C118 2M

With a 2 m pre-wired cable and an NPN normally open (NO) output, the OMRON E2EW-X12C118 2M is an inductive sensor that detects targets at up to 12 mm from an M18 threaded barrel. Power the E2EW-X12C118 2M from 10 to 30 V DC; ingress protection is IP67 and the body is 30 mm long.

Flush mounting, shielded
Minimum operating temperature: 0 °C
OMRON E2EW series
Switching current: 200 mA

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron Electronics E2EW series welding proximity sensors has DC 3 wire model and M30 thread size. The sensor has the full metal body and offers equivalent sensing distances for both iron and aluminium.

Withstands in harsh environments
Clear status visualization
Stable detection

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	12 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
Length	30mm
IP Rating	IP67
Mounting Type	Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	0°C
Switching Current	200 mA
Maximum Switching Frequency	2Hz
Shielding	Shielded
Series	E2EW
Switching Frequency	2 Hz
