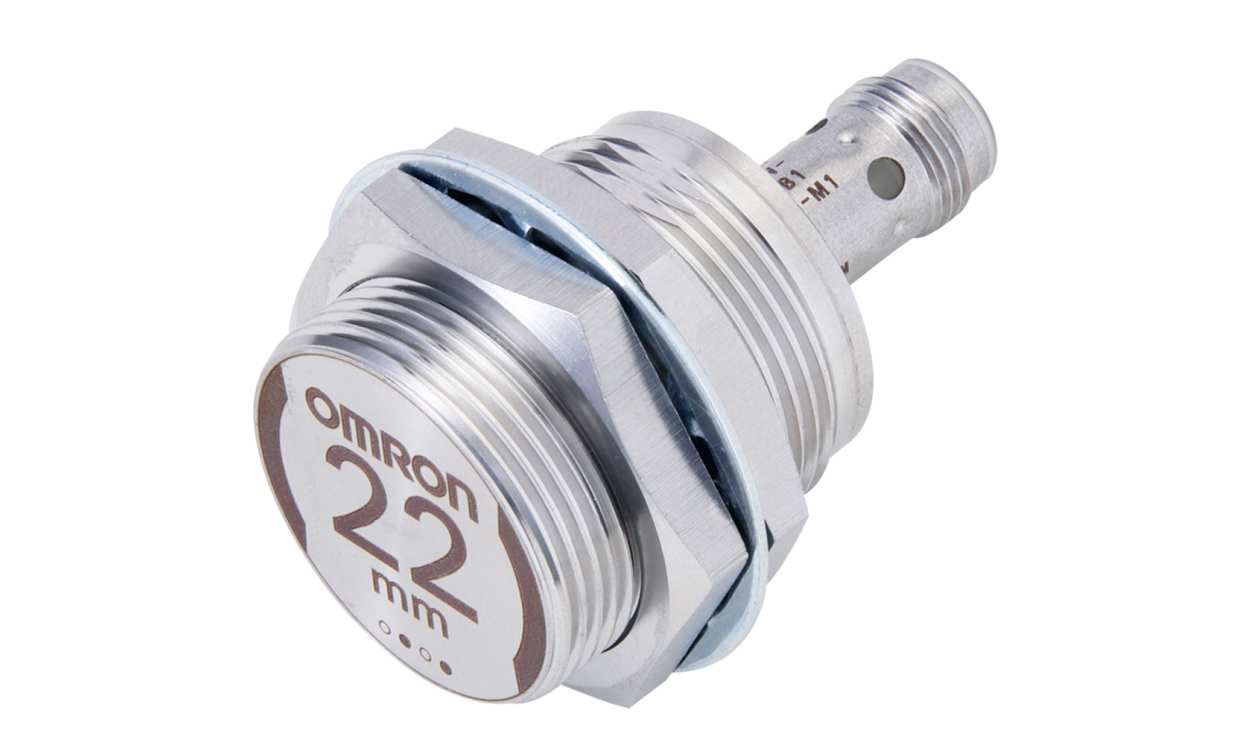

OMRON E2EW-X22C330-M1 | Threaded Inductive Proximity Sensor | M30, 22 mm Sensing, NPN NO+NC

Name: OMRON E2EW-X22C330-M1 | Threaded Inductive Proximity Sensor | M30, 22 mm Sensing, NPN NO+NC
Brand: OMRON
SKU: E2EW-X22C330-M1
Availability: InStock

Part Number : E2EW-X22C330-M1

With an NPN NO+NC output and a 22 mm sensing distance, the M30 OMRON E2EW-X22C330-M1 threaded inductive proximity sensor connects by an M12 connector. The E2EW-X22C330-M1 runs on 10 to 30 V DC, is rated IP67 and works from 0 to +85 °C.

M30 thread size, 22 mm detection range
Output: NPN NO+NC, switching current 100 mA
Supply voltage 10 to 30 V DC; connection by an M12 connector
IP67 rated, operating temperature 0 to +85 °C
Quasi-flush mounting (shielded), E2EW series
Length 54.4 mm

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron E2EW series shielded proximity sensor offer equivalent sensing distances for both iron and aluminium. Laser printing sensing distance on its active face to prevent replacement errors. It has 22 mm sensing distance and robust full stainless steel housing with metal sensing face.

Quasi-flush mounted
NO + NC operation mode
UL and CSA certification
IP67 degree of protection (IP)

Brand	Omron
Thread Size	M30
Sensor Technology	Inductive
Detection Range	22 mm
Body Style	Threaded Barrel
Output Function	NO+NC
Digital Switching Output Type	NPN
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	54.4mm
IP Rating	IP67
Mounting Type	Quasi-Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	0°C
Shielding	Shielded
Switching Frequency	2 Hz
Maximum Operating Temperature	+85°C
Maximum Switching Frequency	2Hz
Switching Current	100 mA
Series	E2EW
