OMRON E2EW-X6C312-M1 | Threaded Inductive Proximity Sensor | M12, 6 mm Sensing, NPN NO+NC

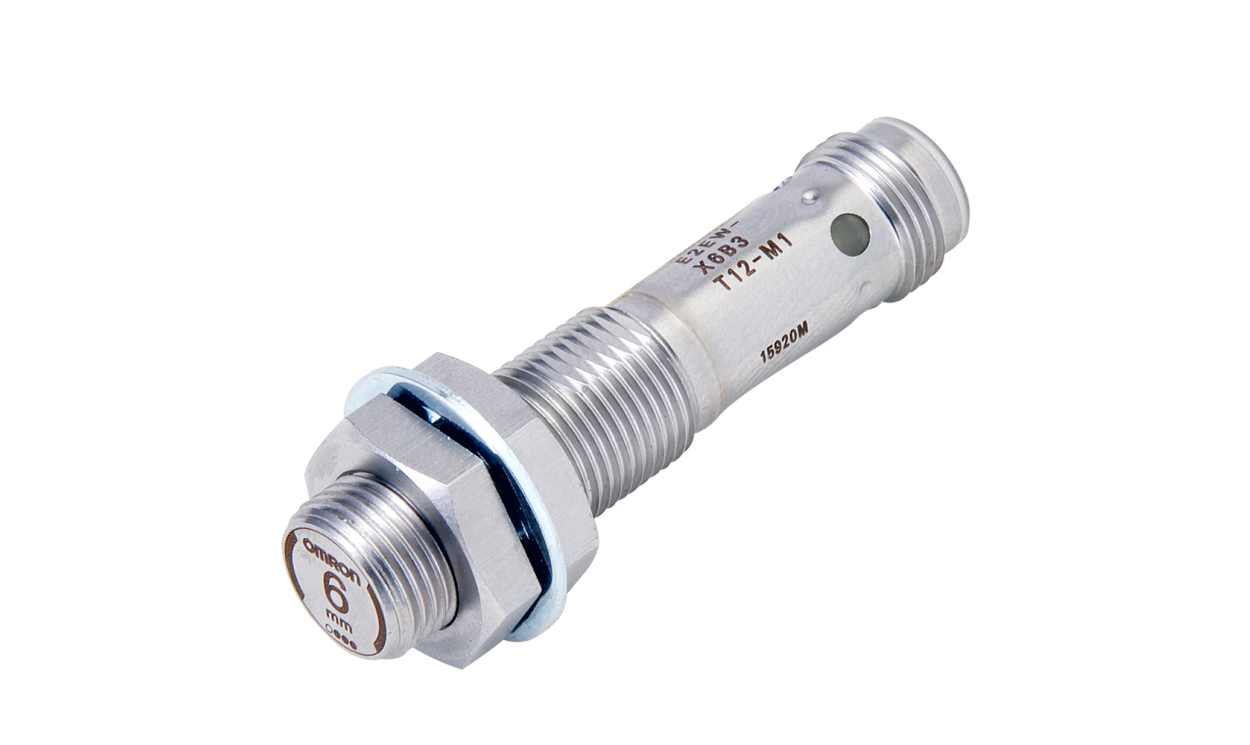

Name: OMRON E2EW-X6C312-M1 | Threaded Inductive Proximity Sensor | M12, 6 mm Sensing, NPN NO+NC
Brand: OMRON
SKU: E2EW-X6C312-M1
Availability: InStock

Part Number : E2EW-X6C312-M1

OMRON E2EW-X6C312-M1: 6 mm sensing distance, an NPN NO+NC output and an M12 connector, in an M12 threaded inductive proximity sensor housing. The E2EW-X6C312-M1 runs on 10 to 30 V DC, is rated IP67 and works from 0 to +85 °C.

6 mm sensing distance, M12 thread
Output: NPN NO+NC, switching current 100 mA
Supply voltage 10 to 30 V DC; connection by an M12 connector
IP67 rated, operating temperature 0 to +85 °C
Flush mounting (shielded), E2EW series
Length 54.4 mm

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron E2EW series shielded proximity sensor offer equivalent sensing distances for both iron and aluminium. Laser printing sensing distance on its active face to prevent replacement errors. It has 6 mm sensing distance and robust full stainless steel housing with metal sensing face.

Quasi-flush mounted
NO + NC operation mode
UL and CSA certification
IP67 degree of protection (IP)

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	6 mm
Digital Switching Output Type	NPN
Output Function	NO+NC
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	54.4mm
IP Rating	IP67
Mounting Type	Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	0°C
Series	E2EW
Maximum Switching Frequency	2Hz
Switching Frequency	2 Hz
Maximum Operating Temperature	+85°C
Shielding	Shielded
Switching Current	100 mA
