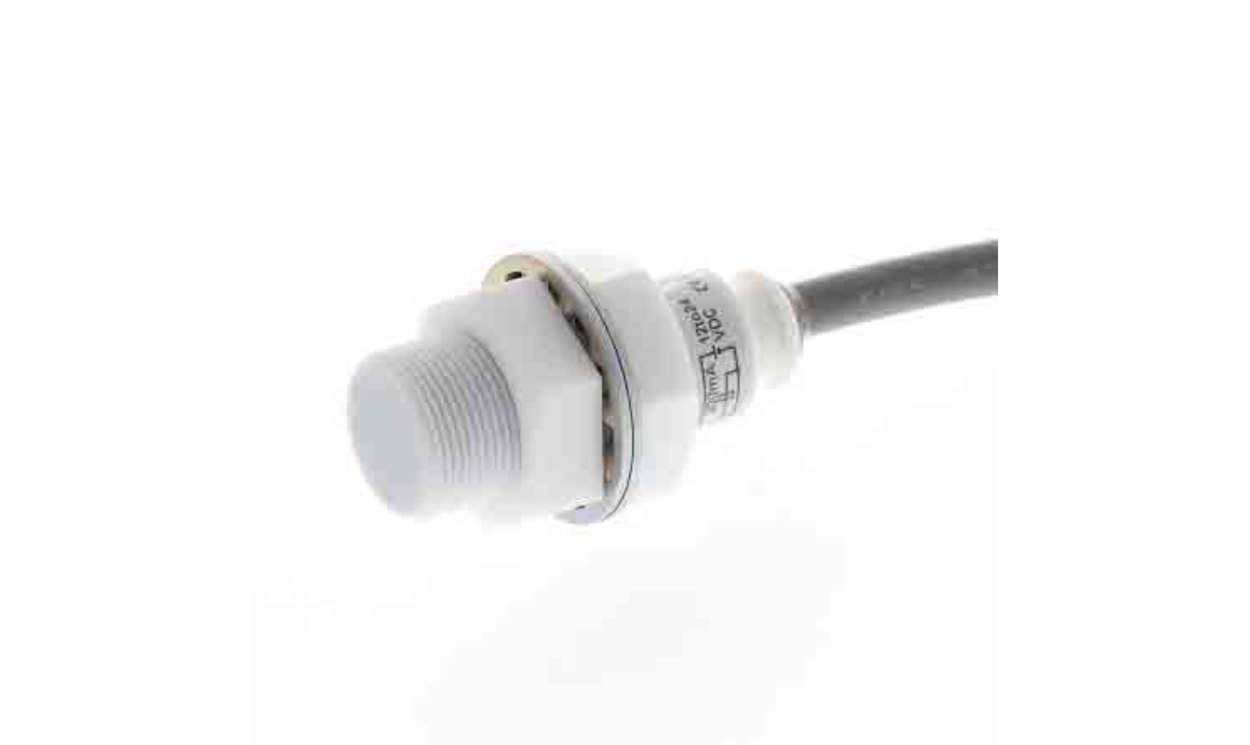

Omron E2FQ-X5F1, Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, PNP NO, 12 → 24 V dc

Name: Omron E2FQ-X5F1, Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, PNP NO, 12 → 24 V dc
Brand: OMRON
SKU: E2FQ-X5F1
Availability: InStock

Part Number : E2FQ-X5F1

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron proximity sensor is the chemical resistant inductive proximity sensor with PTFE body. It is DC, 3-wire model. It is pre-wired sensor with 2m cable length. It is shielded, short body sensor.

It has fluoro plastic housing for highest chemical and detergent resistance
It provides protection against reverse polarity, load short circuit and surge voltage
It has IP67 degree of protection
It has operating/storage temperature range from -25°C to 70°

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	5 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	47mm
Mounting Type	Flush
Maximum DC Voltage	24V
Minimum Operating Temperature	-25°C
Shielding	Shielded
Switching Current	200 mA
Maximum Operating Temperature	+70°C
Switching Frequency	600 Hz
Series	E2FQ
