Omron E2K-L26MC1 2M, Capacitive Block Proximity Sensor, 26 mm Detection, NPN NO, 10.8 → 30 V dc

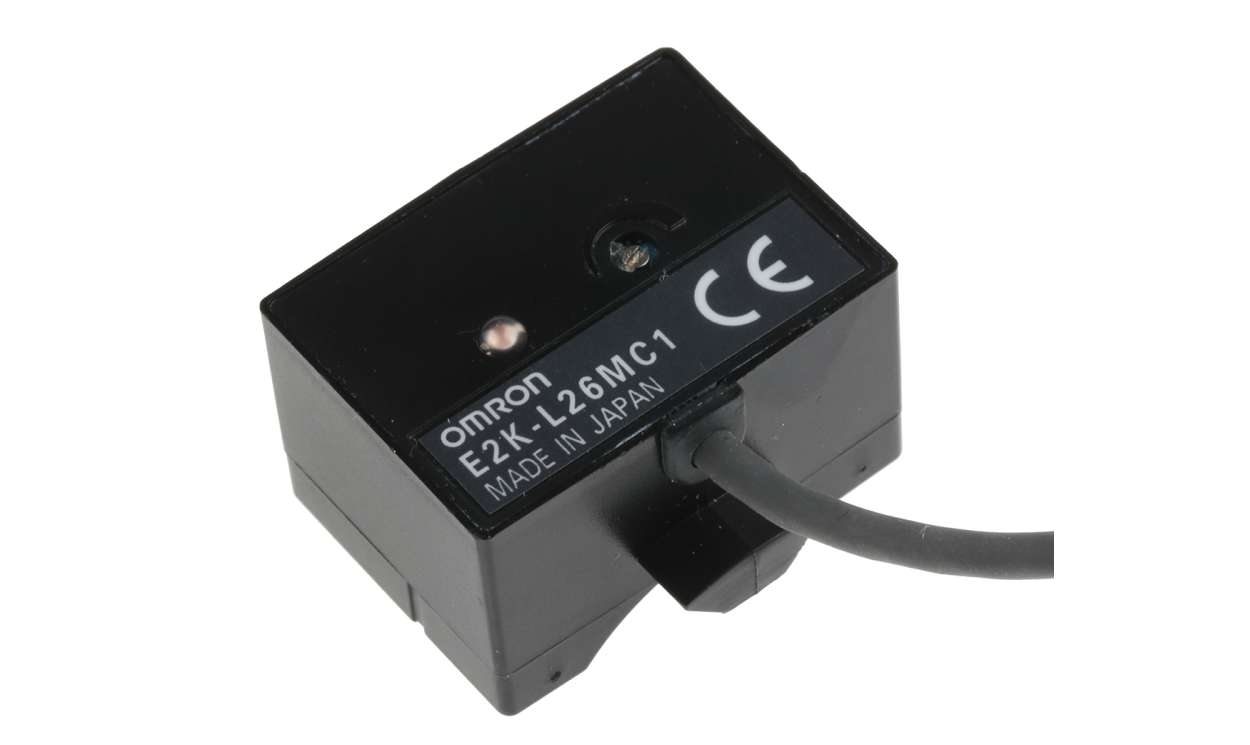

Name: Omron E2K-L26MC1 2M, Capacitive Block Proximity Sensor, 26 mm Detection, NPN NO, 10.8 → 30 V dc
Brand: OMRON
SKU: E2K-L26MC1 2M
Availability: OutOfStock

Part Number : E2K-L26MC1 2M

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E2K Series Proximity Sensor, 10.8 to 30V DC Supply Voltage, IP66 - E2K-L26MC1 2M

This proximity sensor enhances automation and electronic systems through effective detection and accuracy. Utilising capacitive sensing technology, it identifies a variety of materials within a detection range of up to 26mm. The sensor's robust construction is tailored for industrial applications, making it essential for professionals in the electrical and mechanical sectors.

Features & Benefits

• Includes a 2m pre-cabled connection for straightforward installation
• Can withstand temperatures from 0°C to +55°C

Applications

• Employed in assembly lines for accurate object detection
• Used in packaging solutions to confirm material presence
• Suitable for automation tasks in manufacturing settings
• Applied in robotics for effective material handling

What is the maximum detection range?

The maximum detection range is 26mm, providing consistent sensing capabilities for various applications.

What is the switching current rating?

The switching current is rated at 100mA, permitting effective performance across various applications.

How do I connect this sensor?

It comes with a pre-cabled length of 2m, making installation easy with direct connections.

What materials can it detect effectively?

This sensor works well with a range of materials, including metallic and non-metallic substances, enhancing its versatility.

Omron

Brand	Omron
Sensor Technology	Capacitive
Body Style	Block
Detection Range	26 mm
Digital Switching Output Type	NPN
Output Function	NO
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10.8 → 30 V dc
IP Rating	IP66
Length	33mm
Housing Material	ABS
Width	34mm
Maximum DC Voltage	30V
Diameter	12 → 26 mm
Minimum Operating Temperature	0°C
Switching Current	100 mA
Shielding	Unshielded
Depth	20mm
Maximum Operating Temperature	+55°C
