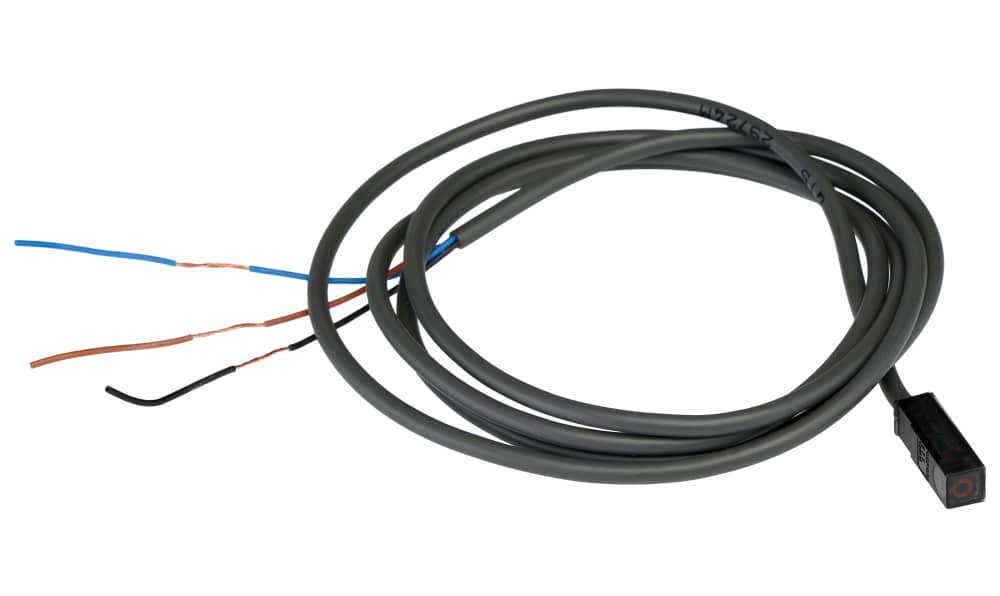

OMRON E2S-Q15 1M | Block Inductive Proximity Sensor | 1.6 mm Sensing, PNP NO, 1 m Cable
The OMRON E2S-Q15 1M is a block-style inductive proximity sensor with a 1.6 mm sensing distance and a PNP normally open output, connected by a 1 m pre-wired cable. Listed data for E2S-Q15 1M include IP67 protection, a 12 to 24 V DC supply and an operating range of -25 to +70 °C.
- Detection range: 1.6 mm
- Output: PNP NO, switching current 50 mA

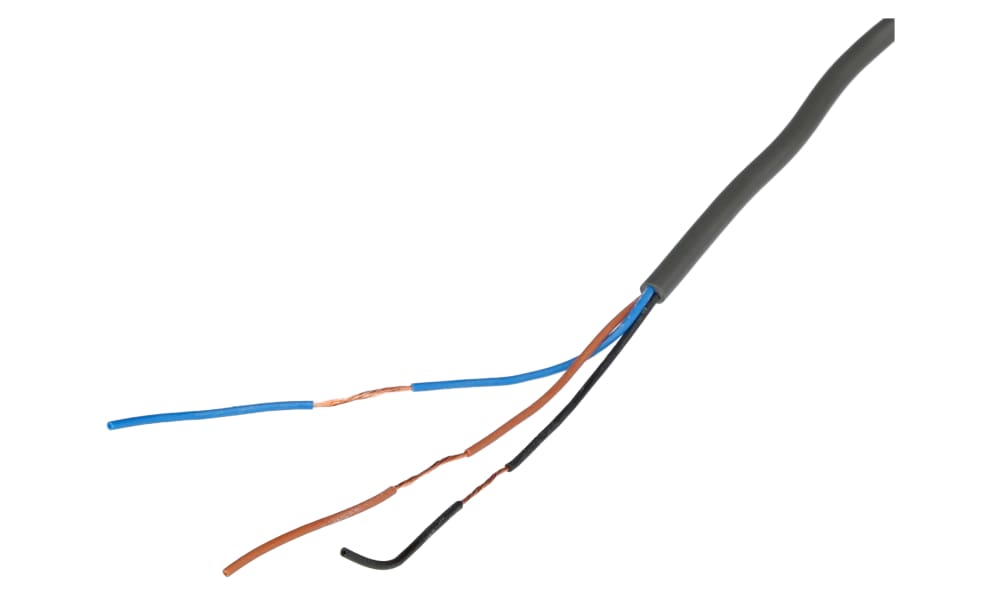

- Supply voltage 12 to 24 V DC; connection by a 1 m pre-wired cable
- IP67 rated, operating temperature -25 to +70 °C
- Switching frequency 1 kHz, E2S series
- Length 25.1 mm, depth 6.4 mm
- Detailed Description
- Specifications
- Downloads
Omron E2S Series Proximity Sensor, 1.6mm Detection Range, 1m Cable Length - E2S-Q15 1M
Features & Benefits
• PNP output configuration for straightforward integration
• Compact block design fits easily into tight spaces
• Reverse polarity protection safeguards against incorrect connections
Applications
• Ideal for position sensing in machinery
• Used in assembly lines for quality control
• Suitable for use in harsh manufacturing environments
• Integrated with robotic systems for precise movement tracking
What makes the sensor suitable for use in demanding external environments?
How does the sensing technology contribute to efficiency in automation tasks?
What are the benefits of using a PNP output configuration with this sensor?
How does the operating temperature range affect the sensor's application?
| Brand | Omron |
| Series | E2S |
| Sensor Technology | Inductive |
| Body Style | Block |
| Detection Range | 1.6 mm (0.063 in) |
| Output Function | NO |
| Connection Type | Pre-Cabled |
| Supply Voltage | 12 → 24 V dc |
| Length | 25.1 mm (0.988 in) |
| IP Rating | IP67 |
| Digital Switching Output Type | PNP |
| Mounting Type | Flush |
| Shielding | Unshielded |
| Switching Current | 50 mA |
| Cable Length | 1 m (3.28 ft) |
| Maximum DC Voltage | 24V |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Maximum Switching Frequency | 1kHz |
| Depth | 6.4 mm (0.252 in) |
