Omron E3JK-RR12 2M, Retroreflective Photoelectric Sensor, Block Sensor, 10 mm → 10 m Detection Range

Name: Omron E3JK-RR12 2M, Retroreflective Photoelectric Sensor, Block Sensor, 10 mm → 10 m Detection Range
Brand: OMRON
SKU: E3JK-RR12 2M
Availability: OutOfStock

Part Number : E3JK-RR12 2M

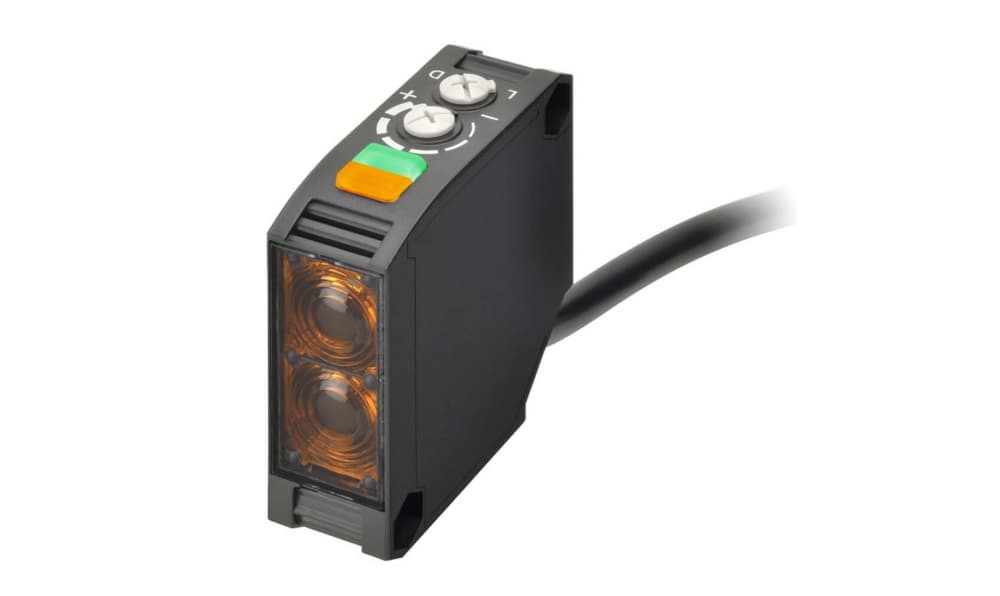

Photoelectric sensor, square body, red LED, retro-reflective, polarized, 6m, AC/DC, relay, L-ON/D-ON selectable, 2m cable

Availability: Sold out

Detailed Description
Specifications
Features

E3JK Photoelectric Senors with Built-in Power Supply

The E3JK series of photoelectric sensors from Omron have a built in power supply. This series of photoelectric sensors have a high power and visible red LED for all models enabling easy alignment and long sensing distance.

Relay output (all voltage)
Red LED that makes the spot visible
Large indicators that can be seen even from a distance
Improved operability, enlarged sensitivity adjuster and operation selector
ABS housing

OMRON Photoelectric Sensor, LED Beam, 20ms Response Time - E3JK Series - E3JK-RR12 2M

Be sure your conveying processes hit their target with this photoelectric sensor from OMRON. You can manually adjust the sensing distance between 100mm and 10m to accurately work with your application. A visible red LED beam makes alignment a walk in the park. The device uses a retroreflective detection method, so there's no need to install a separate receiver. As it has a polarised light and an MSR function, it can reliably pick out shiny objects. Dark-on and light-on modes mean you can signal the presence or absence of items. A handy relay output enables you to hook this sensor up to a motor or lights, so your automation equipment works seamlessly together.

Features & Benefits

• 20ms response time for speedy processes
• 2m cable length for connection flexibility
• Rugged ABS housing and touch-free sensing reduces wear and tear
• Compact dimensions of 52 (L) x 18 (W) x 50mm (D) maximises available space

Applications

• Food and beverage production
• Agricultural machinery
• Warehousing and logistics industry
• Building infrastructure

What power supply voltage does this photoelectric sensor need?

Thanks to a selectable power supply, this sensor works with voltages between 24 and 240V AC.

Brand	Omron
Sensor Style	Block
Detection Type	Retroreflective
Detection Range	10 mm → 10 m
Output Type	Relay
Electrical Connection	5 Wire Cable 2 m
Switching Mode	Light / Dark switching
Maximum AC Voltage	240V
Maximum DC Voltage	240V
Terminal Type	Wire Lead
Light Source	LED
IP Rating	IP64
Response Time	20 ms
Mounting Type	Flange Mount
Housing Material	ABS
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-25°C
Series	E3JK
Standards Met	CCC, CE

Photoelectric sensor, square body, red LED, retro-reflective, polarized, 6m, AC/DC, relay, L-ON/D-ON selectable, 2m cable
