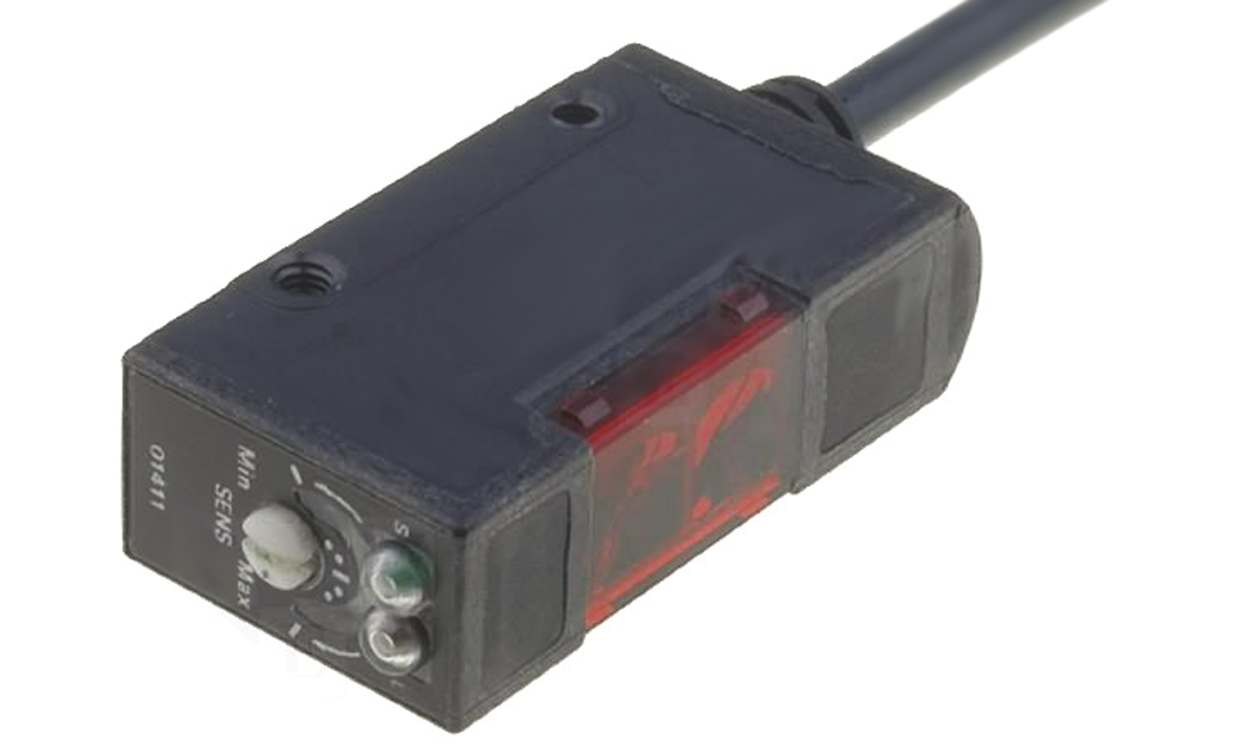

Name: Omron E3S-AD81, Diffuse Photoelectric Sensor, Block Sensor, 10 mm → 200 mm Detection Range
Brand: OMRON
SKU: E3S-AD81
Availability: OutOfStock

Omron E3S-AD81, Diffuse Photoelectric Sensor, Block Sensor, 10 mm → 200 mm Detection Range

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E3S-AD81, Diffuse Photoelectric Sensor, Block Sensor, 10 mm → 200 mm Detection Range

Part Number : E3S-AD81

Availability: Sold out

Detailed Description
Specifications

E3S-A High Performance Sensors

Horizontal and vertical format versions
PBT Housing, denaturated polyallyate lens, IP67 sealed
PNP and NPN output configurations
Light ON/dark ON operation
Two-turn sensitivity adjustor
Light and stability LED indication
Operating temperature range -25° → +55°C
Short circuit and reverse polarity protection
Mounting bracket with fasteners included

Omron E3S Series Photoelectric Sensor, 10 mm to 200 mm Detection Range, PNP Output Type - E3S-AD81

This photoelectric sensor is designed to provide reliable sensing solutions for various industrial applications. Utilising diffuse sensor technology, it operates effectively within a detection range of 10mm to 200 mm. The pre-wired electrical connection adds convenience to installation, and the robust housing material ensures durability. With an IP67 rating, this sensor is optimised for performance even in challenging environments.

Features & Benefits

• High-performance sensors offering accuracy in detection
• PNP output type for versatile industrial integration
• Efficient response time of 500 μs for swift operations
• Red LED light source enhances visibility and performance
• Operating temperature range from -25 °C to +55 °C supports diverse conditions
• Block style design simplifies mounting and installation

Applications

• Used with machinery for precise object detection
• Utilised in automation systems for effective control processes
• Employed in packaging lines for product monitoring
• Applied in conveyor systems to detect items at varying distances

What are the installation requirements for optimising performance?

It is recommended to ensure the sensor is mounted securely in a location free from interference. The pre-wired connection aids in streamlining setup, simplifying integration into existing systems.

How does the light source contribute to the sensor's functionality?

The red LED light source improves detection reliability, providing increased visibility for the sensor to accurately detect objects within its specified range.

What is the significance of the IP67 rating for this sensor?

The IP67 rating signifies that the sensor is protected against dust ingress and can withstand submersion in water up to 1 metre deep for a duration of 30 minutes, making it suitable for harsh industrial environments.

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	10 mm → 200 mm
Output Type	PNP
Electrical Connection	Pre-Wired
Maximum DC Voltage	30V
Terminal Type	Pre-Wired
Light Source	Red LED
IP Rating	IP67
Maximum Current	100 mA
Response Time	500 μs
Series	E3S
Maximum Operating Temperature	+55°C
Housing Material	PBT
Minimum Operating Temperature	-25°C
