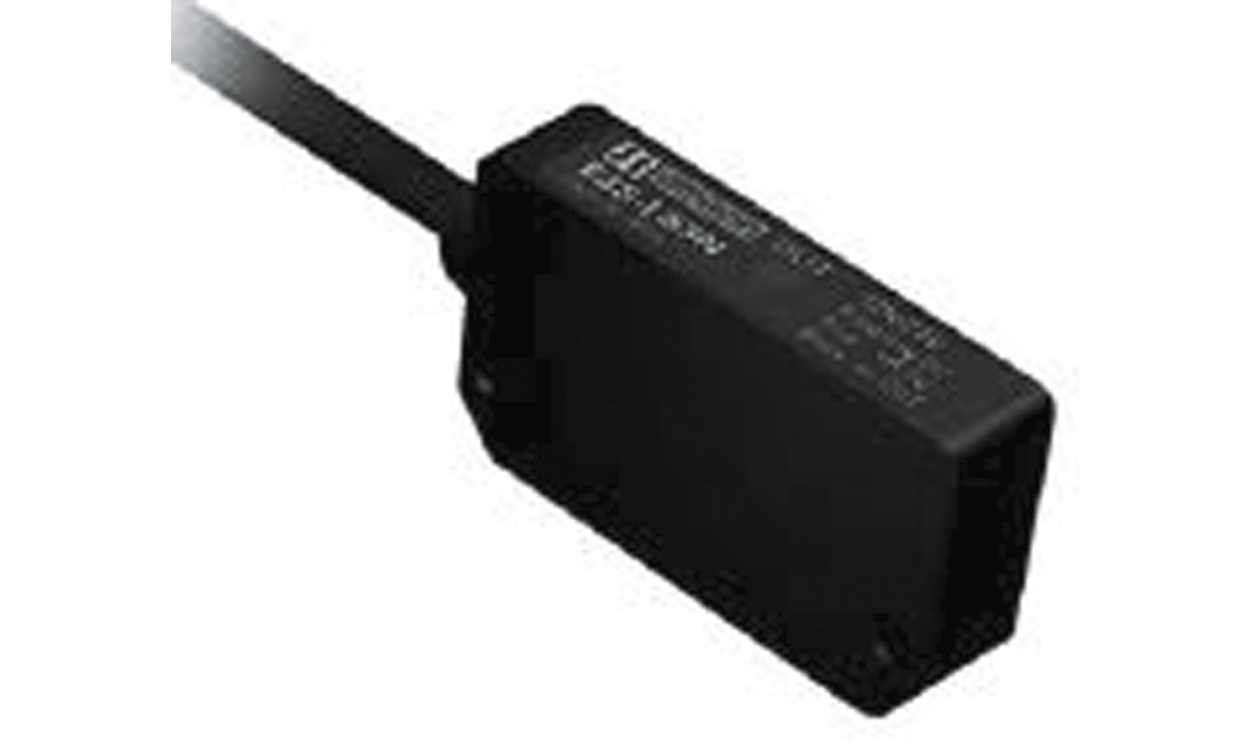

Omron E3S-LS3N 2M, Diffuse Photoelectric Sensor, Block Sensor, 20 mm → 35 mm Detection Range

Part Number : E3S-LS3N 2M

Availability: Sold out

Detailed Description
Specifications

E3S-LS Focusable Sensors

The E2S-LS photoelectric sensors are ideal for precise detection of level/height, edges, small holes and openings, objects touching one another and objects inside transparent covers.

Sensing distance adjustable by single turn adjuster
Zinc diecast case and polycarbonate lens
Response time 1ms
Surge suppressor, output short-cut protection, power supply reverse polarity protection and mutual interference prevention
Light and stability LED indication
Mounting bracket, screws and instruction manual included

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	20 mm → 35 mm
Output Type	NPN
Electrical Connection	Pre-Wired Cable
Maximum DC Voltage	24V
Light Source	LED
IP Rating	IP40
Maximum Current	25 mA
Maximum Operating Temperature	+55°C
Series	E3S
Minimum Operating Temperature	-10°C
Housing Material	ABS
