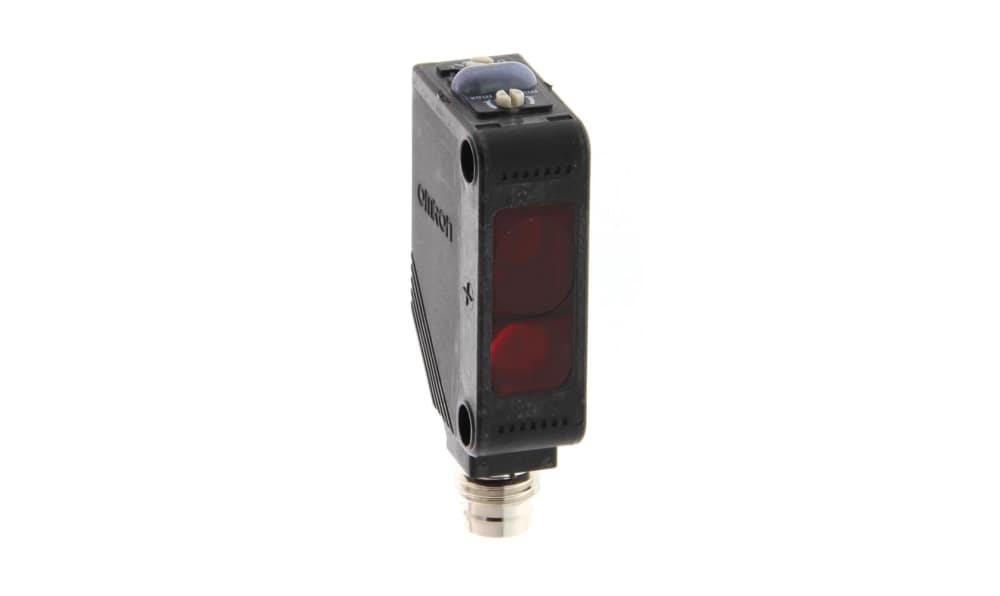

Omron E3Z-LS86, Background Suppression Distance Sensor, Block Sensor, 20 mm → 200 mm Detection Range

Name: Omron E3Z-LS86, Background Suppression Distance Sensor, Block Sensor, 20 mm → 200 mm Detection Range
Brand: OMRON
SKU: E3Z-LS86
Availability: OutOfStock

Part Number : E3Z-LS86

Photoelectric sensor, diffuse background suppression, 40-200mm, DC, 3-wire, PNP, M8 plug in (requires bracket)

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

E3Z-LS Distance Settable Sensors

The E3Z-LS range of photoelectric sensors are compact in design with a built in amplifier. E3Z-LS distance settable sensors are unaffected by colour or background whilst able to detect minute steps.

Simple positioning settings using a clear LED spot
Distance setting by 5 turn endless adjuster
Load power supply voltage: 26.4 Vdc max
Load current: 100 mA max
Open collector output
Reversed power supply polarity protection, Output short-circuit protection, Mutual interference prevention
IP67 rated

OMRON Distance Sensor, IP67 Rating, PNP Output Type - E3Z Series - E3Z-LS86

Ensure your processes go the distance with this photoelectric sensor from OMRON. It has a built-in amplifier to detect objects at distances between 20 and 200mm, so it's ideal for use with conveyor systems. Background suppression means the sensor focuses its attention on moving items rather than the conveyor belt itself. This nifty function also helps it identify height differences in your targets. The detection distance and a choice of dark-on and light-on operating modes are selectable via a switch on the housing, so you benefit from speedy configuration. As the device is suitable for bracket and post-mounting, you'll have no trouble getting it into the right position.

Features & Benefits

• PBT housing for strength and resistance to wear and impacts
• Quick 1ms response time to handle fast-paced production lines
• Uses an industry-standard M8 connector for convenience
• Measures 31 (L) x 10.8 (W) x 20mm (D), so it doesn't need a lot of space

Applications

• Industrial automation
• Packaging systems
• Paper mills
• Parcel depots

Can I use this distance sensor in harsh conditions?

Yes. This unit has an IP67 rating, meaning it's dust-tight and resistant to temporary immersion in water.

Brand	Omron
Sensor Style	Block
Detection Type	Background Suppression
Detection Range	20 mm → 200 mm
Output Type	PNP
Electrical Connection	M8 4 Pin Connector
Switching Mode	Light / Dark switching
Maximum DC Voltage	26.4V
Light Source	LED
IP Rating	IP67
Maximum Current	100 mA
Response Time	1 ms
Series	E3Z
Minimum Operating Temperature	-25°C
Housing Material	PBT
Maximum Operating Temperature	+55°C
Mounting Type	Flange Mount
Standards Met	CE

Photoelectric sensor, diffuse background suppression, 40-200mm, DC, 3-wire, PNP, M8 plug in (requires bracket)

Omron E3Z-LS86, Background Suppression Distance Sensor, Block Sensor, 20 mm → 200 mm Detection Range

DOWNLOAD CATALOG

E3Z-LS86 Brochure A700000009869261

E3Z-LS86 Manual A700000009869265
