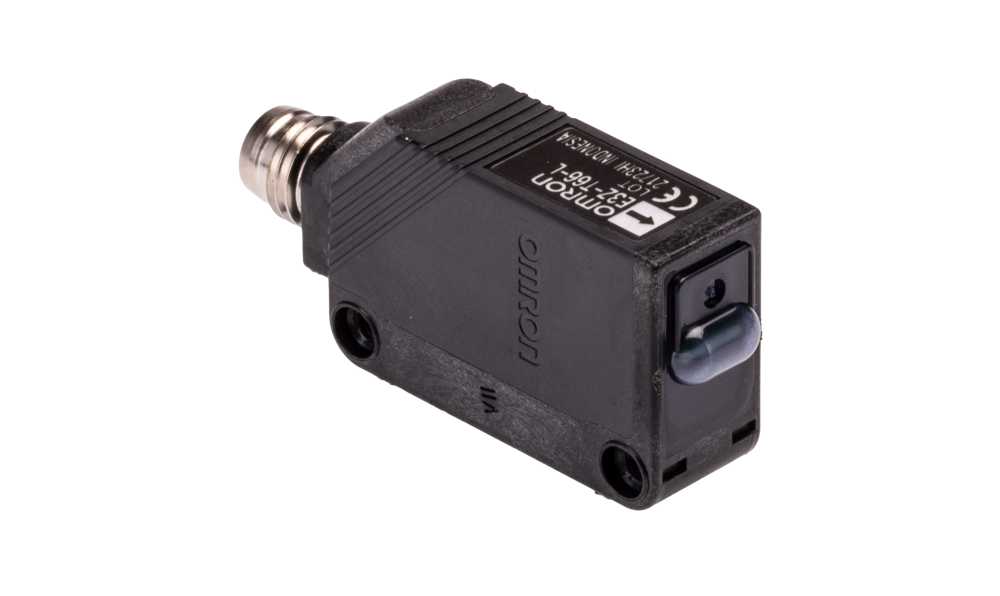

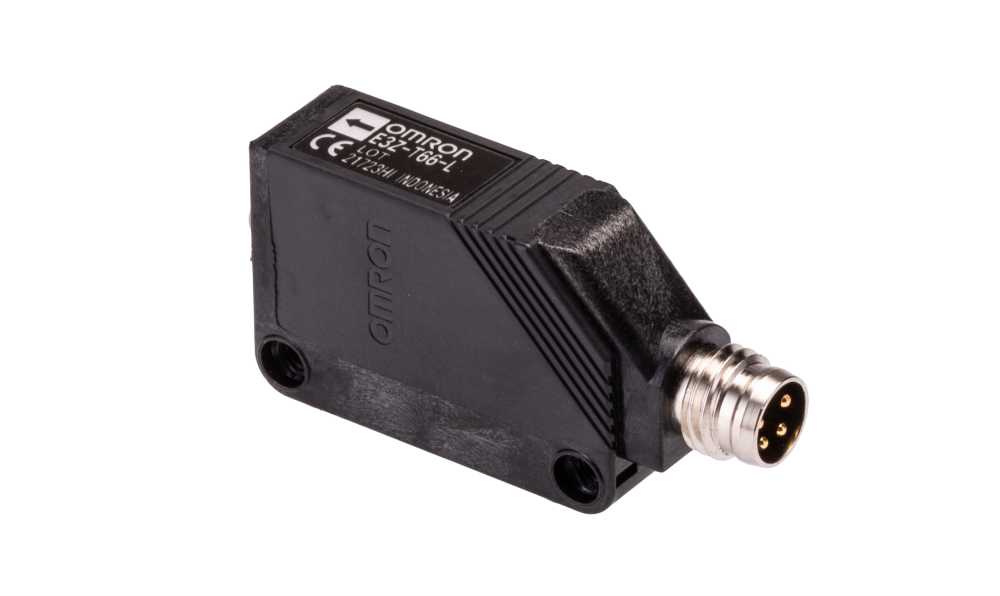

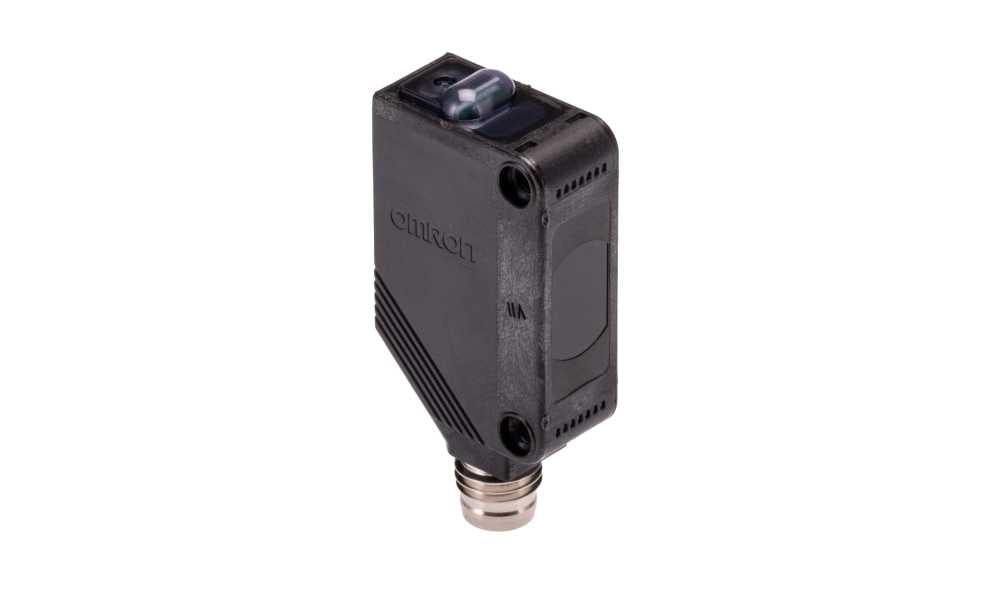

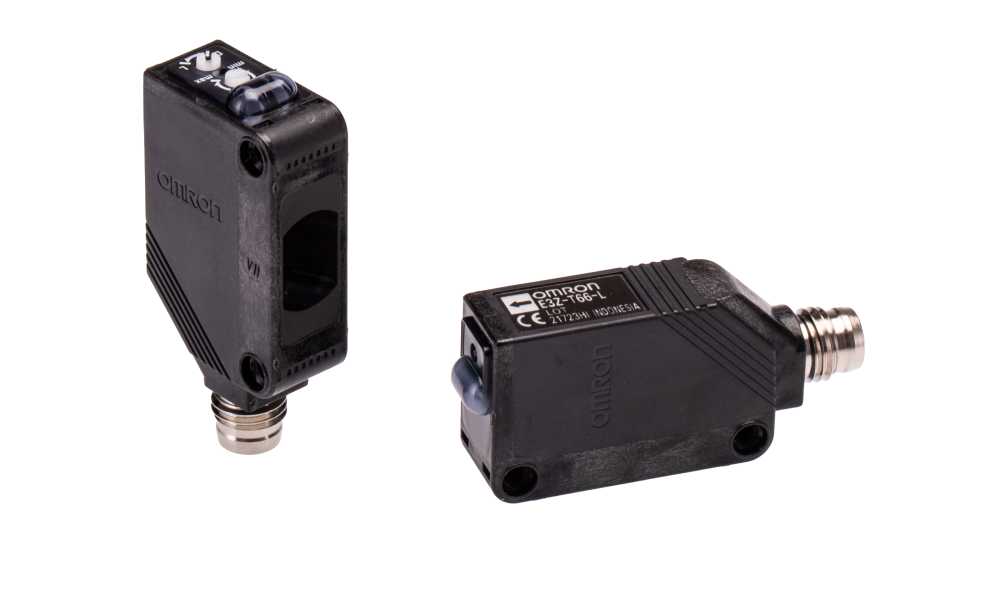

OMRON E3Z-T66 | Through-Beam Photoelectric Sensor | 15 m, NPN, M8 Connector
Offering an NPN output, the OMRON E3Z-T66 is a square through-beam photoelectric sensor rated for a 15 m detection range. The unit terminates in an M8 connector, uses an infrared LED light source and carries an IP67 rating.
- Supply up to 24 V DC
- Max. current 35 mA
- Response time 1 ms
- Operating temperature -40 °C to +55 °C
- PBT housing
- E3Z series
- Detailed Description
- Specifications
- Downloads
Omron E3Z Series Photoelectric Sensor, 15m Detection Range, IP67 - E3Z-T66
Features & Benefits
• IP67 rating provides protection from dust and moisture
• Fast response time of 1ms enhances operational efficiency
• Temperature range from -40°C to +55°C supports a variety of applications
Applications
• Employed in packaging machines for product counting
• Suitable for robotics in automation systems
• Ideal for monitoring materials in assembly lines
How does the sensor perform in extreme temperatures?
What type of electrical connection is required?
Is this sensor compatible with all automation systems?
What maintenance is needed for optimal performance?
| Brand | Omron |
| Series | E3Z |
| Detection Type | Through Beam |
| Detection Range | 15 m (49.2 ft) |
| Sensor Style | Square |
| Output Type | NPN |
| Electrical Connection | M8 Connector |
| Light Source | Infrared LED |
| Response Time | 1 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP67 |
| Maximum Current | 35 mA |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | 4 Pin Connector |
