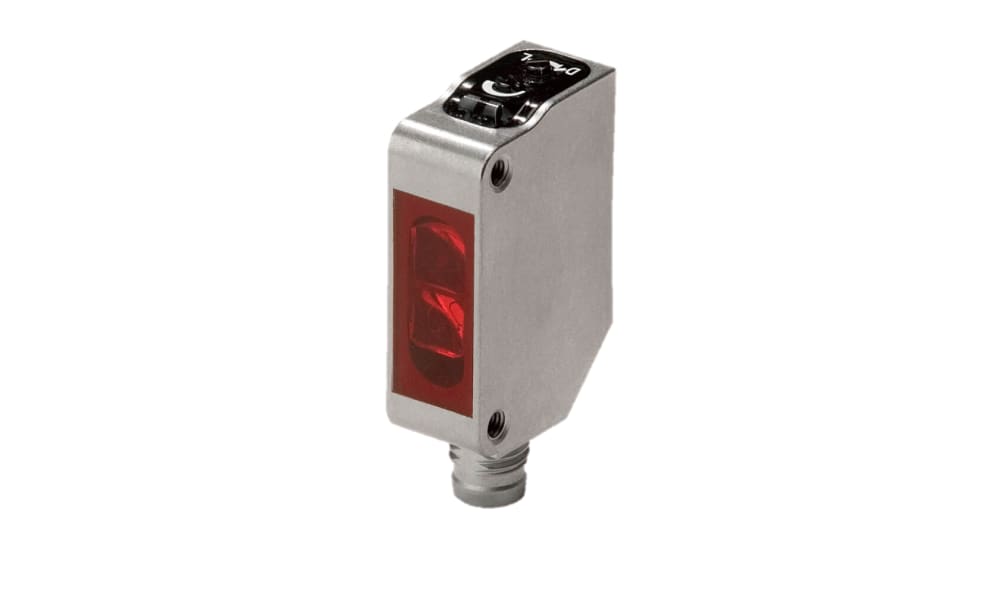

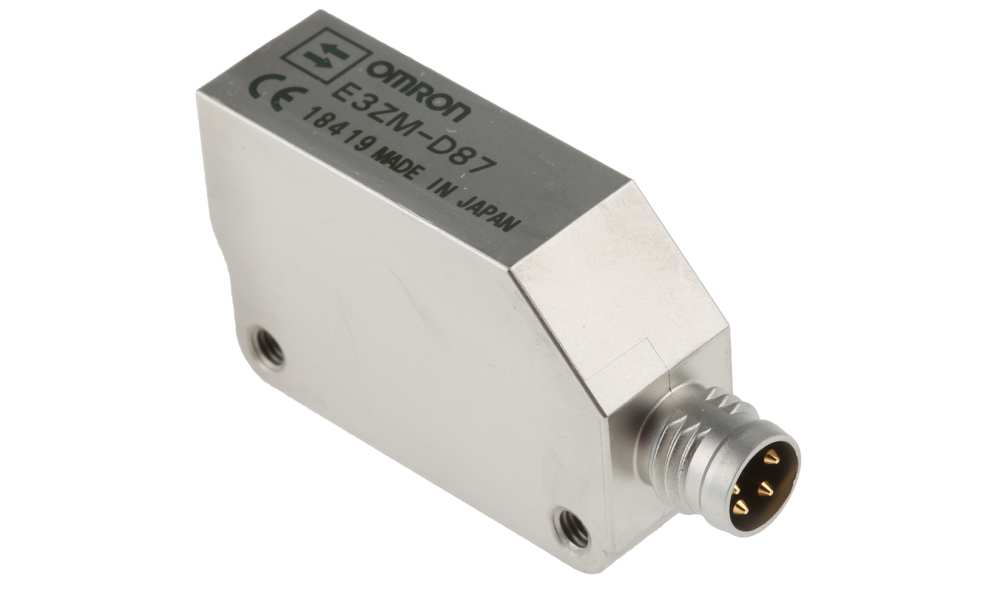

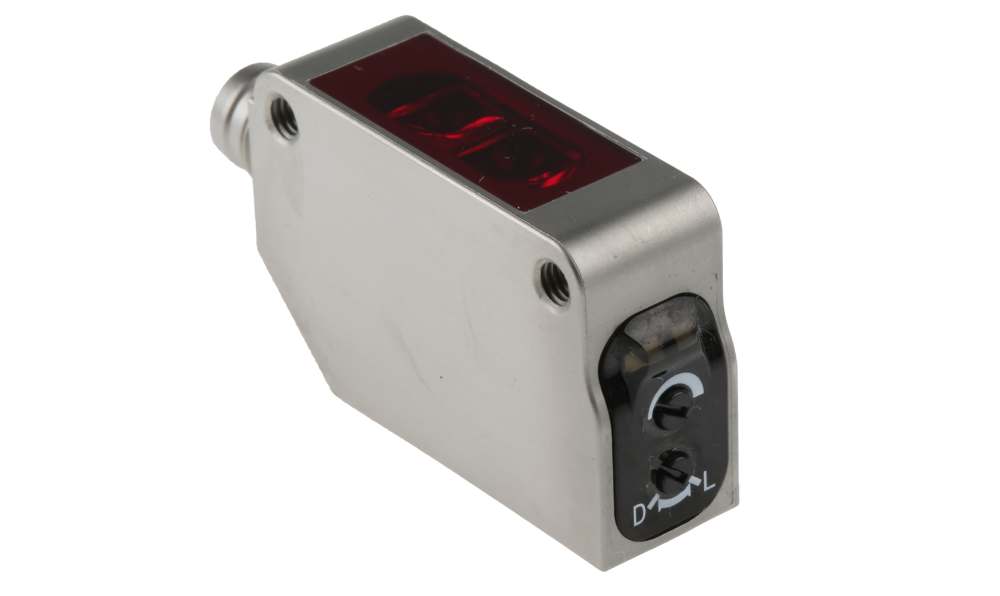

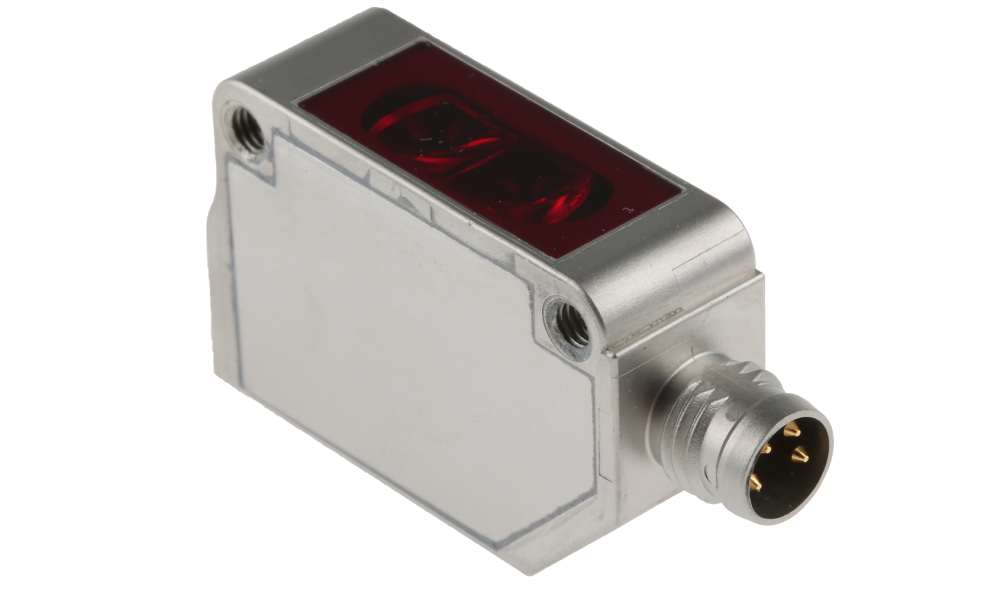

Omron E3ZM-D87, Diffuse Photoelectric Sensor, Block Sensor, 1 m Detection Range

Part Number : E3ZM-D87

Availability: Sold out

Detailed Description
Specifications

Omron E3ZM Series Photoelectric Sensor, 1m Detection Range, IP69K - E3ZM-D87

This photoelectric sensor is designed for industrial automation applications, offering key detection capabilities in challenging conditions. It delivers consistent performance with high resistance to harsh cleaning environments, making it suitable for the food processing industry and other sectors with stringent hygiene requirements.

Features & Benefits

• Stainless steel housing for enhanced durability and chemical resistance
• IP67 and IP69K ratings provide protection against dust and water
• Rapid response time of 1ms allows quick detection
• Suitable for high-temperature applications with a maximum temperature of +55°C
• Utilises infrared detection for dependable object sensing

Applications

• Used in food processing machinery for effective object detection
• Ideal for environments requiring frequent cleaning and disinfection
• Employed in conveying systems to monitor product flow
• Applied in packaging and bottling lines to prevent contamination
• Useful in automated assembly lines for precise control

What is the installation process for this sensor?

Installation involves securely mounting the sensor using a bracket and connecting the M8 4-pin connector to the appropriate power supply.

How does it respond to different object materials?

It is designed to detect a variety of materials, including opaque objects, with sensing distances varying based on surface reflectivity.

Is it compatible with existing automation systems?

Yes, its PNP output facilitates compatibility with most industrial automation systems.

What maintenance is required for optimal performance?

Regular visual inspections to ensure cleanliness and functionality are advised, particularly in hygienic environments.

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	1 m
Output Type	PNP
Electrical Connection	M8 4 Pin Connector
Maximum DC Voltage	30V
Light Source	Infrared
IP Rating	IP69K
Maximum Current	100 mA
Response Time	1 ms
Housing Material	Stainless Steel
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-25°C
Series	E3ZM
