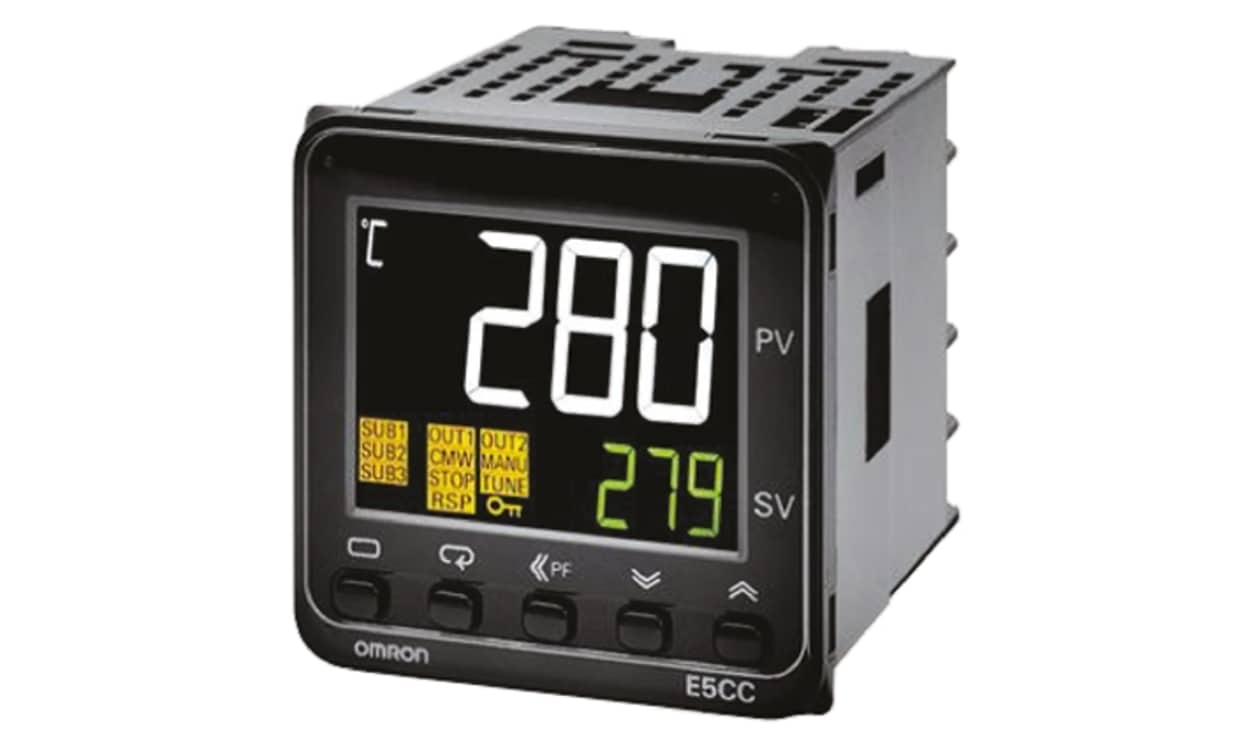

OMRON E5CC-QQ3A5M-001 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC

Name: OMRON E5CC-QQ3A5M-001 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC
Brand: OMRON
SKU: E5CC-QQ3A5M-001
Availability: InStock

Part Number : E5CC-QQ3A5M-001

The OMRON E5CC-QQ3A5M-001 PID Temperature Controller operates on 100-240 V AC and provides an SSR (logic) output; it comes in a 48 x 48 mm format. The E5CC-QQ3A5M-001 accepts universal input (thermocouple, Pt100, analogue) and supports ON/OFF, PID and 2-PID control.

2 outputs
Panel depth of 72.1 mm
Wiring: screw terminal block
Control output: SSR (logic)
Measuring ranges: thermocouple -200 to +2300 °C, platinum resistance thermometer -200 to +850 °C, infrared sensor 0 to +260 °C, 0 to 10 V and 0 to 20 mA
Display colour: white

Availability: low stock

Detailed Description
Specifications
Downloads

E5CC Digital Temperature Controller

Omron’s E5CC range of temperature controllers are a premium PID based controller that support a wide variety of applications. Covering a comprehensive array of sensor inputs including a universal input, Thermocouple, PT as well as Analogue current/voltage inputs. The E5CC range of temperature controllers offer various configurations to exactly suit your program and application requirements for a reliable and easy to use system.

The controller’s compact 48 x 48 mm unit is an industry standard size and can fit in to most typical system units for a fast and effortless installation. Featuring a large white PV display, the E5CC’s large 15.2 mm LED characters provide increased visibility in any application.

PID control within the E5CC range can be set to separately control heating and cooling processes. This functionality allows for programming to control different systems with response characteristics specified to each application. Auto-tuning of PID control functions allow initial parameters to be configured quickly and easily for smooth fast installation and commissioning. The E5CC range also features standard ON/OFF control for more basic applications.

Features and Benefits

• Large white LCD display
• 15.2 mm characters
• Dual PV/SV 4-digit display
• 50 ms high-speed sampling
• Short 60 mm housing case
• Easy connection to PLC with communications that require no programming
• Component communications can be used to link temperature controllers to each other
• Easy set up with CX-Thermo software (Windows XP, 7) without additional power supply via USB conversion cable

Approvals

The E5CC-QQ3A5M-001 model from Omron features an SSR voltage output as well as a universal input. The controller also features 3 auxiliary outputs for expansion to suit almost any heating or cooling system. The screw terminals of the controller provide secure and easy to use connectivity to peripherals for a range of application uses.

Omron's E5CC-QQ3A5M-001 model temperature controller also requires a PSU power supply to operate.100 - 240 V ac

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	2
Control Type	ON/OFF, PID, 2-PID Controller
Series	E5CC
Range	0 → +260 (Infrared Temperature Sensor) °C, 0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Panel Depth	72.1mm
Display Colour	White
Termination Type	Screw terminal block

OMRON E5CC-QQ3A5M-001 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC
