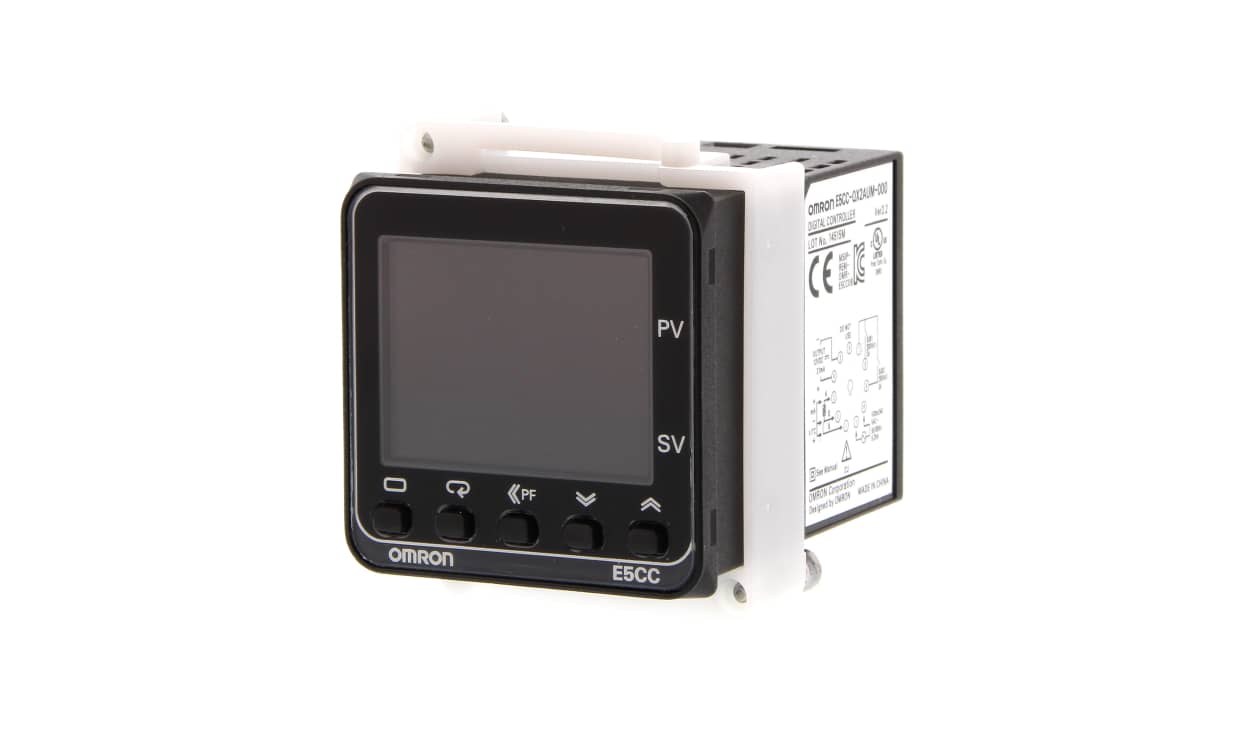

OMRON E5CC-RW2AUM-000 | E5CC PID Temperature Controller | Relay Output, 100-240 V AC

Name: OMRON E5CC-RW2AUM-000 | E5CC PID Temperature Controller | Relay Output, 100-240 V AC
Brand: OMRON
SKU: E5CC-RW2AUM-000
Availability: InStock

Part Number : E5CC-RW2AUM-000

This E5CC PID Temperature Controller from OMRON, part number E5CC-RW2AUM-000, pairs a relay output with a 100-240 V AC supply. Supported control on the E5CC-RW2AUM-000: ON/OFF, PID and 2-PID control; sensor connection is via universal input (thermocouple, Pt100, analogue).

3 outputs with 2 inputs
Output type: relay
Power supply: 100-240 V AC
Sensor input: universal (thermocouple, Pt100, analogue)
Control modes: ON/OFF, PID and 2-PID
Connections: screw terminal block

Availability: low stock

Detailed Description
Specifications
Features
Downloads

Omron E5CC Series PID Temperature Controller, 48 x 48mm size, 100 to 240V AC Supply Voltage - E5CC-RW2AUM-000

This PID temperature controller is a versatile device designed for precise temperature management in various industrial settings. With a compact size of 48 x 48 mm, it offers a panel-mount option alongside a user-friendly interface. Its robust design supports high accuracy temperature control, making it an essential tool for automation, electronics, and mechanical industries.

Features & Benefits

• Supports universal temperature input for flexible sensor compatibility
• Multiple output types, including relay and linear current, enhance usability
• Robust performance across a temperature range of -10 to 55 °C
• Compact design allows seamless installation in space-constrained environments

Applications

• Ideal for controlling heating systems in industrial processes
• Used for precise temperature regulation in laboratory experiments
• Applicable in HVAC systems for improved climate control
• Suitable for automation tasks in manufacturing
• Functions effectively with PT100 thermocouples for diverse temperature monitoring

How does the high-speed sampling contribute to its performance?

The high-speed sampling at 50ms enables the controller to quickly adjust to temperature fluctuations, which enhances system stability and reduces overshoot.

What types of outputs can be configured with this device?

The controller offers various output options, including relay outputs, voltage outputs for driving SSR, and linear current outputs, allowing for versatile connectivity in different applications.

Can this temperature controller accommodate various sensor types?

Yes, it supports a wide array of sensors, including thermocouples, platinum resistance thermometers, and analogue inputs, making it adaptable for diverse monitoring needs.

How easy is it to integrate this controller with existing systems?

Integration is straightforward due to its programless communication capabilities, as it can connect directly to PLCs without extensive programming, streamlining the setup process.

What safety features are included to prevent malfunction?

The controller includes built-in alarms for heater burnout and SSR failure, which help to monitor operational integrity and prevent potential hazards from occurring.

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	96 x 96mm
Number of Inputs	2
Number of Outputs	3
Control Type	ON/OFF, PID, 2-PID Controller
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Series	E5CC
Termination Type	Screw terminal block

Ent. Universal 2 Alarmes Saída Relé 100-240Vac 48x48

OMRON E5CC-RW2AUM-000 | E5CC PID Temperature Controller | Relay Output, 100-240 V AC

DOWNLOAD CATALOG

E5CC-RW2AUM-000 Brochure - E5CC Series A700000014359980

E5CC-RW2AUM-000 Instruction Sheet - E5CC-RW2AUM-000 A700000014360001
