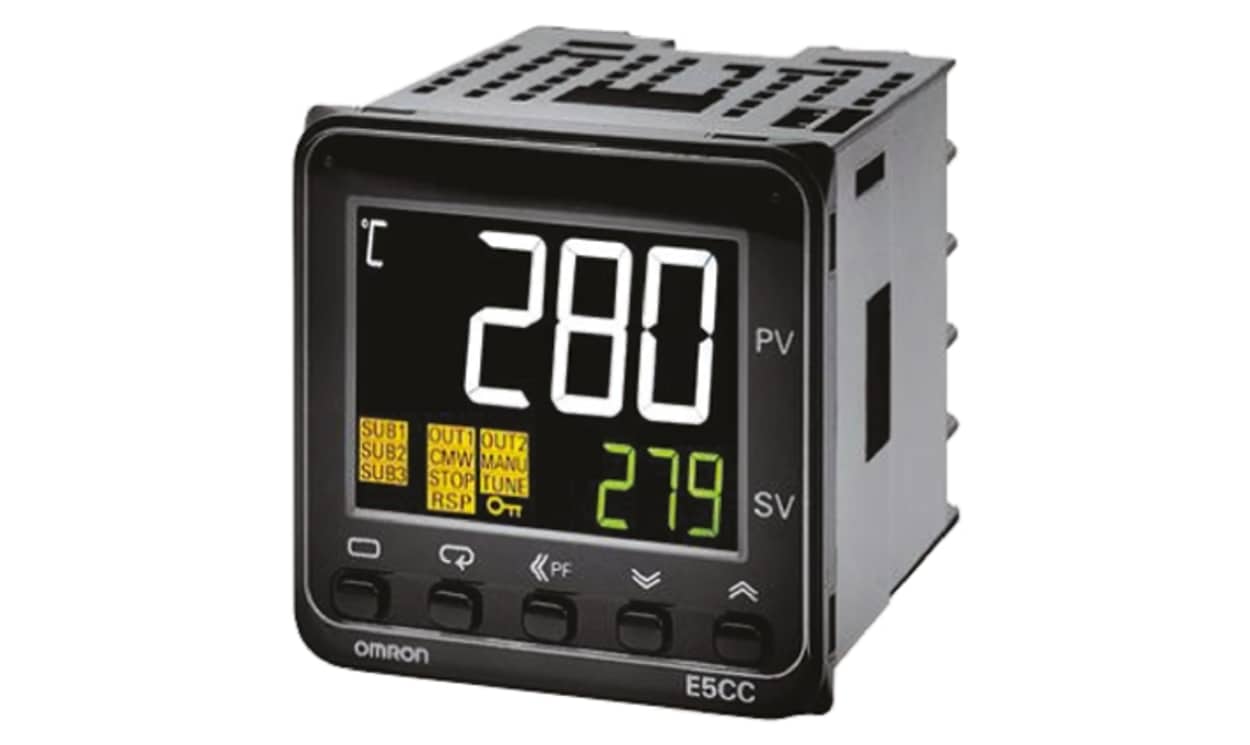

OMRON E5CC-RX3A5M-007 | E5CC PID Temperature Controller | Relay Output, 100-240 V AC

Name: OMRON E5CC-RX3A5M-007 | E5CC PID Temperature Controller | Relay Output, 100-240 V AC
Brand: OMRON
SKU: E5CC-RX3A5M-007
Availability: InStock

Part Number : E5CC-RX3A5M-007

This E5CC PID Temperature Controller from OMRON, part number E5CC-RX3A5M-007, pairs a relay output with a 100-240 V AC supply. Supported control on the E5CC-RX3A5M-007: ON/OFF, PID and 2-PID control; sensor connection is via universal input (thermocouple, Pt100, analogue).

1 output
Listed display colour: white
Depth behind panel: 72.1 mm
Connections: screw terminal block
Output type: relay
Listed input ranges: thermocouple -200 to +2300 °C, platinum resistance thermometer -200 to +850 °C, infrared sensor 0 to +260 °C, 0 to 10 V and 0 to 20 mA

Availability: low stock

Detailed Description
Specifications
Downloads

E5CC Digital Temperature Controller

Omron’s E5CC range of temperature controllers are a premium PID based controller that support a wide variety of applications. Covering a comprehensive array of sensor inputs including a universal input, Thermocouple, PT as well as Analogue current/voltage inputs. The E5CC range of temperature controllers offer various configurations to exactly suit your program and application requirements for a reliable and easy to use system.

The controller’s compact 48 x 48 mm unit is an industry standard size and can fit in to most typical system units for a fast and effortless installation. Featuring a large white PV display, the E5CC’s large 15.2 mm LED characters provide increased visibility in any application.

PID control within the E5CC range can be set to separately control heating and cooling processes. This functionality allows for programming to control different systems with response characteristics specified to each application. Auto-tuning of PID control functions allow initial parameters to be configured quickly and easily for smooth fast installation and commissioning. The E5CC range also features standard ON/OFF control for more basic applications.

Features and Benefits

• Large white LCD display
• 15.2 mm characters
• Dual PV/SV 4-digit display
• 50 ms high-speed sampling
• Short 60 mm housing case
• Easy connection to PLC with communications that require no programming
• Component communications can be used to link temperature controllers to each other
• Easy set up with CX-Thermo software (Windows XP, 7) without additional power supply via USB conversion cable

Approvals

The E5CC-RX3A5M-007 model from Omron features a relay output as well as a universal input. The controller also features 3 auxiliary outputs for expansion to suit almost any heating or cooling system. The screw terminals of the controller provide secure and easy to use connectivity to peripherals for a range of application uses.

Omron's E5CC-RX3A5M-007 model temperature controller also requires a PSU power supply to operate.100 - 240 V ac

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	96 x 96mm
Number of Outputs	1
Control Type	ON/OFF, PID, 2-PID Controller
Range	0 → +260 (Infrared Temperature Sensor) °C, 0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Series	E5CC
Panel Depth	72.1mm
Display Colour	White
Termination Type	Screw terminal block

OMRON E5CC-RX3A5M-007 | E5CC PID Temperature Controller | Relay Output, 100-240 V AC
